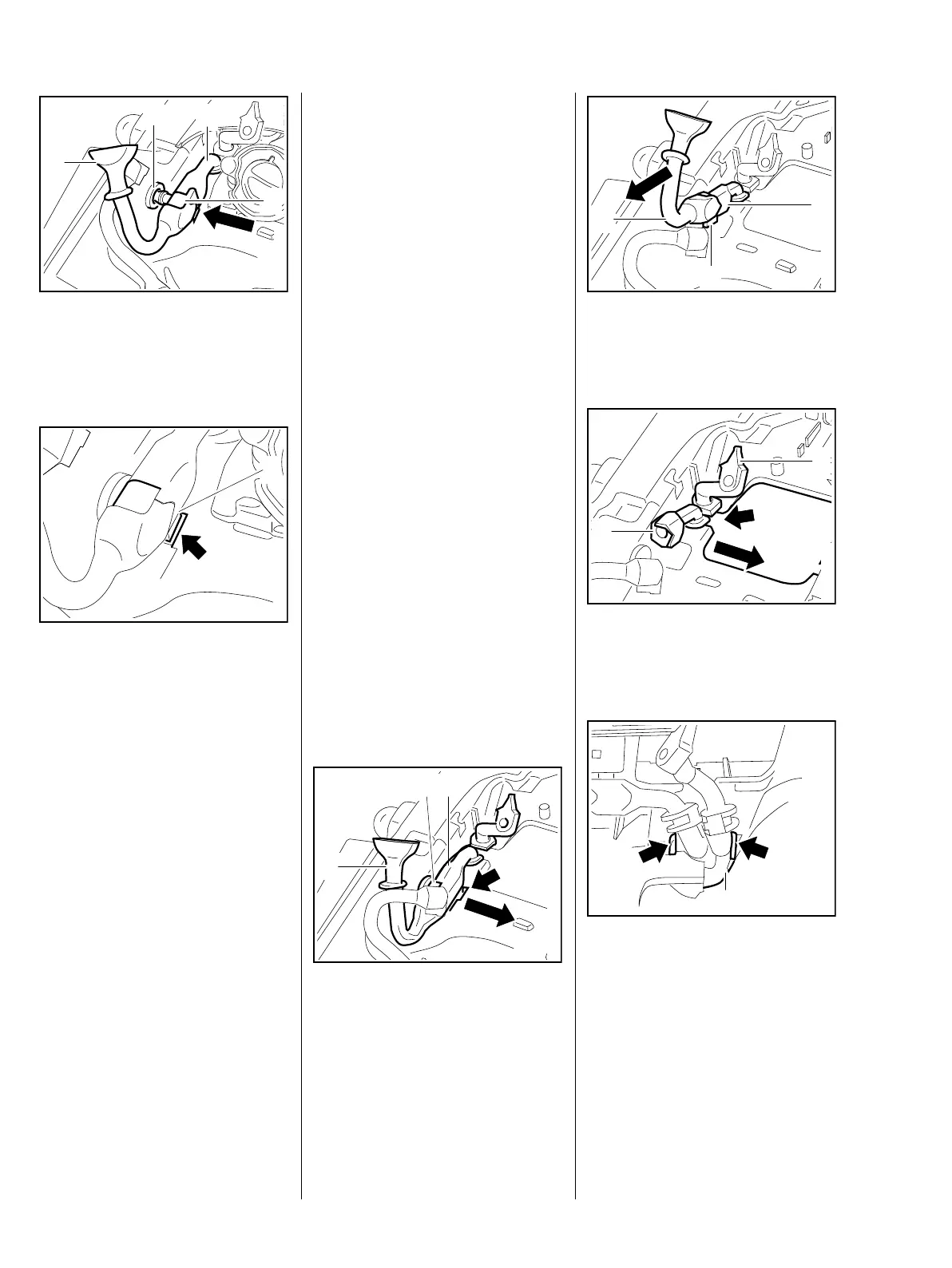

116 MS 201, MS 201 C, MS 201 T, MS 201 TC
: Push elbow connector (1) with
tank vent hose (2) and fuel return
hose (3) into grommet (4) as far
as stop.
The lug (1) must engage the seat
(arrow).
All models
Fit the handle housing,
MS 201 b 10.4,
MS 201 T b 10.5
Reassemble all other parts in the
reverse sequence.
7013RA460 TG
1
2
3
4
7013RA520 TG
1
12.10.4 Manual Fuel Pump with
Fuel Hoses
The removal and installation
procedure is the same on the
MS 201 and MS 201 T.
Remove the carburetor,
MS 201 b 12.4,
MS 201 T b 12.5
Remove the tank vent,
MS 201 b 12.9.2,
MS 201 T b 12.9.3
Loosen AV elements, remove
handle housing,
MS 201 b 10.4,
MS 201 T b 10.5
Remove the cover, b 12.8
Remove the impulse hose,
b 12.8.1
Remove cover from manifold,
b 12.8
Remove the manifold, b 12.8
Remove the tank housing,
b 12.11
: Lift elbow connector (1) with tank
vent hose (2) and fuel return
hose (3) clear of its seat (arrow)
and pry it out.
7013RA416 TG
2
31
: Pull the elbow connector (1) with
tank vent hose (2) out of the fuel
return hose (3).
: Pull the fuel hose (1) and fuel
return hose (2) out of the seat
(arrow).
: Viewed from inside the tank
housing, squeeze the tabs
(arrows) together and push out
the fuel pump (1) with fuel hoses.
7013RA417 TG
2
1
3
7013RA418 TG
2
1
7013RA419 TG
1
