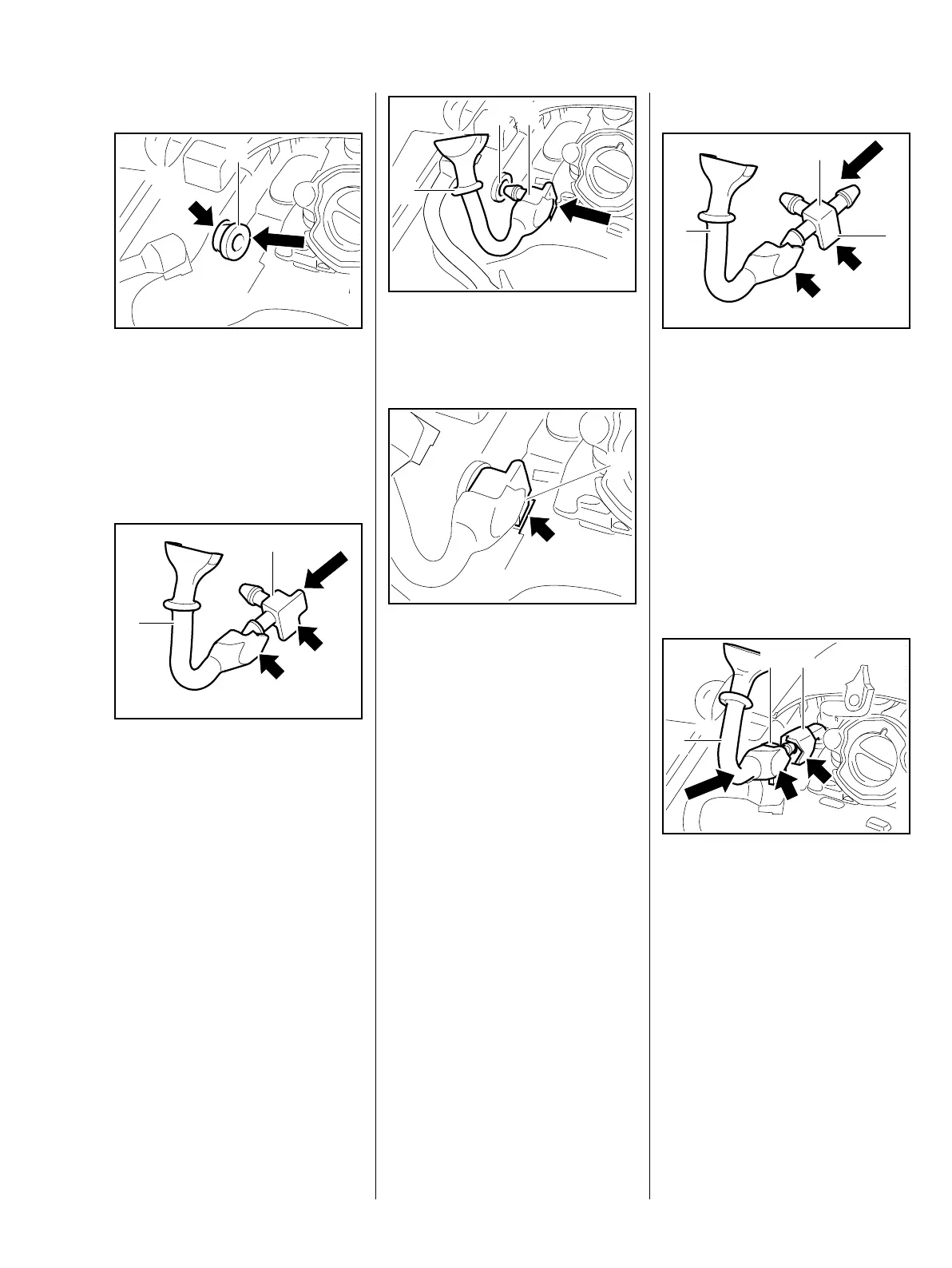

115MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing
– Coat grommet with STIHL press
fluid, b 14
: Push the grommet (1) into the
bore (arrow) in the tank housing
and make sure it is properly
seated.
– Coat inside of tank vent hose with
STIHL press fluid, b 14
: Position tank vent hose (1) and
elbow connector (2) so that the
flat face (arrow) is parallel to the
lug (arrow).
: Push the elbow connector (2)
into the tank vent hose (1) as far
as stop – the lug must locate flat
against the elbow connector.
7013RA455 TG
1
7013RA456 TG
2
1
: Push elbow connector (1) with
tank vent hose (2) into
grommet (3) as far as stop.
The lug (1) must engage the seat
(arrow).
2
7013RA457 TG
1
3
7013RA519 TG
1
Models with manual fuel pump
– Coat inside of tank vent hose with
STIHL press fluid, b 14
: Position tank vent hose (1) and
elbow connector (2) so that the
flat face (arrow) is parallel to the
lug (arrow) – the lug (3) must
point downwards.
: Push the elbow connector (2)
into the tank vent hose (1) as far
as stop – the lug must locate flat
against the elbow connector.
– Coat inside of fuel return hose
with STIHL press fluid, b 14
: Push the elbow connector (1)
with tank vent hose (2) into the
fuel return hose (3) – the two lugs
(arrows) must locate flat against
the elbow connector and mesh
with each other.
1
7013RA458 TG
2
3
7013RA459 TG
2
1 3
