102 MS 201, MS 201 C, MS 201 T, MS 201 TC
: Move the end cover (1) back and
forth until its pegs engage the
holes in the carburetor body.
– Check that the pump diaphragm
and gasket are properly seated.
: Insert and tighten down the
screw (2) firmly.
– Reassemble all other parts in the
reverse sequence.

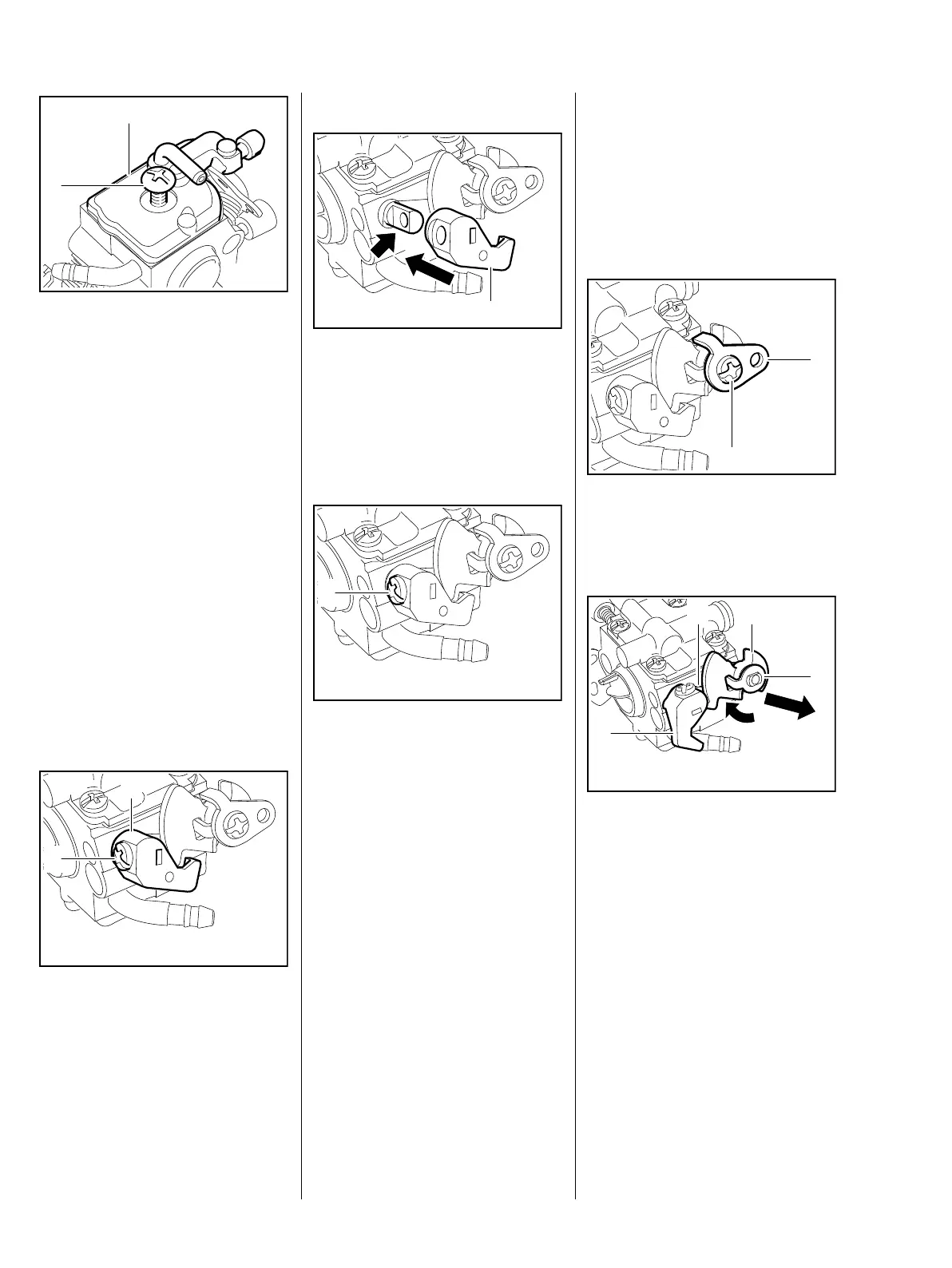

12.6.4 Lever on Throttle Shaft
– Troubleshooting, b 3.6
– Remove the carburetor,
MS 201 b 12.4,
MS 201 T b 12.5
: Take out the screw (1) and pull
off the lever (2).
– Inspect the lever and replace if
necessary.
1
7013RA330 TG
2
2
7013RA336 TG
1
Installing
: Position the lever (1) so that the
flat side (arrow) lines up with that
in the lever (1).
: Push home the lever (1) as far as
stop.
: Insert and tighten down the
screw (1) firmly.
– Check operation, b 12.6.5
– Reassemble all other parts in the
reverse sequence.
7013RA337 TG
1
7013RA338 TG
1
12.6.5 Levers on Choke Shaft
– Troubleshooting, b 3.6
– Remove the carburetor,
MS 201 b 12.4,
MS 201 T b 12.5
: Take out the screw (1).
: Pull off the lever (2).
: Set the throttle shaft lever (1) to
full throttle and hold it there.
: Pull out lever (2) with detent
lever (3) a little, rotate it
clockwise to relax the torsion
spring and then remove it.
: Remove the torsion spring (4).
– Check individual parts, replace if
necessary
2
7013RA331 TG
1
3
7013RA332 TG
1
