19MS 201, MS 201 C, MS 201 T, MS 201 TC
4.2 Clutch Drum
– Disengage the chain brake and
remove the chain sprocket cover,
bar and chain.
– Remove the clutch, b 4.1

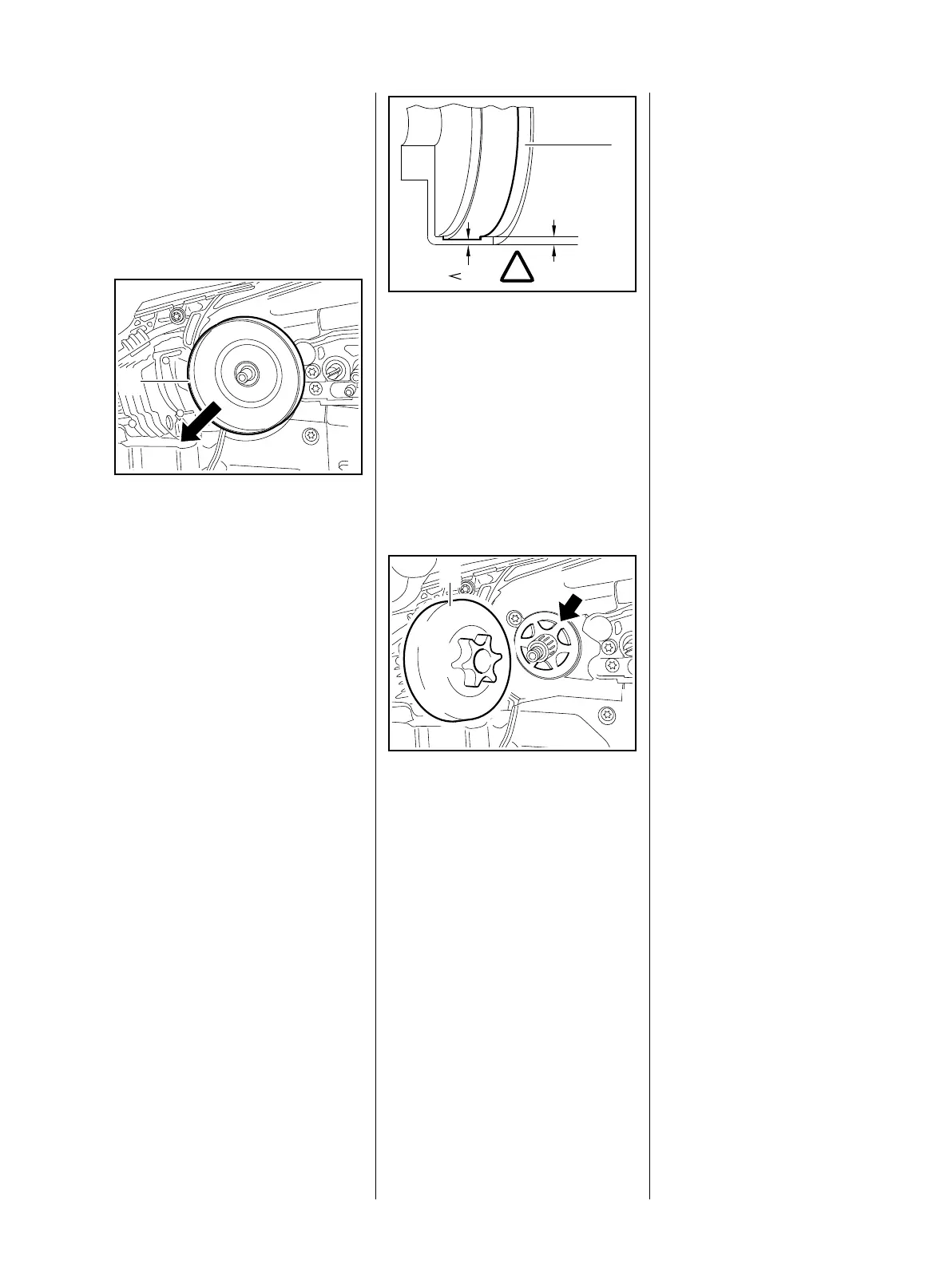

: Pull off the clutch drum (1).
– Remove the needle cage.
– Clean the needle cage and
crankshaft stub, b 14
– Lubricate needle cage and
crankshaft stub with STIHL
multipurpose grease, b 14
7013RA006 TG
1
– Inspect the clutch drum (1) for
signs of wear.
If there are signs of serious wear on
the inside diameter of the clutch
drum (1), check the remaining wall
thickness. If it is less than about
80% of the original thickness, install
a new clutch drum.
Installing
– Push the needle cage on to the
crankshaft stub.
: Fit the clutch drum (1) so that it
engages the worm gear (arrow).
– Install the clutch, b 4.1
– Reassemble all other parts in the
reverse sequence.
!
80%
100%
5902RA018 TG
1
7013RA007 TG
1
