69MS 201, MS 201 C, MS 201 T, MS 201 TC
Short circuit and ground wires must
ne properly seated in the handle
housing's guide.

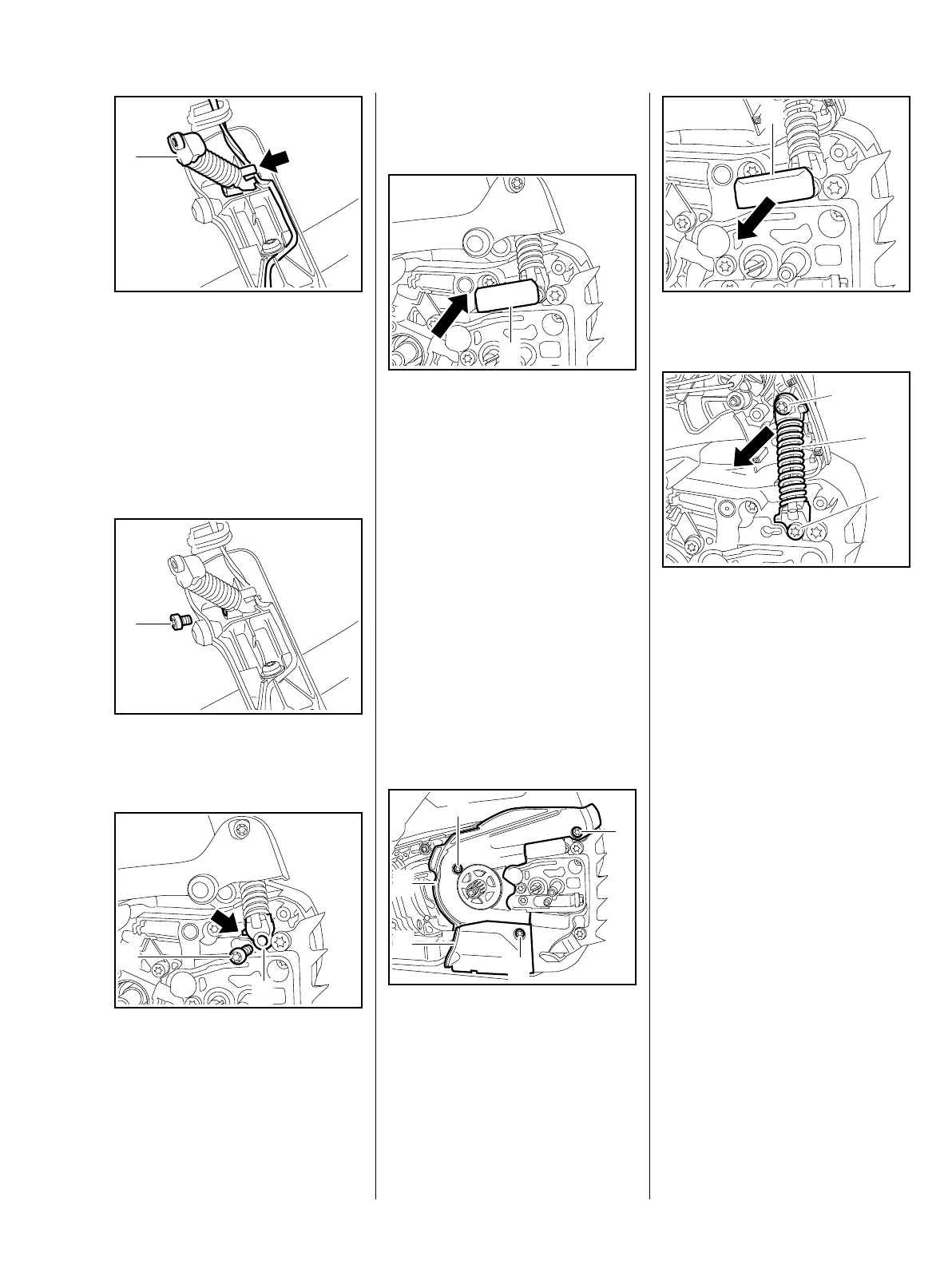

: Push the AV spring (1) into the
handle housing and position it so
that the lug holds the wires in the
guide
– do not pinch the wires.
: Insert and tighten down the
screw (1) firmly.
: Push bearing plug (1) with lug
into recess (arrow) in crankcase
as far as stop.
7013RA195 TG
1
7013RA195 TG
1
7013RA197 TG
2
1
: Coat the screw (2) with Loctite, fit
it and tighten it down firmly, b 14
– Push the bumper strip (1) into its
seat as far as stop.
– Reassemble all other parts in the
reverse sequence.
9.2.1 AV Spring on Oil Tank
(MS 201 T)
– Disengage the chain brake and
remove the chain sprocket cover,
bar and chain.
– Remove the handle molding,
b 10.3
– Remove the clutch drum, b 4.2
: Take out the screws (1).
: Remove covers (2) and (3).
7013RA198 TG
1
7013RA191 TG
1
1
1
2
3
: Pry out the bumper strip (1).
: Take out screws (1) and (2) –
screw (2) is secured with Loctite;
it may be necessary preheat it
with a hot air blower.
: Remove the AV spring (3), check
it and replace if necessary.
7013RA071 TG
1
7013RA072 TG
1
2
3
