9.5 Stop Buffer on Tank
Housing (MS 201)

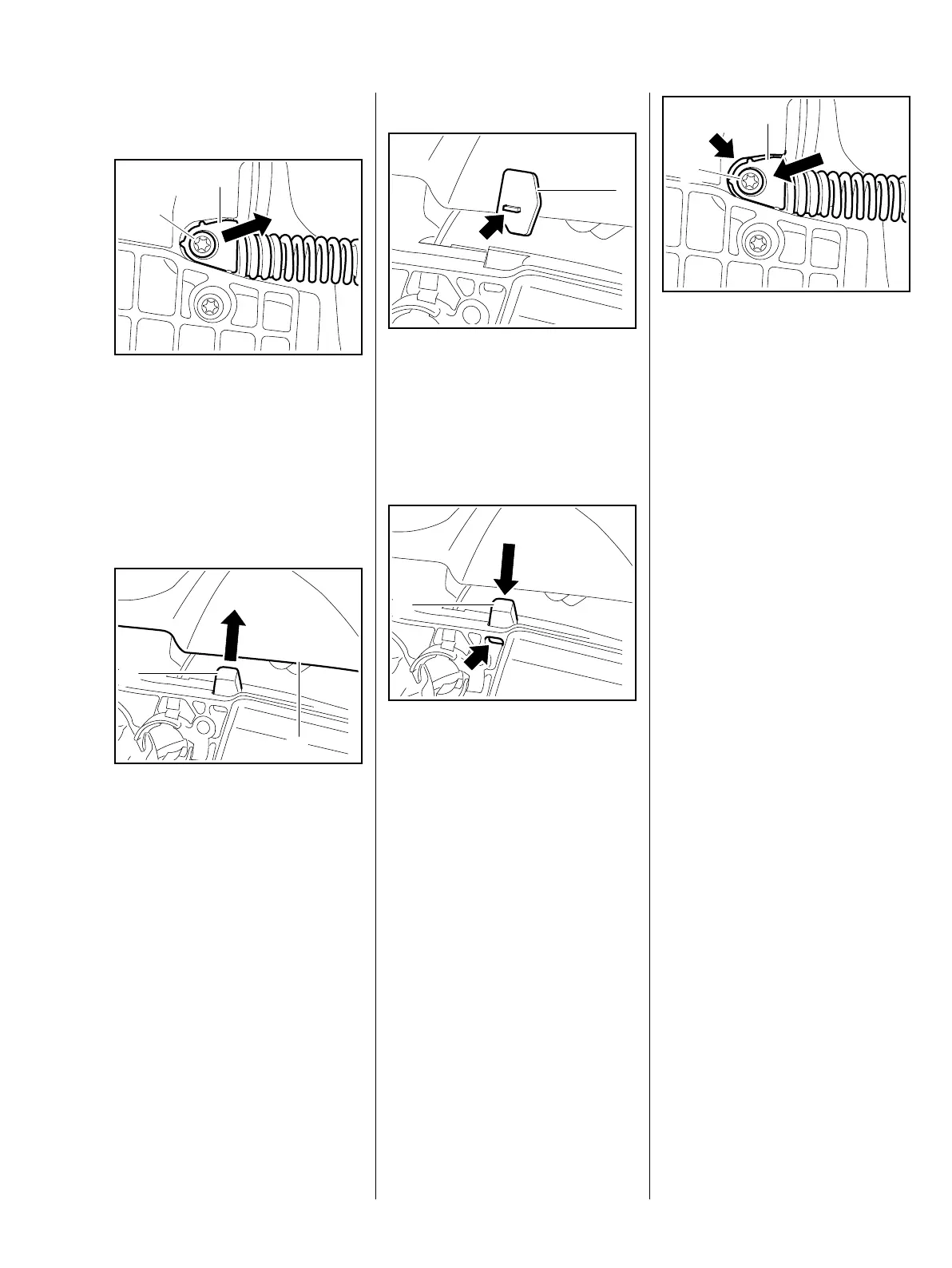

: Remove the screw (1) from the
underside of the machine.
– Screw (1) is secured with
Loctite. Preheat with a hot air
blower if necessary.
: Pull the bearing plug (2) out of its
seat.
: Lift the handle housing (1)
slightly.
: Pry out and replace the stop
buffer (2).
2
7013RA077 TG
1
2
7013RA091 TG
1
Installing
– Coat taper and lug of stop buffer
with STIHL press fluid, b 14
: Position the stop buffer (1) so
that the lug (arrow) points in the
direction of the fan housing.
: Push the stop buffer (1) into its
seat until the lug is firmly seated
in the opening (arrow).
7013RA092 TG
1
1
7013RA093 TG
: Push the bearing plug (1) into its
seat (arrow) on the underside of
the machine.
: Coat the screw (2) with Loctite, fit
it and tighten it down firmly, b 14
1
7013RA083 TG
2
