STIHL TS 400 8

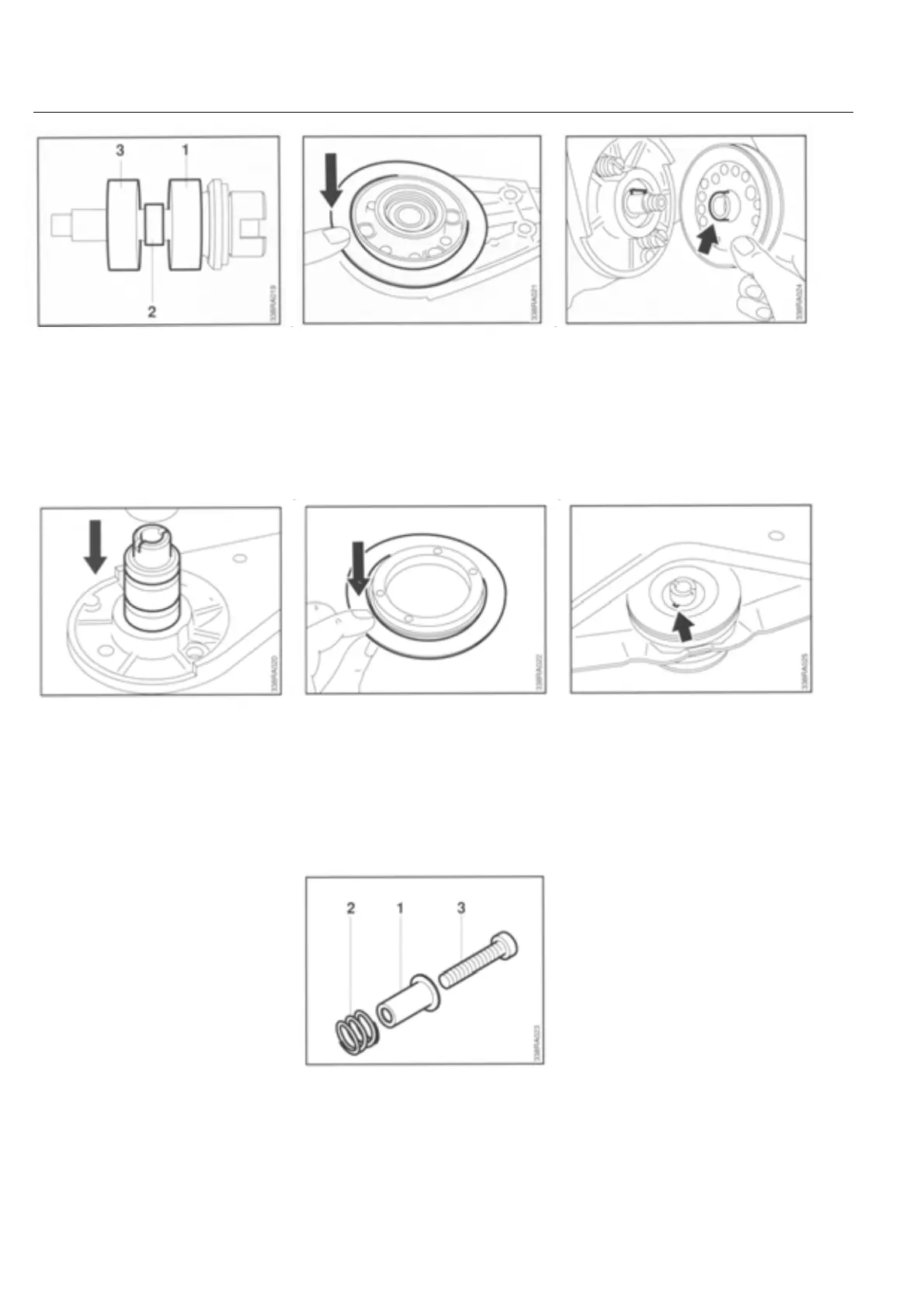

• Slide first deep groove ball bearing (1),
ring (2) and second deep groove ball
bearing (3) onto the shaft.
• Place washer on bearing.
- Place bearing in rubber bearing from
the outside.
• Slide on V-belt pulley with the longer,
machined-down collar first and secure
nut with 37.5 Nm.
• Position the deep groove ball bearing
and press in with shaft until it rests
against circlip.
- Draw shaft out of deep groove ball
bearings.
- Insert second circlip in groove of
bearing.
Important! The seal of the ball bearing
must not be damaged.
• Place washer on flange.
- Insert flange from the inside.
• Fit thrust washer so that the groove is
located over the nose.
- Insert axial clamping ring.
• Slide sleeve (1) and spring (2) onto
screw (3).
- Turn in and tighten screws.

Stihl TS 400 Specifications

General

Arbor Size	20 mm
Power Output	3.2 kW
Engine Type	2-stroke
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Maximum Wheel Size	350 mm
Wheel Size	14 in.
Maximum Cutting Depth	125 mm
Cutting Depth	125 mm
Blade Diameter	14 in.
Warranty	2 years
Engine Power	3.2 kW
