Fuses
●
Turn off the truck and perform the prelimi-
nary maintenance operations
CAUTION
Before carrying out any operations on the electrical
system, turn the truck power supply off by discon-
necting the battery connector.
CAUTION
Before changing the fuse, eliminate the cause that
led to its blowing. The blown fuse must only be
changed with a fuse of the same amperage. Do not
tamper with the truck's electrical system.
– Open the battery cover.
– Unplug the battery connector.
– Remove the cover to gain access to the
fuse holder.

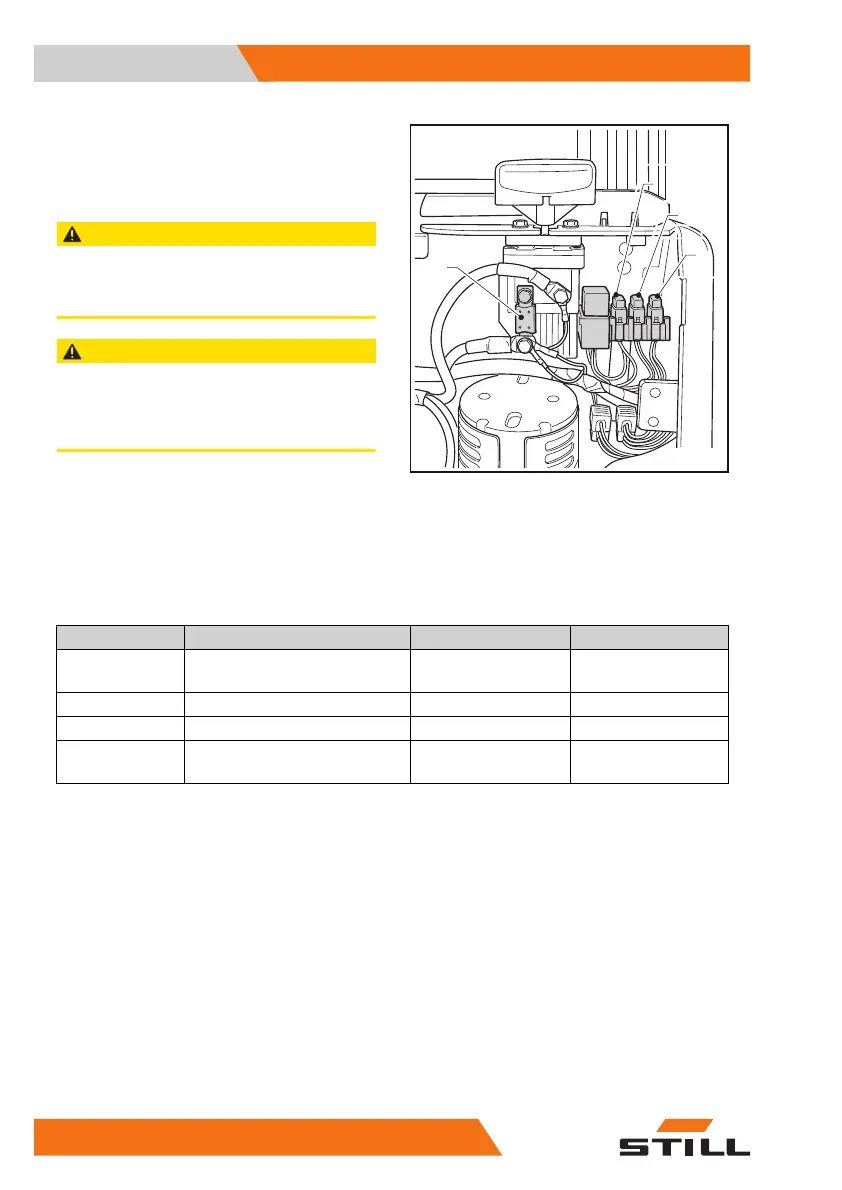

– The following fuses are found on the fuse
holder:
Reference Name Description Value
1 1F1 fuse
Main lifting and trac-
tion fuse
300 A
2 3F1 fuse Electric steering fuse 30 A
3 1F3 fuse Auxiliary supply fuse 7.5 A
4 1F4 fuse
Pump unit solenoid
valve fuse
5 A
OM2310
1
2
3
4
Maintenance
5
Maintenance as required
