Auxiliary hydraulic lines (optional)
Notes relating to the application of the
equipment
●
The theoretical maximum flow that can be
supplied to the quick-release couplings is
12 l/min. The theoretical maximum pressure
that can be supplied by the pump to the
quick-release couplings is approximately

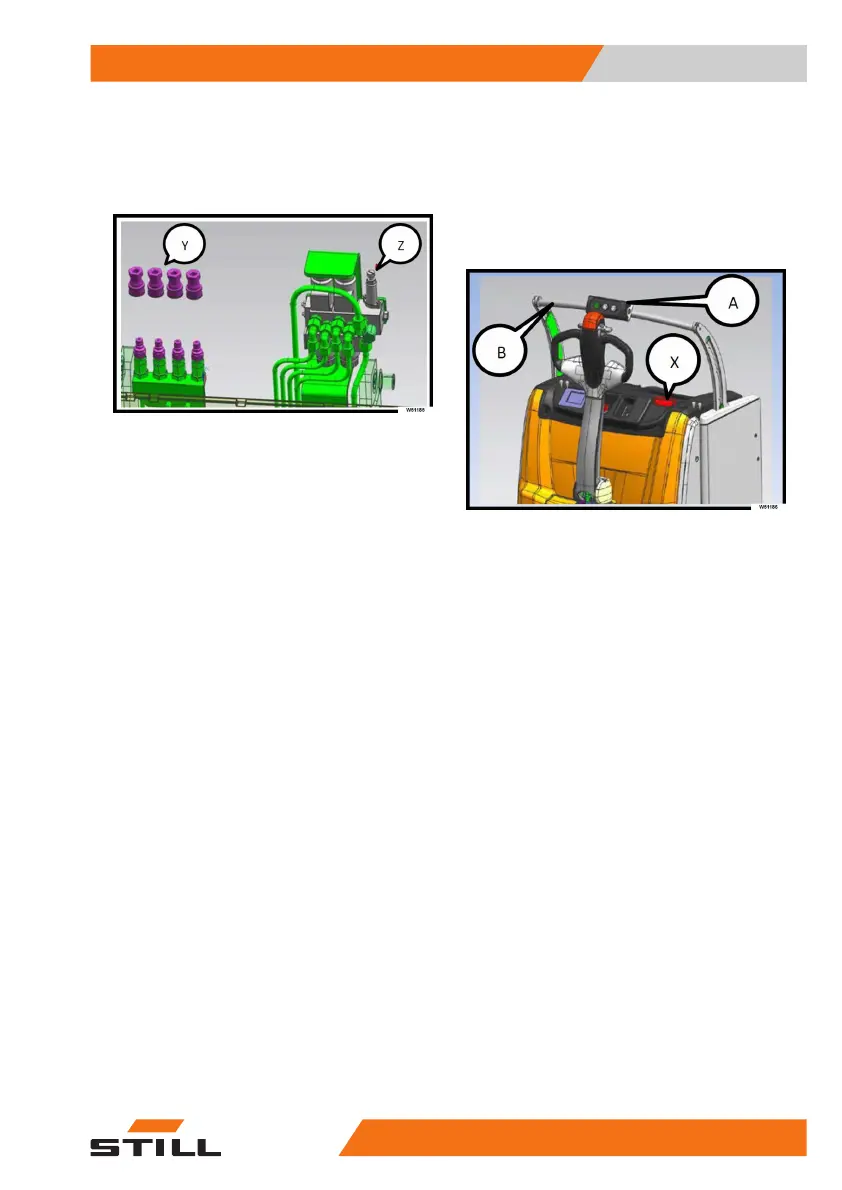

230 bar. Adjust the maximum-pressure
valve using the regulator
(Z)
positioned on
the distributor valve assembly. Apply suita-
ble hydraulic equipment.
●
The additional equipment must have a 1/4"
female
(Y)
attachment to connect to the
quick-release couplings on the truck
(ISO7241-1 Type HP 08).
●
In the version with two auxiliary hydraulic
lines with clamps, the installer must be
careful to connect the clamp to the two
dedicated quick-release couplings, which
can be identified by a black clip located on
the attachment. It is strictly forbidden to
connect the clamp anywhere else.
●
To ensure safe use of the equipment fitted,
please refer to the specific user manual for
the equipment (e.g. clamp etc.).
●
If you install additional equipment, you must
affix to the truck an additional residual ca-
pacity plate for the truck with equipment.
Observe the capacities and the load centres
of gravity indicated on the additional capaci-
ty plate for the truck with equipment. The
values indicated on the capacity plate refer
to compact and homogeneous loads and
must not be exceeded, otherwise the stabili-
ty of the truck and the load-bearing capacity
of the structures may be compromised.
●
Apply the relevant labels (ISO 7000) to but-
tons that are not identified by a symbol that
illustrates their function. To indicate to the
driver the function performed by each but-
ton, apply the labels in accordance with the
supplementary equipment installed.
Additional equipment control keypad
The specific commands for the additional
hydraulic equipment are positioned on
the keypad
(A)
fixed on the accessories
mounting bar
(B)
. In case of emergency,
press the relevant button
(X)
The keypad (A) is available in four versions
depending on the set-up requested by the
customer:
●
An auxiliary hydraulic line without clamp
●
An auxiliary hydraulic line with clamp
●
Two auxiliary hydraulic lines without clamp
●
Two auxiliary hydraulic lines with clamp
Daily checks
●
Before starting the shift, check that the key-
pad is operating correctly. Immediately ad-
vise your supervisors if the controls on the
keypad are not operating correctly.
Operator position
●
The keypad can only be used when the op-
erator is on the tiller side. Use is not permit-
ted in any other position.
Use of the keypad
●
The keypad can only be used when the
truck is stationary
●
Danger of crushing hands! Do not place
your hands or other parts of your body be-
tween the moving parts of the mast.
