Still EXV 14D - Accessories Mounting Bar with Data Socket

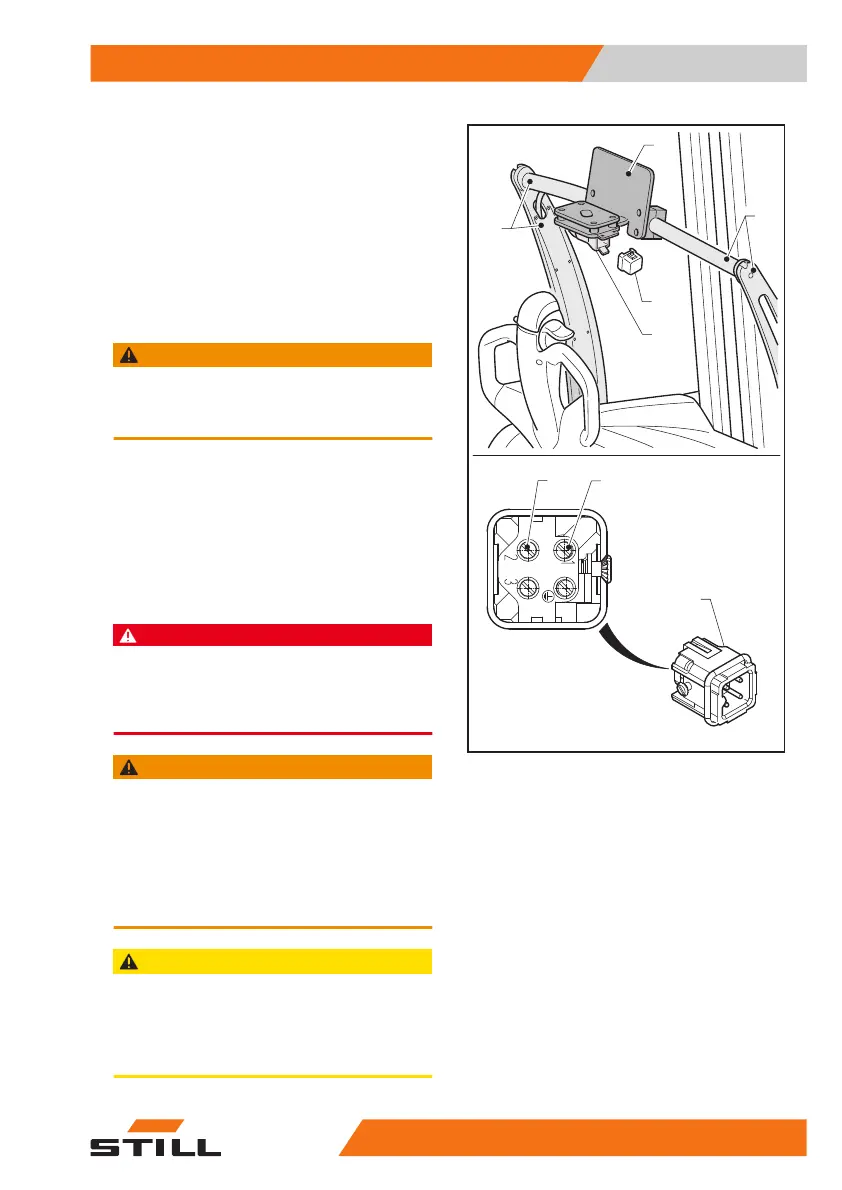

Accessories mounting bar with
data socket
The optional data socket (6 and 7) is fitted on
the relevant accessories mounting bar (3).
The pre-wired data socket (6) connected to
the truck has the following features:
●
Voltage 24 V
●
Current 5 A
WARNING
If you are not using the data socket (6), protect it
from the weather, dust etc. using the cap (5).
Do not leave the data socket (6) uncovered.
In addition to the optional "accessories mount-
ing bar with data socket" the customer is also
provided with a plug (4).
If necessary, wire the plug (4) to be connected
to the customer's data terminal as follows:
●
Connect the positive to terminal (1)
●
Connect the negative to terminal (2)
DANGER
Always respect the connections mentioned above
(1 and 2)
Reversing the polarity is dangerous and strictly pro-
hibited.
WARNING
The instructions provided are for information only. In-
stallation must be carried out precisely and in ac-
cordance with technical regulations. Only the manu-
facturer's own approved sales network is authorised
to assemble and install accessories. The manufac-
turer will NOT be liable for any personal injury or
damage caused by unauthorised third parties. Con-
tact the manufacturer's authorised service network.
CAUTION
Fix the data terminal used to the relevant support (7)
precisely and in accordance with technical regula-
tions.
Do not allow the data terminal used to fall from the
support (7).
2326
3
1
2
4
5
6
3
7
Positive
Negative
Accessories mounting bar
Plug to be wired
Plug
Data socket
Data terminal support
1
2
3
4
5
6
7

Overview
3
Options and variants
