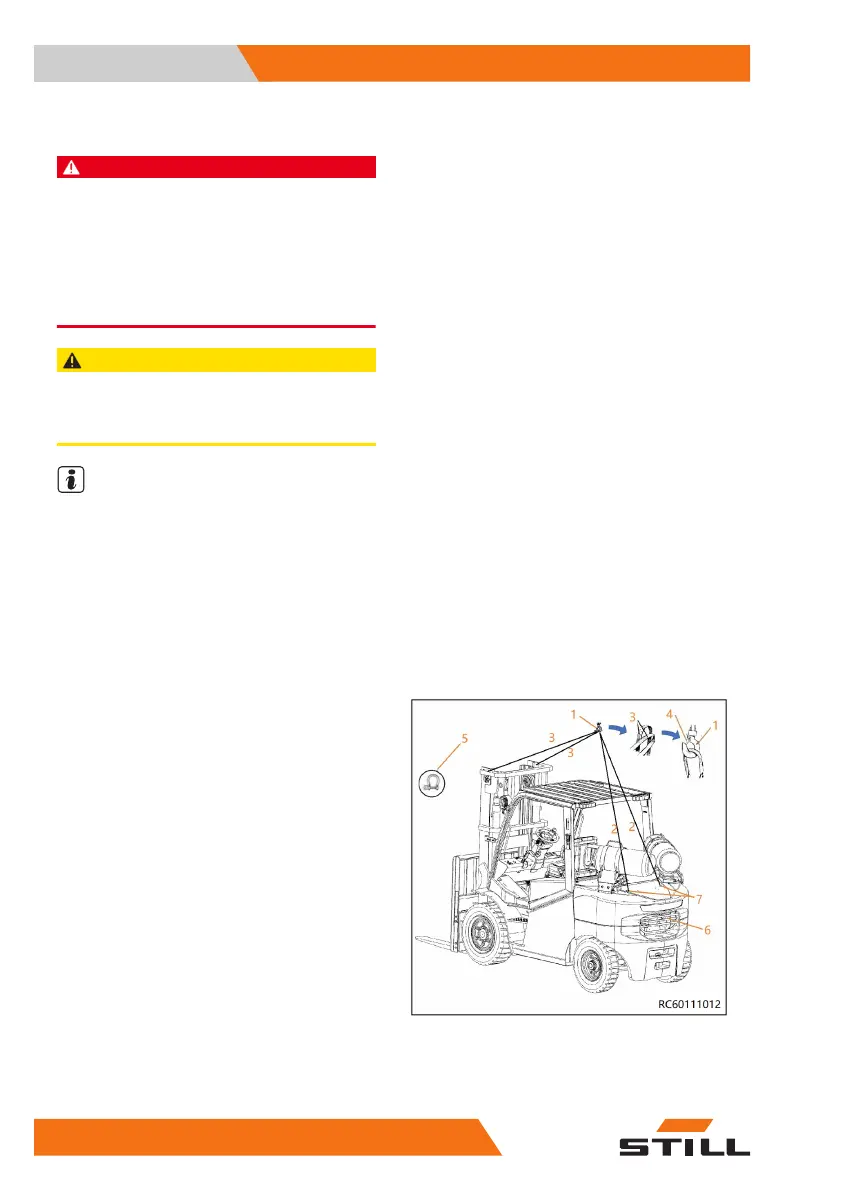

Lifting the truck with a crane
DANGER
When lifting the truck with a crane, there is a risk of
accident and fatal injury if personnel are in the
working area of the crane.
When using a crane to lift the truck, pay particular at-
tention to ensure that no personnel are in the vicinity
of the crane. Comply with the load capacity rating
marked on the crane nameplate. Never walk under a
suspended load!
CAUTION
Use a spreader and crane with sufficient load capaci-
ty to lift the truck. For the weight of the truck, see the
manufacturer's nameplate.
NOTE
Before lifting the truck, fasten the slings to the
given lifting points. These lifting points are not
specifically marked on the truck.
– Lower the lift mast completely, and tilt it fully
backwards.
– Remove the two rubber grommets(7) from
the openings in the counterweight.
– Remove the counterweight grid(6).
– Attach a sling (2) (able to at least bear the
weight of the forklift truck ) ,enter from the
original area of counterweight grid(7),come
out from the two openings in the counter-
weight.
– Attach two shackles (5) to the two openings
in the upper beam of the outer lift mast.
– Attach a sling (3) (able to at least bear the
weight of the forklift truck ) to the two shack-
les.
– Prevent the slings from rubbing against any
sharp edges on the truck.
– Attach the ends of all the slings to the crane
hook (1).
