Operating devices and display elem
ents
Operating devices and display elements

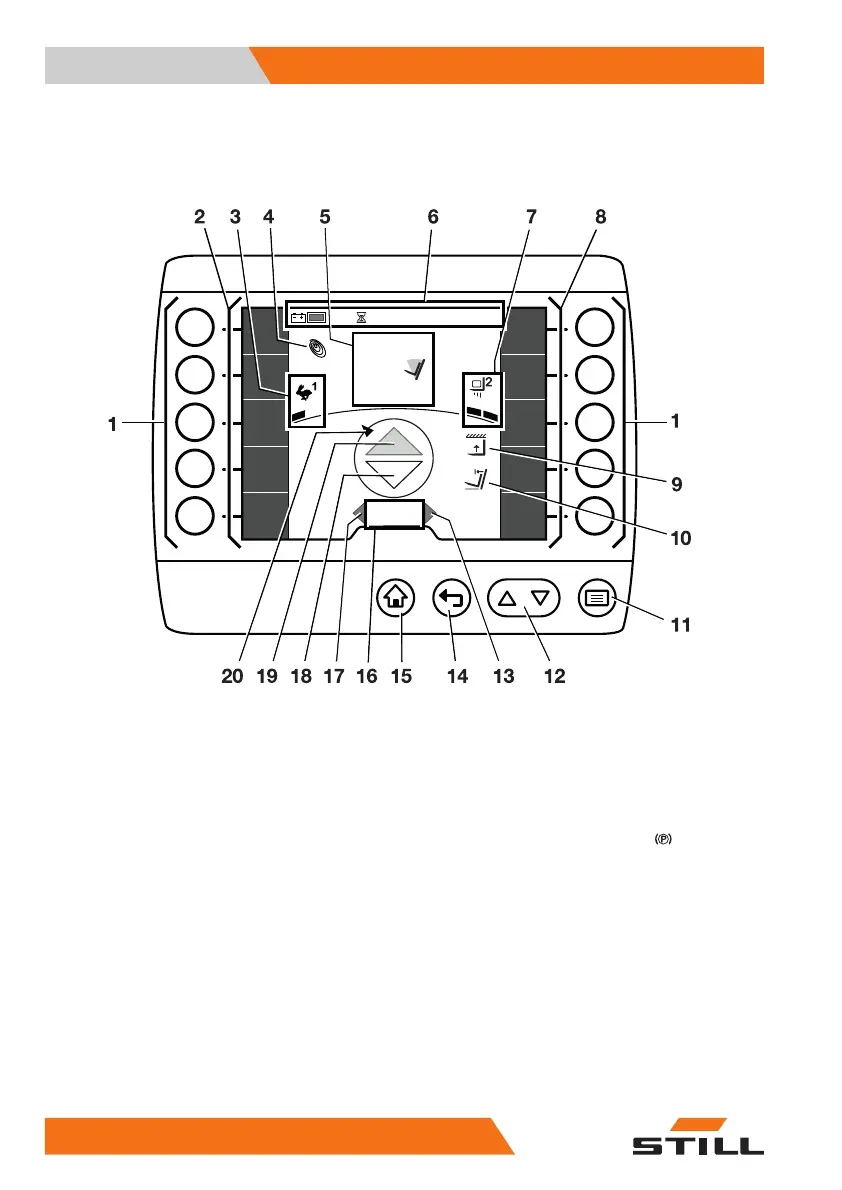

Display/control unit "STILL Easy Control"
432 h
08:20
1,6 t
12 km/h
7°
2,71
m
1 Softkeys
2 Left-hand favourites bar
3 Selected drive programme with driving
dynamics display
4 Blue-Q symbol
5 Load information (variants):
Load measurement
Lift-mast tilt angle
Lift height
6 Status bar*: battery charge, operating
hours, time
7 Selected load programme with load dynam-
ics display
8 Right-hand favourites bar
9 Lift height restriction
10 Automatic mast vertical positioning
11 Menu button
12 Scrolling buttons
13 "Right" turn indicator display
14 Back button
15 Main-display button
16 Driving speed or parking brake
17 "Left" turn indicator display
18 "Reverse" drive direction indicator
19 "Forward" drive direction indicator
20 Display for direction of movement of the
truck
* An example status bar (6) is shown in this
figure.
– For additional display options, see the
chapter entitled "Status bar" in the operating
instructions for the "Display/operating unit".
76 5
6368011531 EN - 06/2019 - 02
