Still RX60-35 - Controlling Attachments Using the Double Mini-Lever and the 5 Th Function

4 Operation
Attachments
2
E
F
1
3
7312_003-113_V2
EF

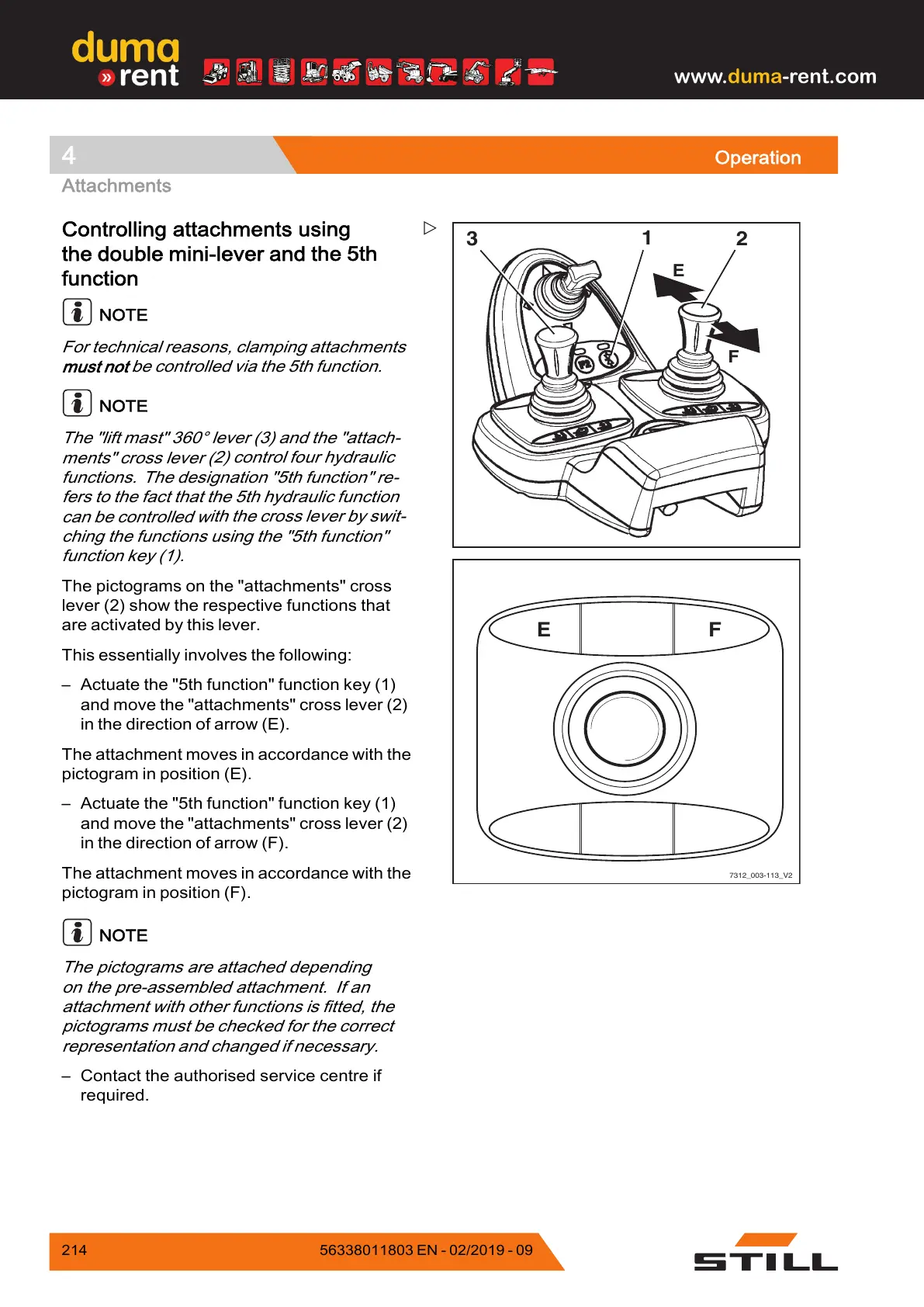

Controlling attachments us
ing
the double mini-lever and t
he 5th
function
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
NOTE
The "lift mast" 360°
lever (3) and the "attach-
ments" cross lever (
2) control four hydraulic
functions. The desi
gnation "5th function" re-
fers to the fact that
the 5th hydraulic function
can be controlled w
ith the cross lever by swit-
ching the function
s using the "5th function"
function key (1).
The pictograms on the "attachments" cross
lever (2) show the respective functions that
are activated by this lever.
This essentially involves the following:
– Actuate the "5th f
unction" function key (1)
and move the "atta
chments" cross lever (2)
in the direction o
f arrow (E).
The attachment moves in accordance with the
pictogram in position (E).
– Actuate the "5th function" function key (1)
and move the "attachments" cross lever (2)
in the direction of arrow (F).
The attachment mo
ves in accordance with the
pictogram in posi
tion (F).
NOTE
The pictograms are attached depending
on the pre-assembled attachment. If an
attachment with other functions is fitted, the
pictograms must be checked for the correct
representation and changed if necessary.
– Contact the authorised service centre if
required.
214
56338011803 EN - 02/2019 - 09
