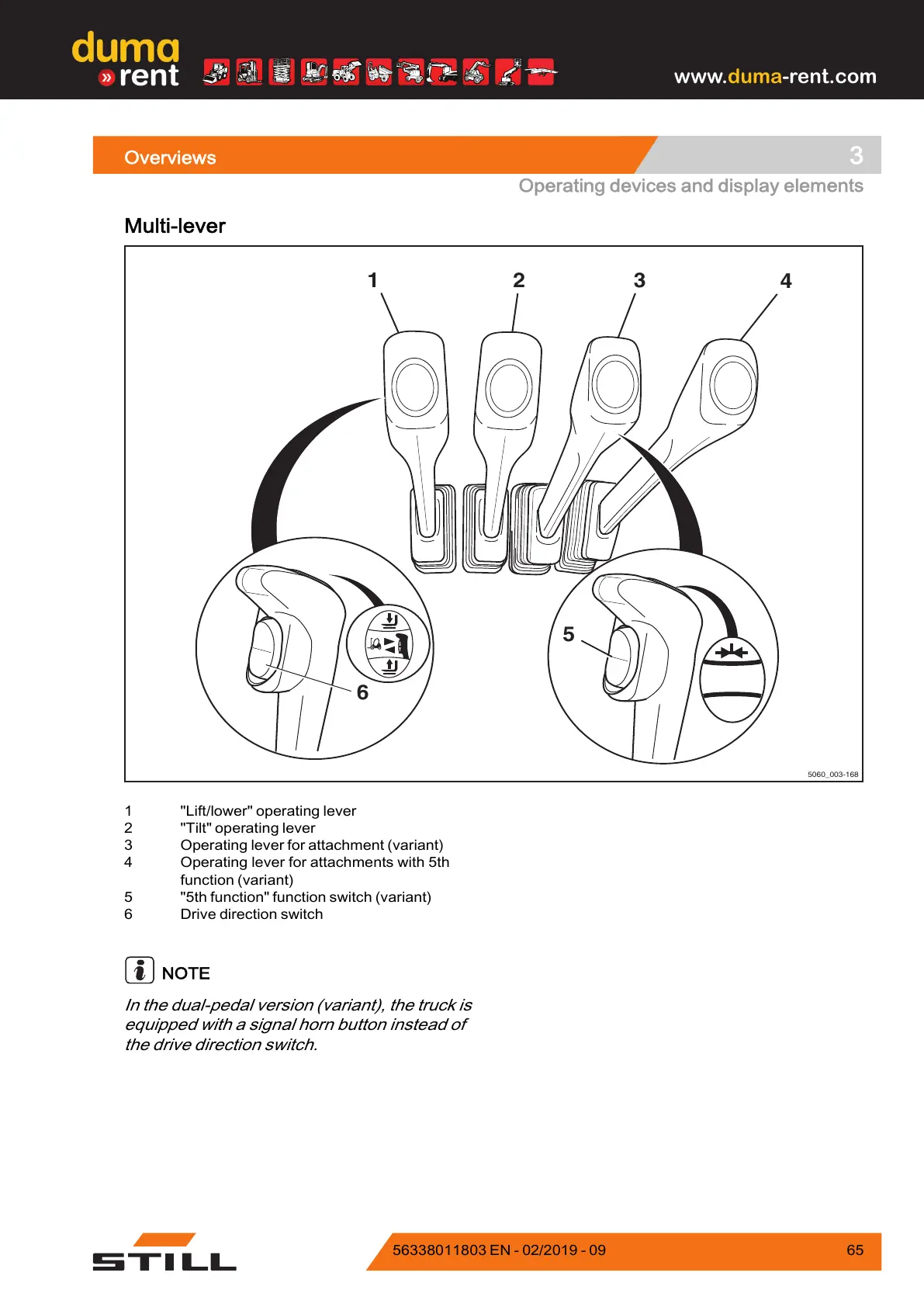

Overviews 3
Operating devices and display elem
ents
Multi-lever
5060_003-168
123
4
5
6
1 "Lift/lower" operating lever
2 "Tilt" operating lever
3 Operating lever for attachment (variant)
4 Operating lever for attachments with 5th
function (variant)
5 "5th function" function switch (variant)
6 Drive direction switch
NOTE
In the dual-pedal version (variant), the truck is
equipped with a signal horn button instead of
the drive direction switch.
563
38011803 EN - 02/2019 - 09 65
