4 Operation
Attachments
5060_003-121
E
F
2
1
3
5060_003-120_V2
E
F

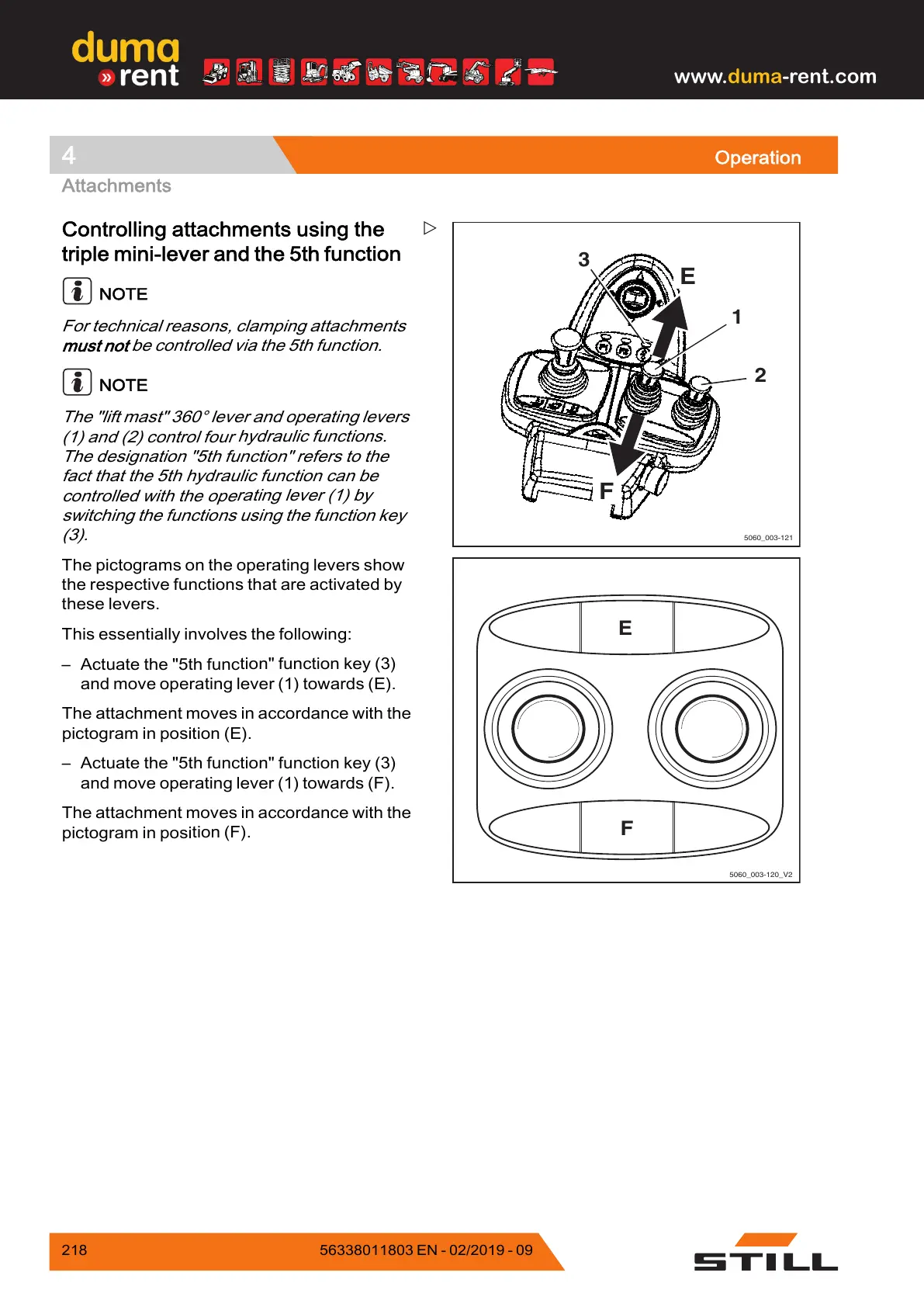

Controlling attachments usin
gthe
triple mini-lever and the 5th f
unction
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
NOTE
The "lift mast" 360° lev
er and operating levers
(1) and (2) control four
hydraulic functions.
The designation "5th fu
nction" refers to the
fact that the 5th hydrau
lic function can be
controlled with the ope
rating lever (1) by
switching the functio
ns using the function key
(3).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
This essentially involves the following:
– Actuate the "5th func
tion" function key (3)
and move operating l
ever (1) towards (E).
The attachment moves in accordance with the
pictogram in position (E).
– Actuate the "5th function" function key (3)
and move operating lever (1) towards (F).
The attachment mov
es in accordance with the
pictogram in posi
tion (F).
218
56338011803 EN - 02/2019 - 09
