Overviews 3
Operating devices and display elem
ents
6209_003-002
1
2
3

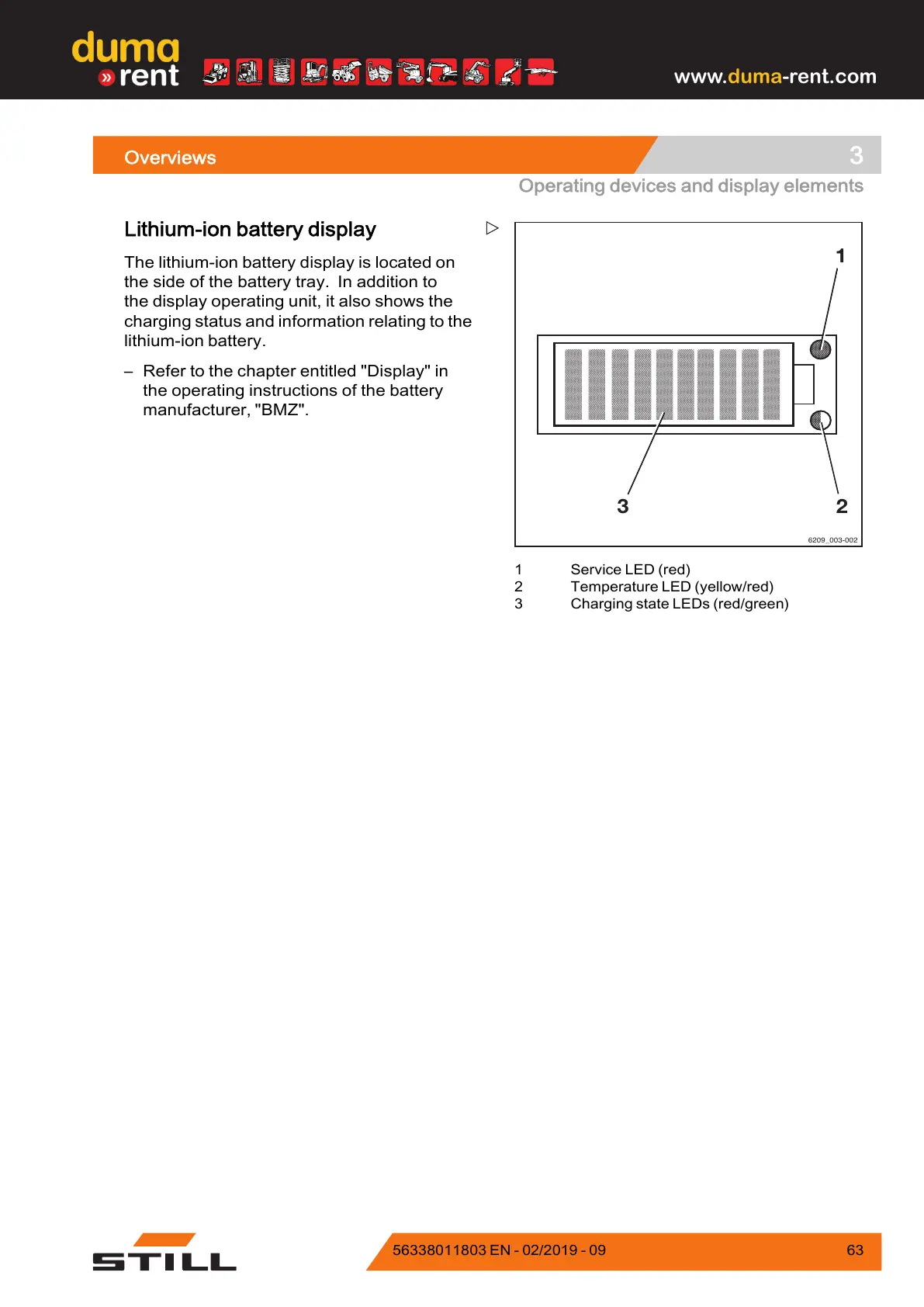

1 Service LED (red)
2 Temperature LED (yellow/red)
3 Charging state LEDs (red/green)
Lithium-ion battery display
The lithium-ion battery display is located on
the side of the battery tray. In addition to
the display operating unit, it also shows the
charging status and information relating to the
lithium-ion battery.
– Refer to the chapter entitled "Display" in
the operating instructions of the battery
manufacturer, "BMZ".
