Operation 4
Handling the lithium-ion battery

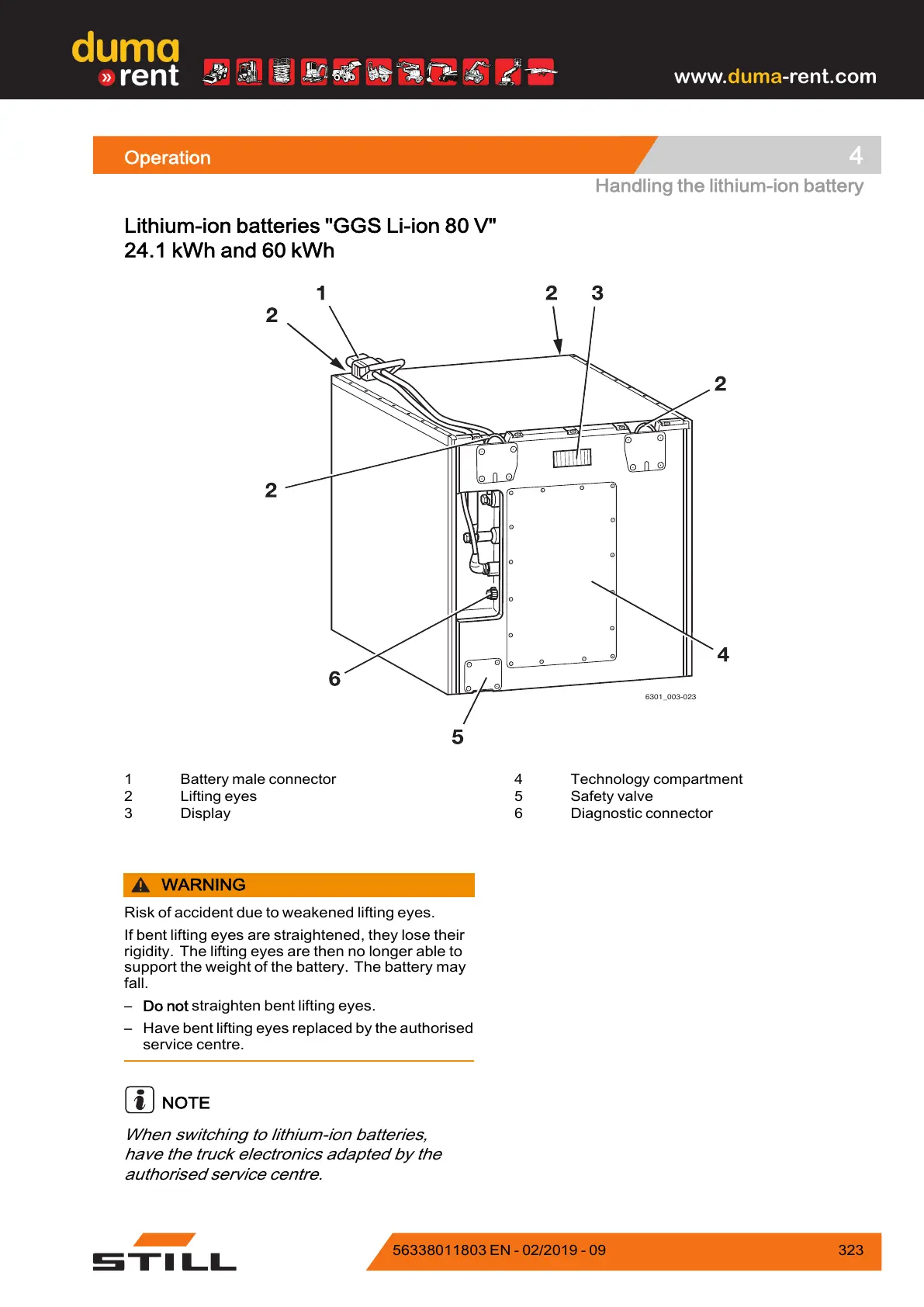

Lithium-ion batteries "GGS Li-ion 80 V"
24.1 kWh and 60 kWh
6301_003-023
1 Battery male connector
2 Lifting eyes
3 Display
4 Technology compartment
5 Safety valve
6 Diagnostic connector
WARNING
Risk of accident due to weakened lifting eyes.
If bent lifting eyes are straightened, they lose their
rigidity. The lifting eyes are then no longer able to
support the weight of the battery. The battery may
fall.
– Do not straighten bent lifting eyes.
– Have bent lifting eyes replaced by the authorised
service centre.
NOTE
When switching to lithium-ion batteries,
have the truck electronics adapted by the
authorised service centre.
563
38011803 EN - 02/2019 - 09 323
