3.2 SatLink VSAT IDU Front and Rear Panels
3.2.1 SatLink 2000 Front and Rear panel

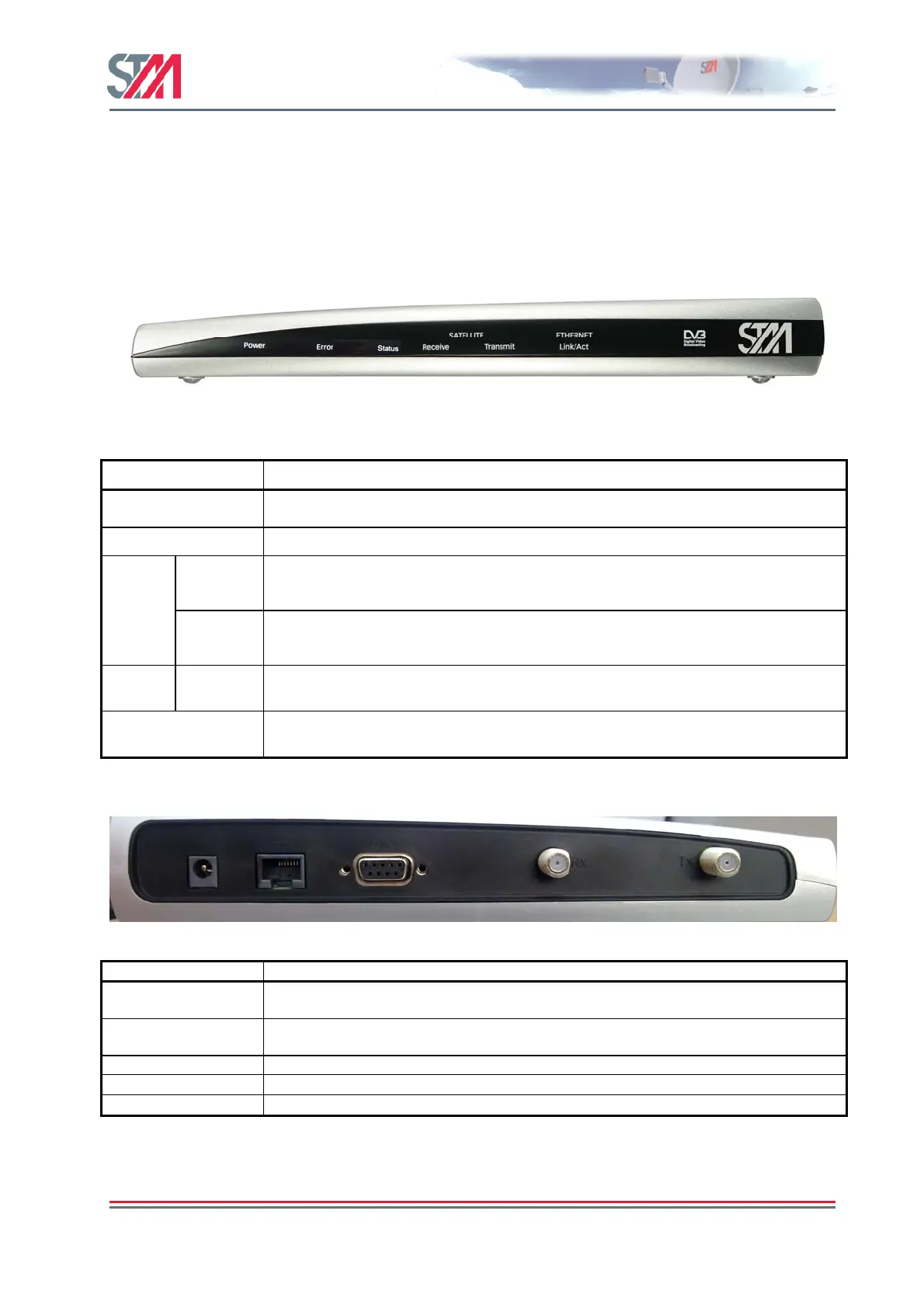

Figure 3 : SatLink 2000 Front Panel
LED Colour, indicates
Power
Yellow, lights steadily when connected to the power supply and unit is powered. Flashes
when loading software.
Error
Red, lights steadily when an error event occurs and during reboot.
Satellite Receive
Blue, flashes when the receiver is searching for the carrier.
Lights steadily when receiver is on and functioning properly.
Flashes when IP packets are received from the Satellite Interface (the Hub).
Transmit
Blue, flashes rapidly when a continuous wave (CW) is transmitted.
Lights steadily when the VSAT is logged on to the DVB-RCS Hub.
Flashes when IP packets are transmitted to the Satellite Interface (the Hub).
Ethernet Link/Act
Blue, lights steadily when Ethernet connectivity is OK.
Flashes slowly when Ethernet packets are transferred via the Ethernet interface.
Status
For future use
Table 1: SatLink 2000 Front Panel LEDs
Figure 4 : SatLink 2000 Rear Panel
Item Description
Power Connector Connector for cable to the 24 V DC power transformer (external power supply provided
with STM SatLink 2000 VSAT)
Ethernet
Connector
RJ45 connector for IP traffic to connect to a PC, Ethernet switch, IP router etc. 10BASE-T
or 100BASE-T modes is detected automatically.
COM1 Connector Nine pin connector for connecting CLI interface to a computer’s DB-9 serial interface.
RX coaxial jack
Coaxial 75 Ω F-type jack for the cable to the LNB.
TX coaxial jack
Coaxial 75 Ω F-type jack for the cable to the BUC.
Table 2: SatLink 2000 Rear Panel LEDs
