SatLink VSAT User Guide
Publication no. 101557
Copyright © 2009 – STM Group, Inc.
Page 10 (160)

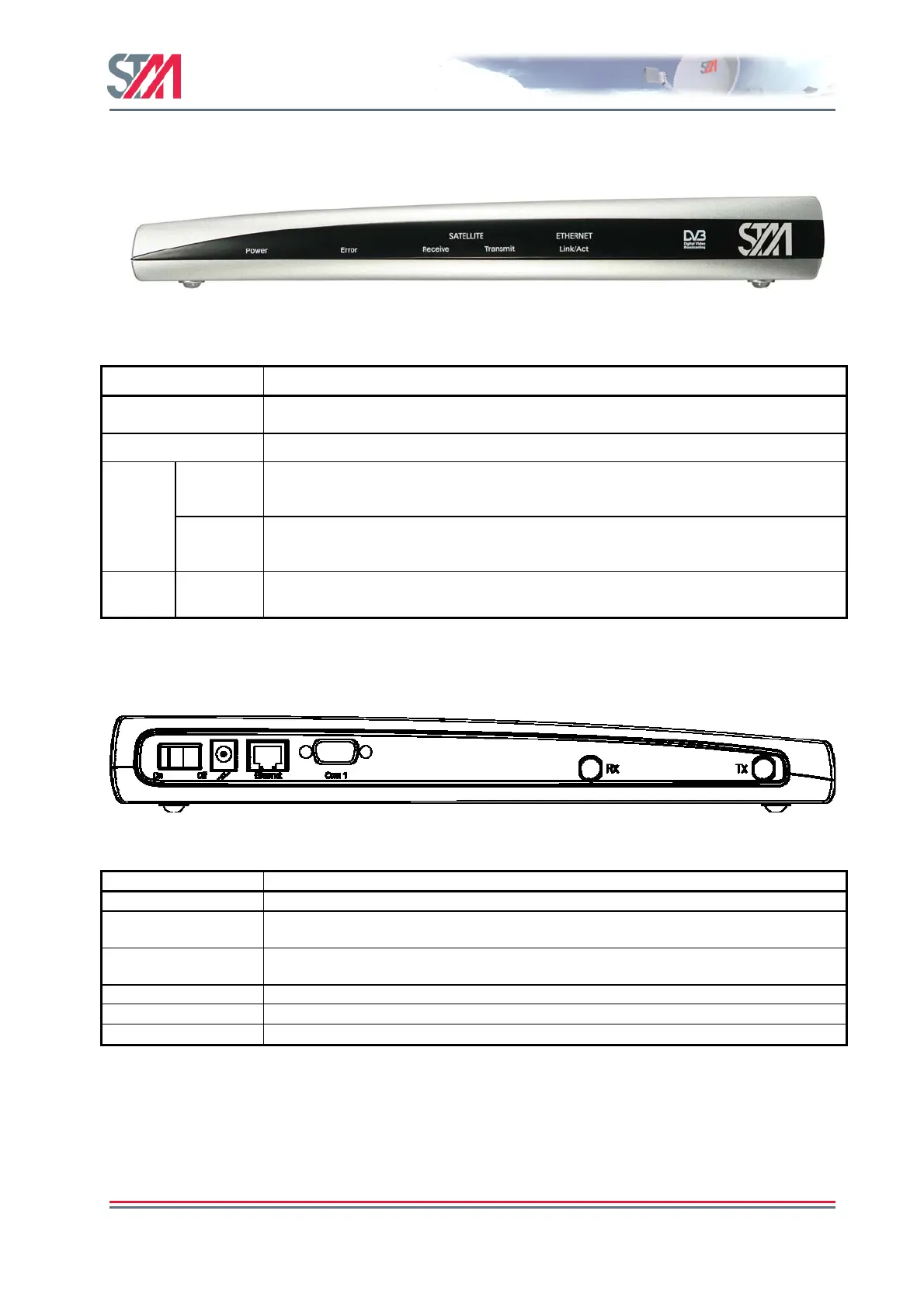

3.2.2 SatLink 1000 Front and Rear panel
Figure 5: SatLink 1000 Front panel
LED Colour, indicates
Power
Blue, lights steadily when power switch is on and unit is powered. Flashes when loading
software.
Error
Red, lights steadily when an error event occurs and during reboot.
Satellite Receive
Blue, flashes when the receiver is searching for the carrier.
Lights steadily when receiver is on and functioning properly.
Flashes when IP packets are received from the Satellite Interface (the Hub).
Transmit
Blue, flashes rapidly when a continuous wave (CW) is transmitted.
Lights steadily when the VSAT is logged on to the DVB-RCS Hub.
Flashes when IP packets are transmitted to the Satellite Interface (the Hub).
Ethernet Link/Act
Blue, lights steadily when Ethernet connectivity is OK.
Flashes slowly when Ethernet packets are transferred via the Ethernet interface.
Table3: SatLink 1000 Front Panel LEDs
Figure 6: SatLink 1000 Rear Panel
Item Description
On/off switch Power on (1) or off (0).
Power Connector Connector for cable to the 24 V DC power transformer (external power supply provided
with STM SatLink 1000 VSAT)
Ethernet
Connector
RJ45 connector for IP traffic to connect to a PC, Ethernet switch, IP router etc. 10BASE-T
or 100BASE-T modes is detected automatically.
COM1 Connector Nine pin connector for connecting CLI interface to a computer’s DB-9 serial interface.
RX coaxial jack
Coaxial 75 Ω F-type jack for the cable to the LNB.
TX coaxial jack
Coaxial 75 Ω F-type jack for the cable to the BUC.
Table 2: SatLink 1000 Rear Panel Description
3.2.3 SatLink 1910 Front and Rear Panel
