SatLink VSAT User Guide
Publication no. 101557
Copyright © 2009 – STM Group, Inc.
Page 116 (160)

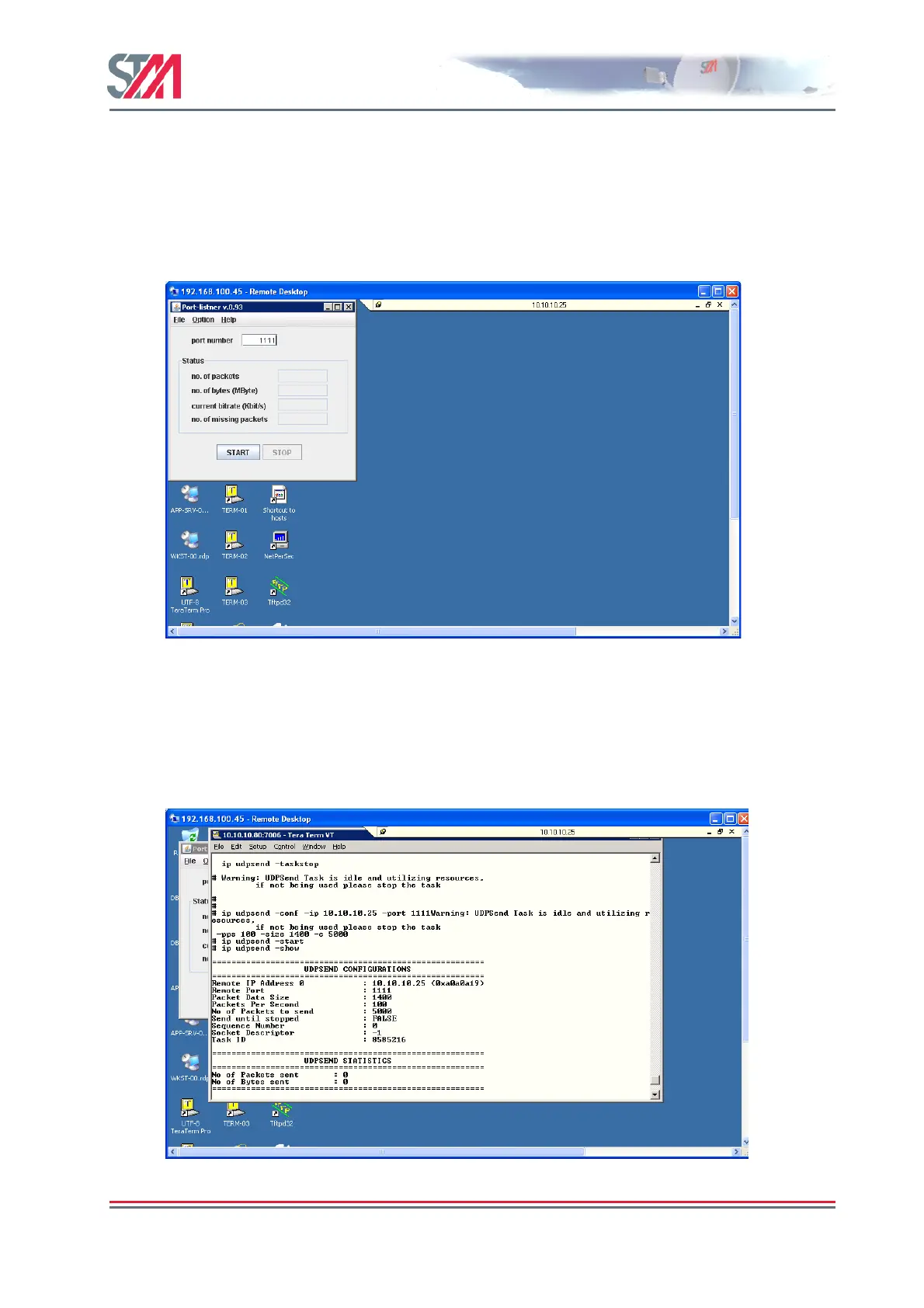

Internal UDP sender for testing satellite link to hub
For UDP sender testing satellite link to hub, follow the below mentioned procedure.
1. Before configuring the terminal make sure to start the port listener and assign a port number.
Port number of the listener should be same as that of the terminal.
2. Select Options > View > No packet loss on port listener.
3. Configure the UDP sender on the terminal as shown in the following example.
Example:
ip udpsend -taskstart
ip udpsend -conf -ip 10.10.10.25 -port 1111 -pps 100 -size 1400 -c 5000
