To verify that the entry is correctly created, the CLI command ip qos show may be used:
# ip qos show
QOS Policy Table
Grp Cls CrM Pri QLength Drop Timeout Description
0 0 0 0 400000 0 120 Best Effort
1 1 1 1 15000 1 120 VoIP Audio
2 1 1 2 4000 1 120 VoIP Signalling
QoS Classification table
Idx Grp Classification Parms
1 1 DSCP = 45..45
2 2 IPDst= 10.0.0.0/255.0.0.0
3 0 match all
#
2. Then use e.g. ”Table View” on the qosClassificationEntry object and edit the table. Commit the table
to the VSAT.

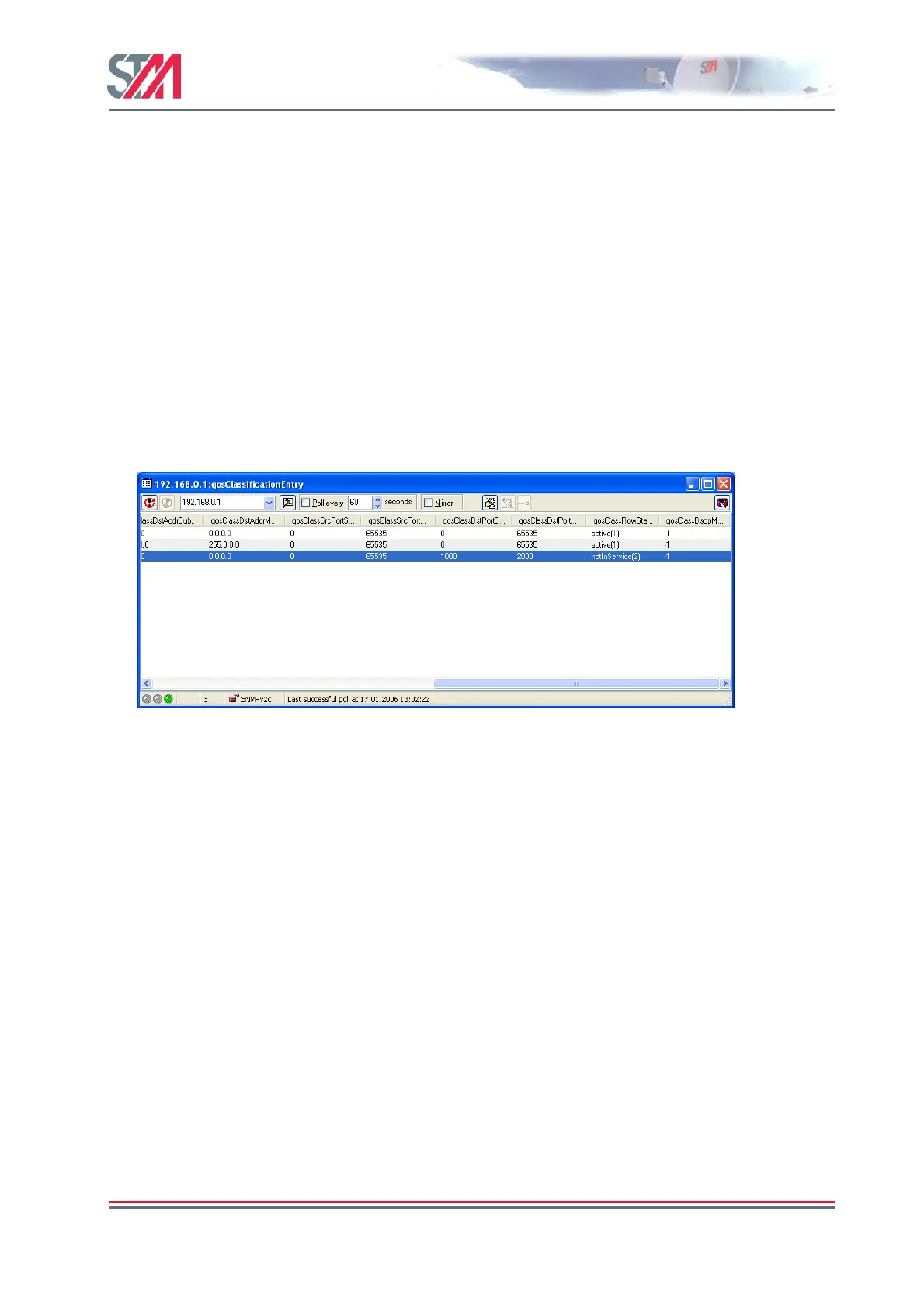

Figure 42: Editing the entry using "Table View"
The figure above shows an example for filtering on destination ports from 1000-2000. The entry can
be verified using the CLI command
ip qos show:
# ip qos show
QOS Policy Table
Grp Cls CrM Pri QLength Drop Timeout Description
0 0 0 0 400000 0 120 Best Effort
1 1 1 1 15000 1 120 VoIP Audio
2 1 1 2 4000 1 120 VoIP Signalling
QoS Classification table
Idx Grp Classification Parms
1 1 DSCP = 45..45
2 2 IPDst= 10.0.0.0/255.0.0.0
3 0 Dst port = 1000..2000
