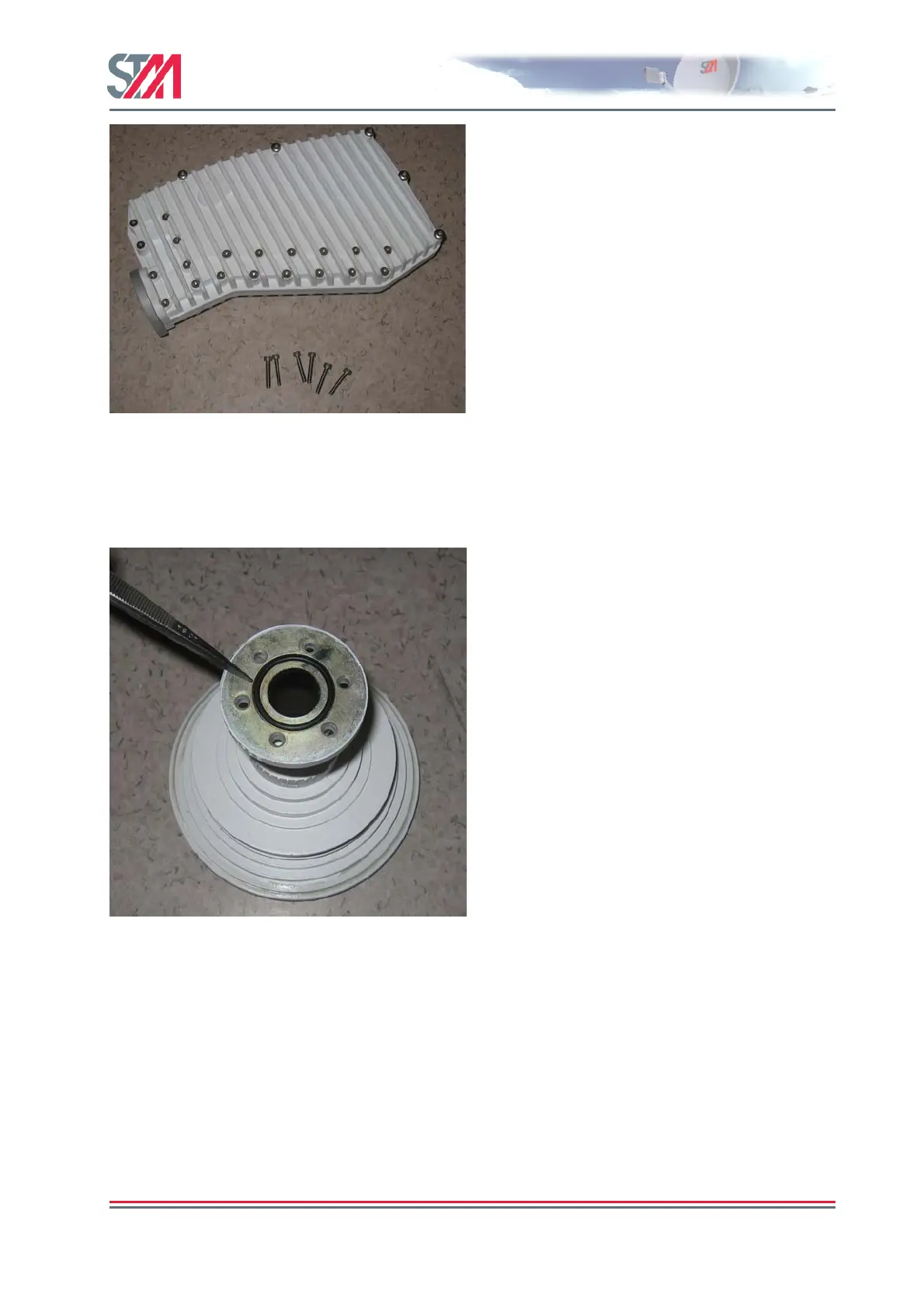

Figure 45: SatLink 4033/4035 and screws for mounting feed horn
When mounting the transceiver to the antenna horn, place the feed horn on a level surface and insert the
O-ring supplied with the antenna feed horn into the groove as shown below:
Figure 46: Inserting O-ring into feed horn groove
Place the transceiver on to the feed horn and insert one of the UNC screws for alignment. Tighten the
screw loosely by hand or with an Allen key. Make sure that the rubber gasket is not removed from the
groove when doing this.
