The cable pulling from the ODU to the IDU must be performed according to the customer. Sharp bends
on the cables must be avoided (see figure below).

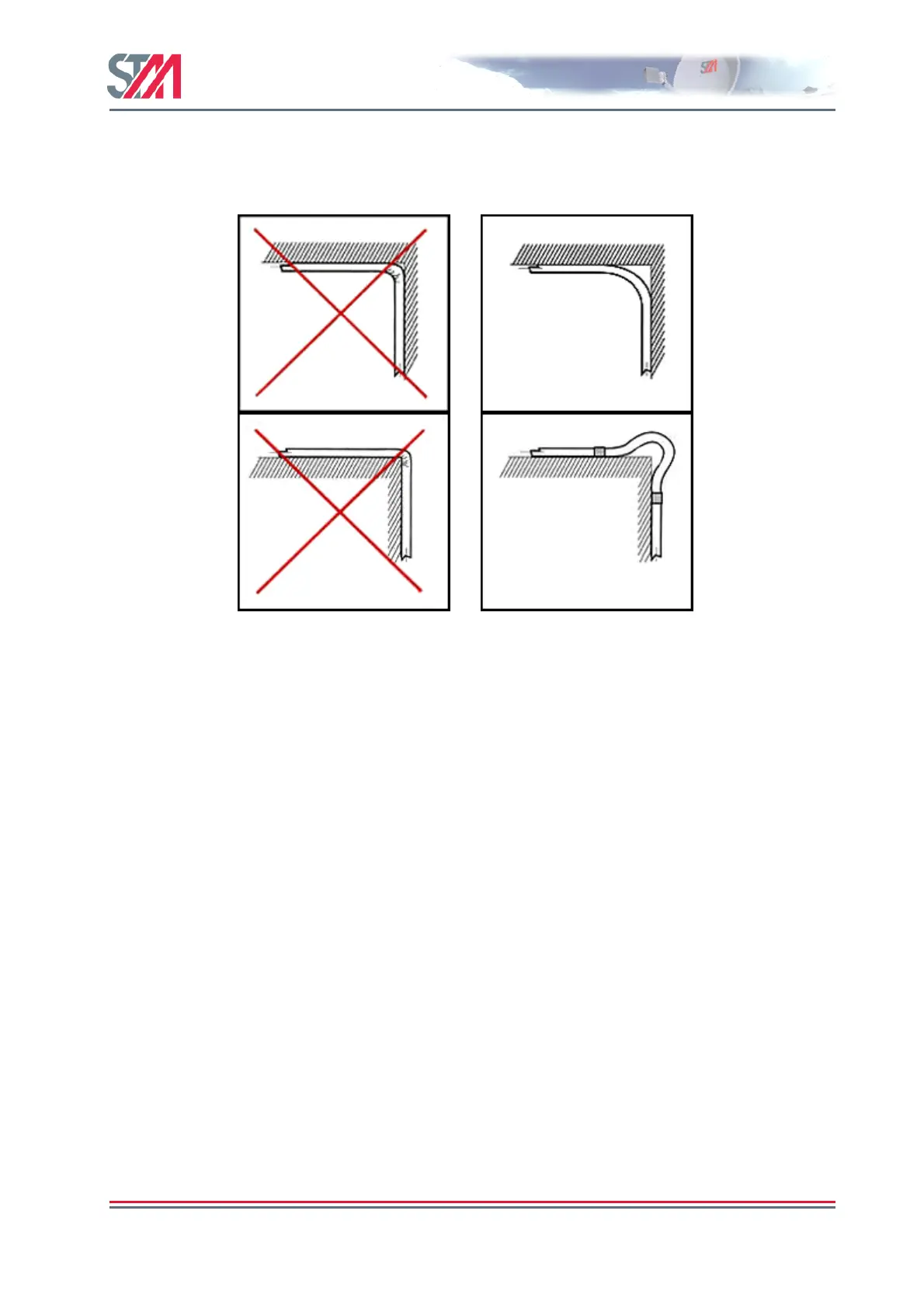

Figure 51: Avoid sharp bends on cables
