Finally, the F-connectors must be protected against rain and humidity. Use a self-vulcanizing tape
suitable for outdoor use. The cables must also be properly marked and should be strapped to the antenna
feed mount.

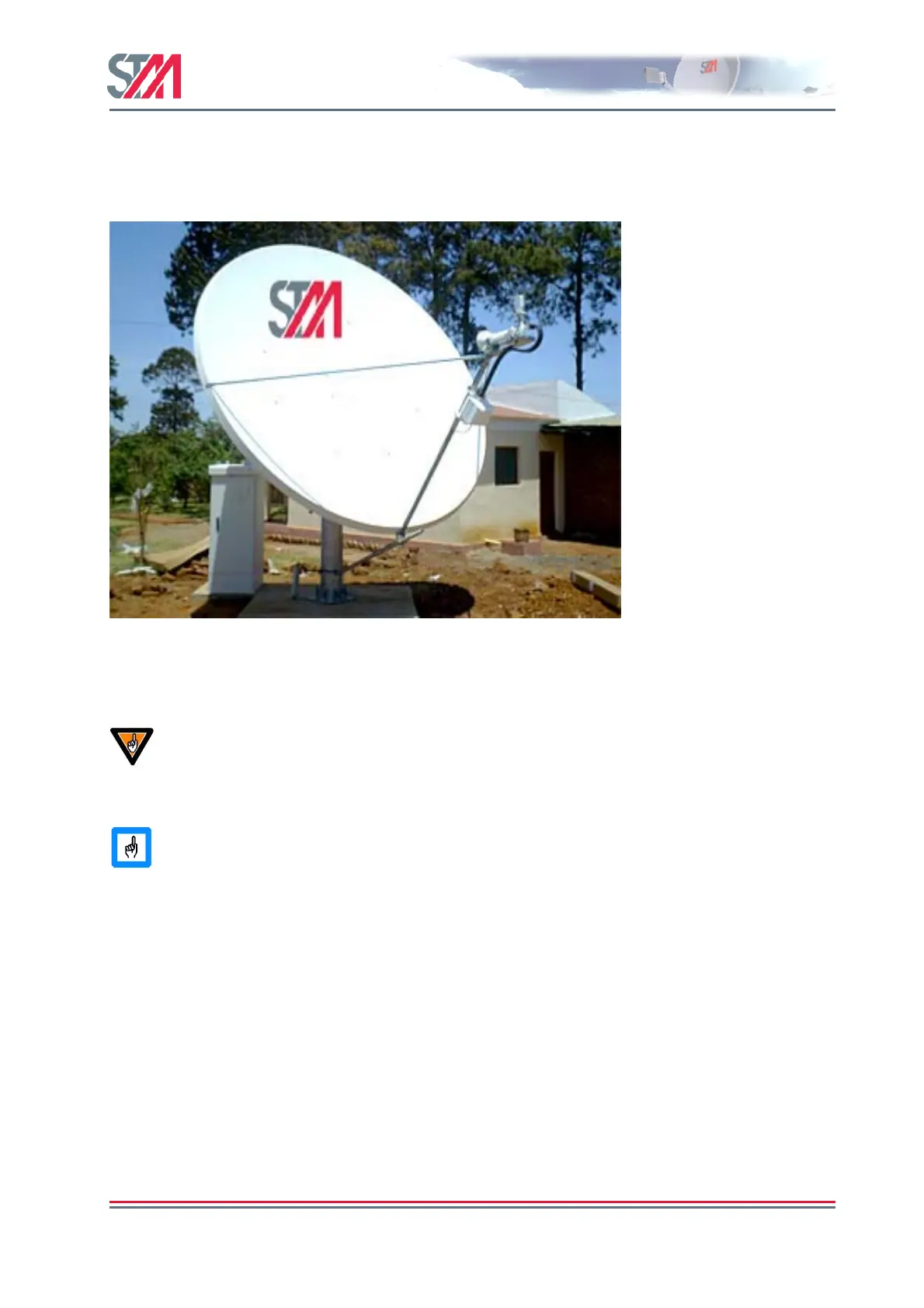

Figure 50: Complete assembled ODU with cables strapped to antenna feed mount
Important: Do not use amplifiers or attenuators on the TX-cable.
Use type “F” connectors for the cables.
