SatLink VSAT User Guide
Publication no. 101557
Copyright © 2009 – STM Group, Inc.
Page 20 (160)
ID. The population ID to be used is assigned by the Hub Operator
Enable Enable the table entry.
3) Click the Save button to save the configuration.
4) Click Start button to start the receiver manually (Only required with Autostart mode “off”).
6.2.2 Transmitter Parameter Configuration
The STM SatLink VSAT is normally pre-configured to be used together with the STM SatLink 403x
transceiver. But, it is possible to configure the STM SatLink VSAT to operate together with other
transmitters than SatLink 403x. The valid ODU transmitters (BUC) used with the STM SatLink VSAT
are listed in (Table 3: Overview of supported ODU transmitters (BUCs)
1) Click on the Satellite option in the SatLink VSAT home page.

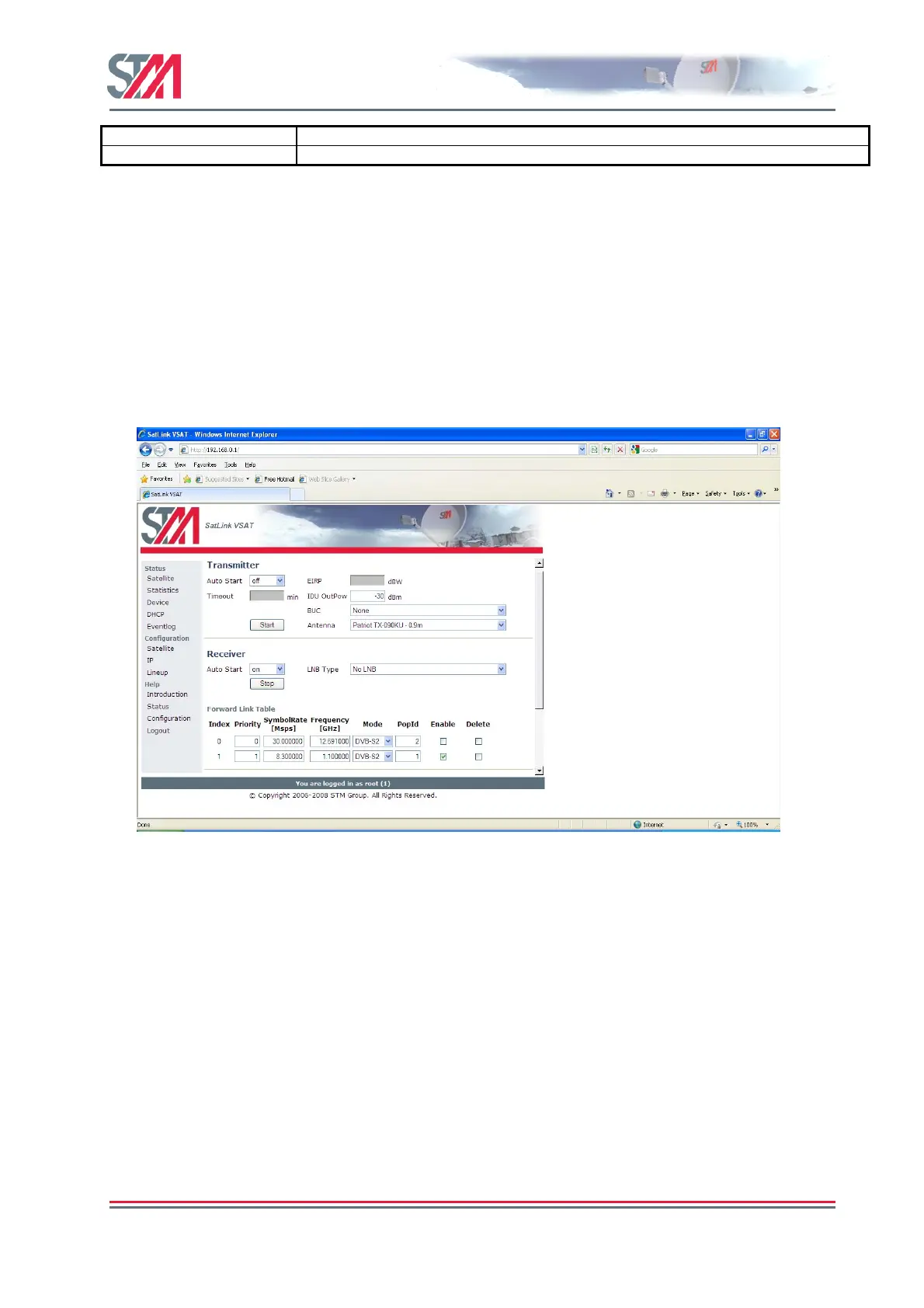

Figure 17 : Configuring Transmitter Parameters
