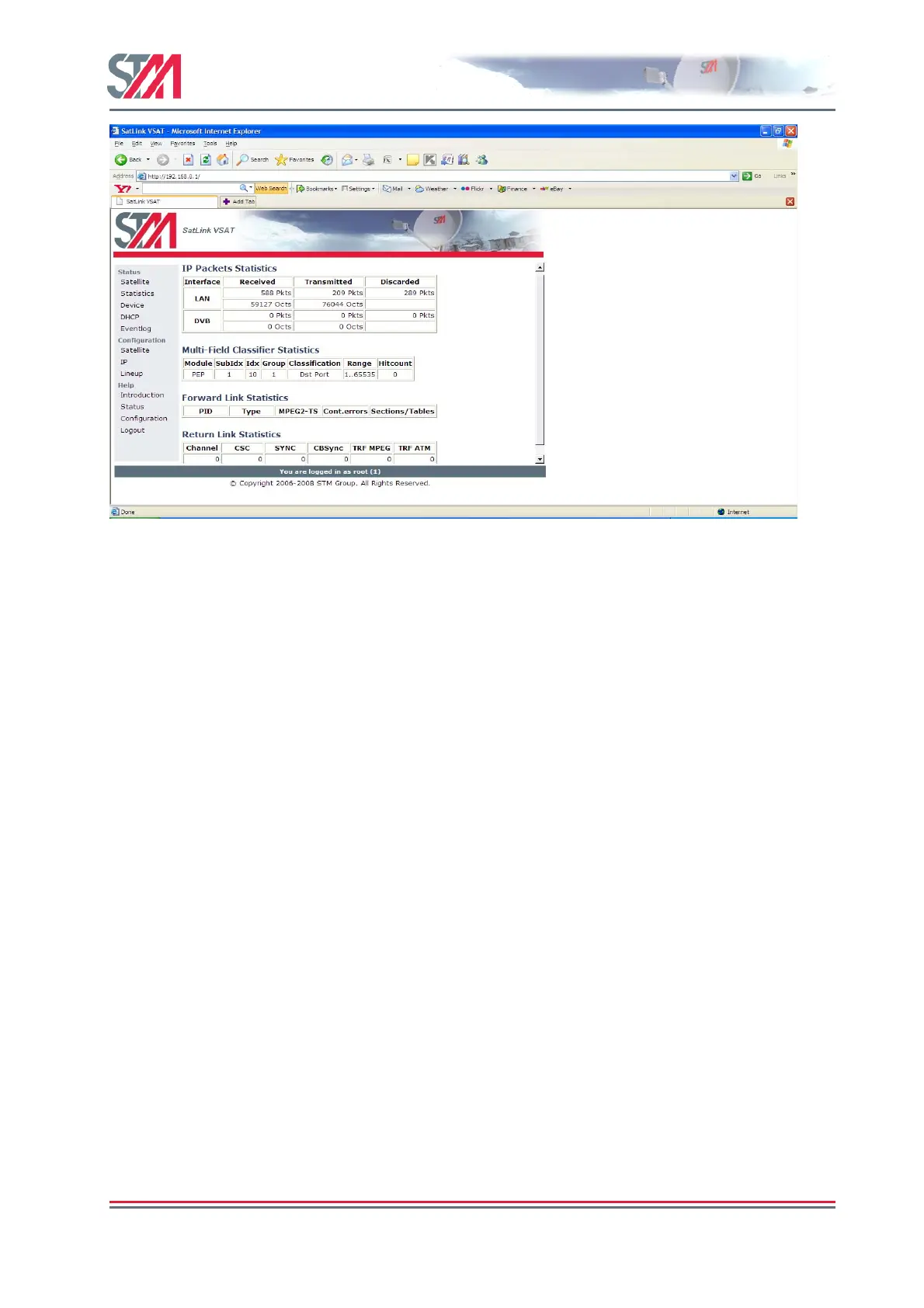

Figure 29 : SatLink VSAT Statistics
Multi-Field Classifier Statistics
The Multi-Field Classifier table displays information about the configuration of the MFC table.
A multi-field classifier is used by the VSAT to determine the QoS group an IP packet to be
transmitted on the return link belongs to by performing a look-up in a classification table. The
MFC is also used to determine the handling of TCP connections by the Performance Enhancing
Proxy client (TCP PEP).
Forward Link Statistics
The Forward link table displays the statistics for the satellite forward link (receiver). Traffic on
the forward link is arranged on different PIDs (Packet Identifier), for each PID there is one row
in the table.
Return Link Statistics
The Return link table displays the statistics for the satellite return link (transmitter). The return
link transmission is segmented in bursts. The table shows how many bursts that have been sent
since logon for the following burst types:
7.3 Device Status
The Device option on the SatLink Web interface displays the device status information as
displayed in the following figure and table. Select the Device option on the Satlink Web interface
home page to open the Device status page.
