EXTERNAL RADIO led (green):
This led is on when external datalink is selected as RTK datalink. It starts to blink when
there is data transfer ongoing( download in rover mode and upload in base mode).

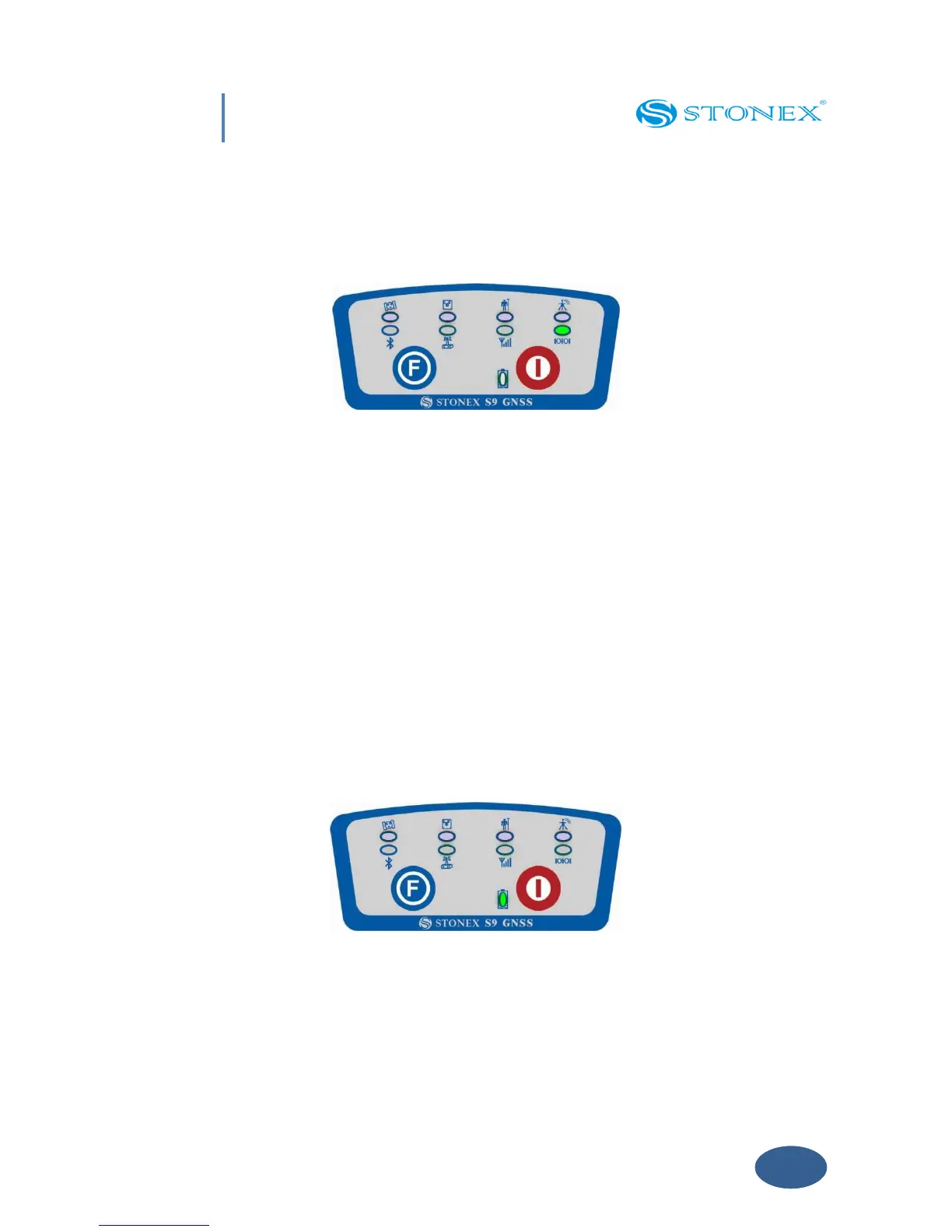

Fig 2.14 - S8 external radio led
POWER led (green and red) :
It includes three kind of status:
1. Green: power supply in good condition.
2. Red: low power (below 20%).
3. Red blinking and beeping: very low power (below 10%)
Usually when the light becomes red you have still one hour of power reserve. External
power and internal battery share same power light. When external power is used, the
led indicates external power level.
Fig. 2.15 - S8 power led
