II.4 Indicator leds and instrument setup

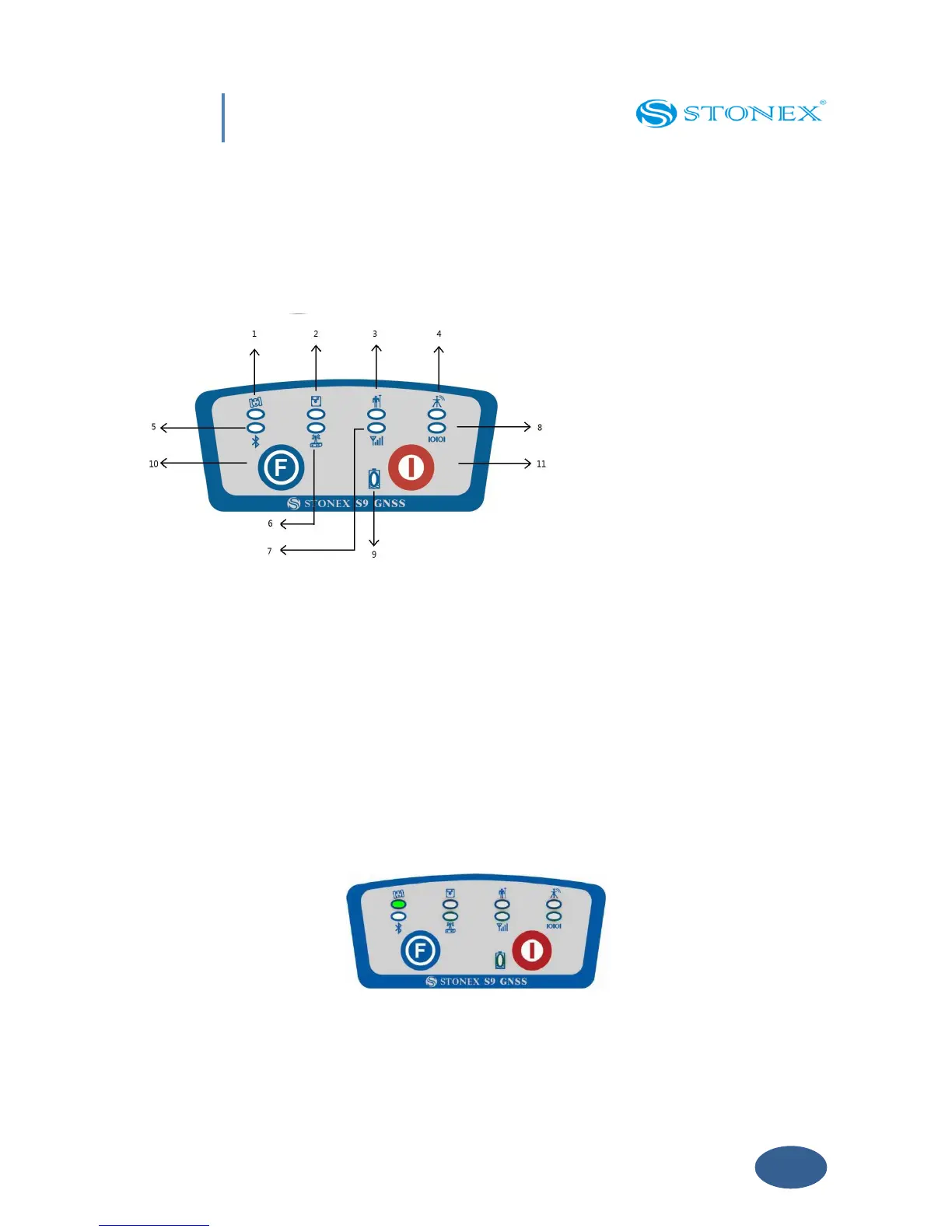

Fig. 2.6 - S8 keys and indicator leds
1. satellite led
2. static led
3. rover led
4. base led
5. Bluetooth led
6. internal radio led
7. GSM/GPRS led
8. external data link led
9. internal power led
10. Function Key
11. Power Key
The functionality as follows, from left to right:
SATELLITE led (green):
It shows the amount of locked satellites; when the receiver links one or more satellites
signal, it will start to blink every 30 seconds for a number of times equal to the number
of locked satellites.
