Chapter IV: S8 Configuration
IV.1 The installation of base and rover
BASE ROVER
TX / RX ANTENNA TX / RX ANTENNA

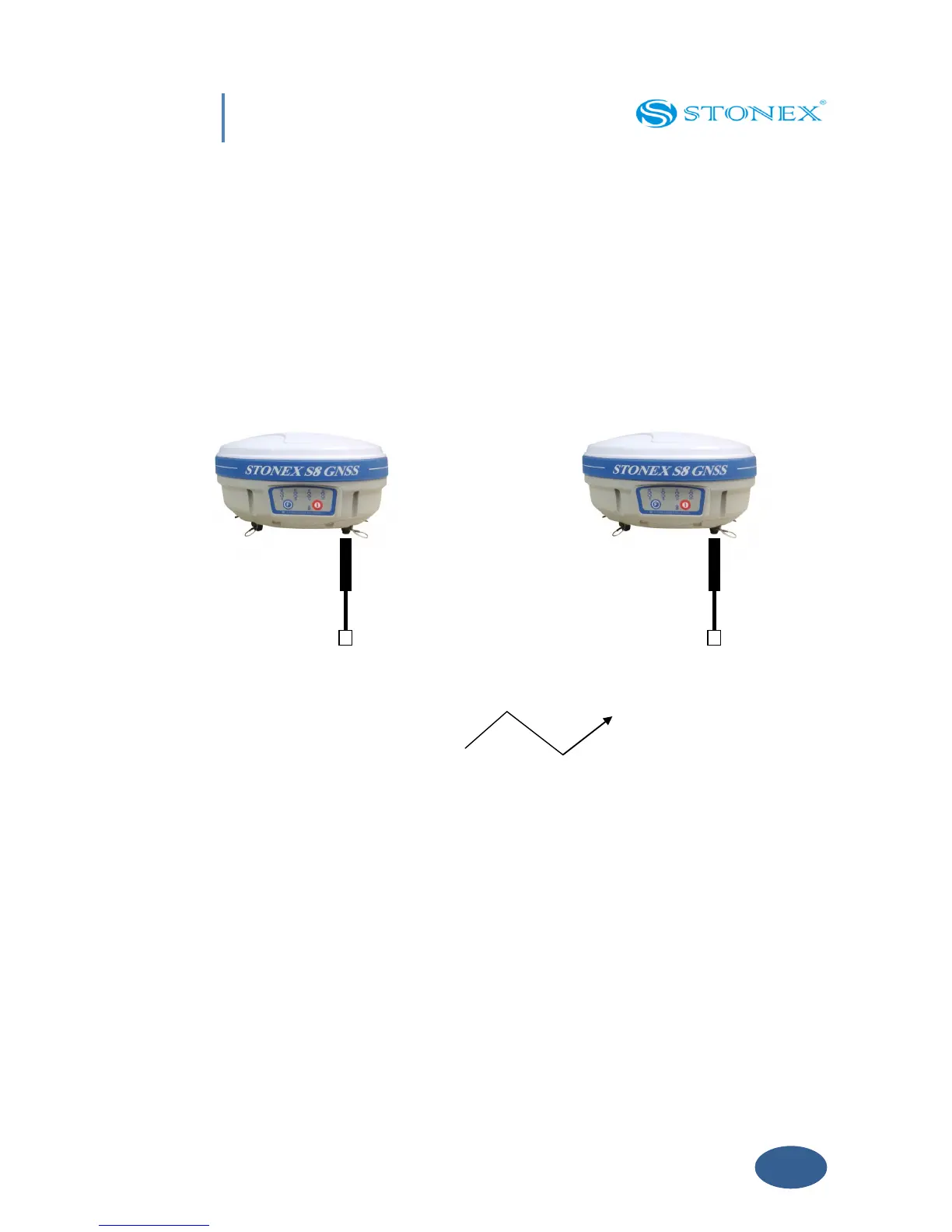

Fig. 4.1 - Base and rover configuration
Installation of Base
- Install the tripod on the chosen location, level it and attach the receiver into tribrach.
- Attach the transmitting radio antenna into the port “UHF”: using the 40cm supporting
pole is better, since increases the height of the antenna. If you are using a direct GSM
connection you should attach the gsm antenna into “GPRS” port.
- Switch on the receiver and check the working mode. If it is not correct, please see next
