Figure 5.21 :

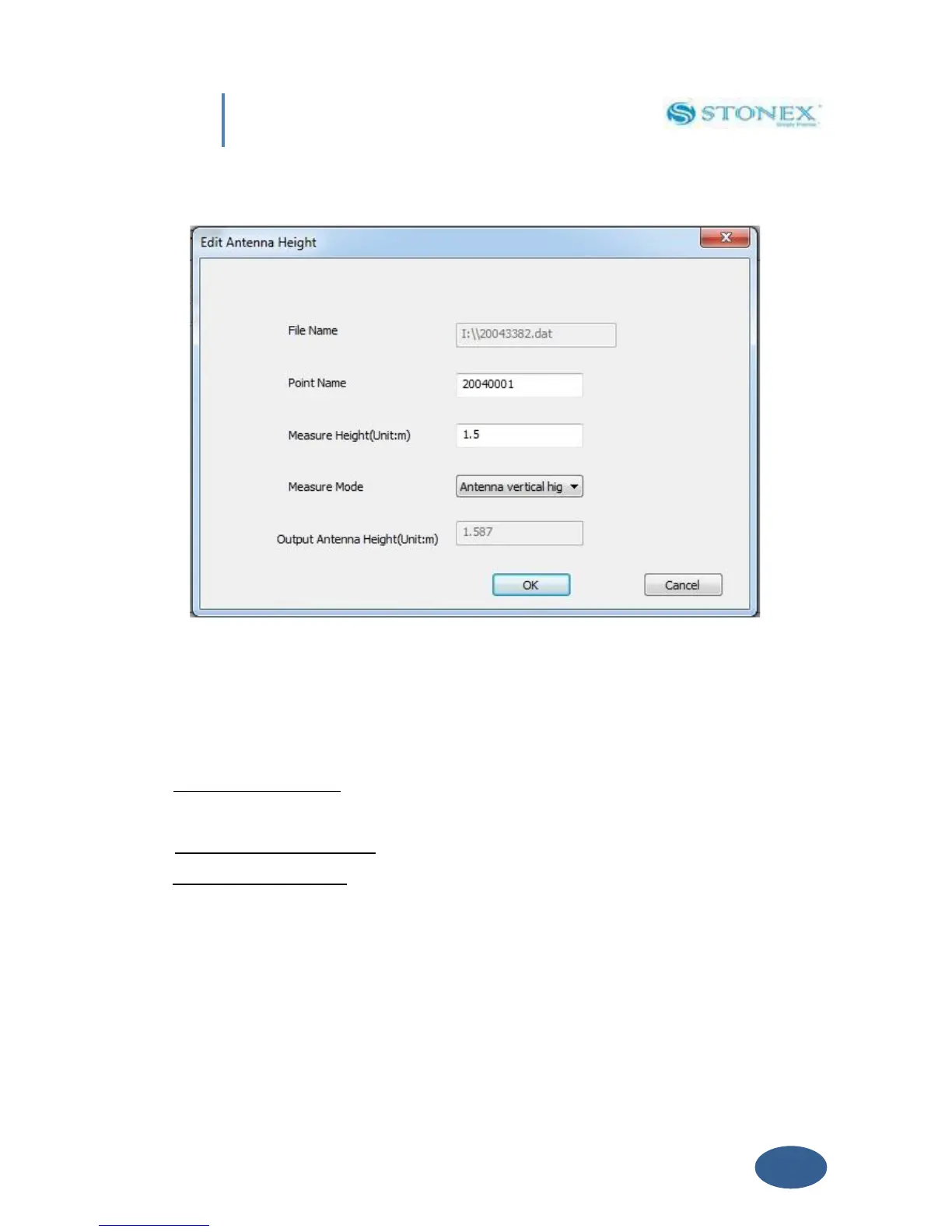

Fig. 5.21 – Edit Antenna Height window.
In the “Edit Antenna Height” menu you can modify the point name, insert the correct antenna
height in meters and specify how the height was measured (“Measure Mode” box), there are
three different option:
a) Antenna phase center : from ground to the phase center (not possible from the practical
point of view)
b) Antenna slant height mode : from ground to the white line in the middle of blue rubber.
c) Antenna vertical height : from the ground to the bottom of receiver.
In “Output Antenna Height” box you will see the resulting antenna height from ground to the
phase center.
V. 4 Serial Port Forwarding
This function is for advanced users and technical support only.
