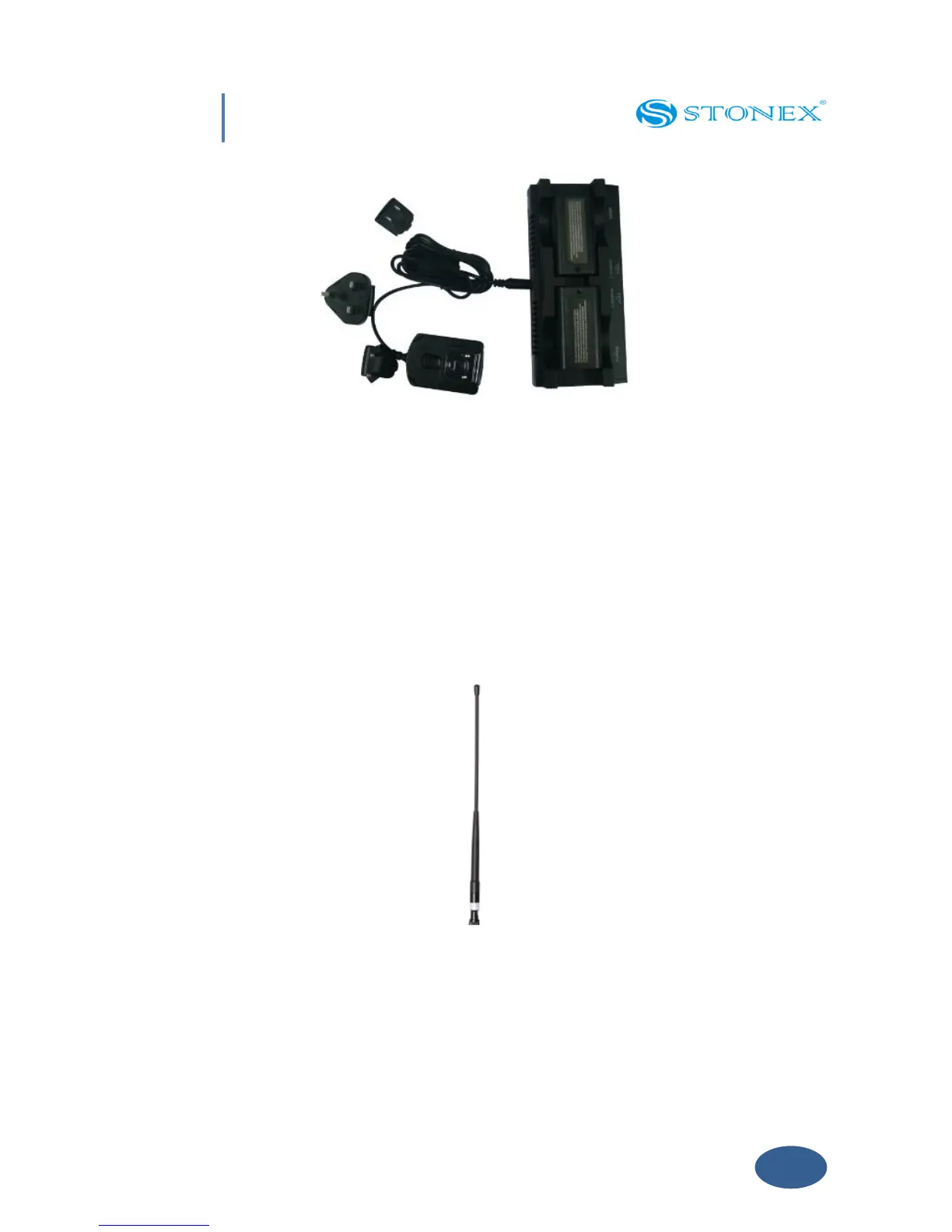

Fig. 3.5 - S8 charger and adaptor
III.3 The antennas
S8 adopts a UHF all-direction transmitting and receiving antenna. Since there are three
different internal radio settings with different frequency range, the corresponding antennas
have different length. The available range are: 410-430 MHz, 430-450 MHz and 450-470 MHz.
the corresponding antennas have length of: 40, 37,5 and 34 cm. They are suitable for field
surveying, light and durable. The gain is 2.15 dBi.
Fig. 3.6 ā built-in radio antenna (not in scale)
S8 adopts a GPRS/GSM all-direction transmitting and receiving antenna with a frequency in the
