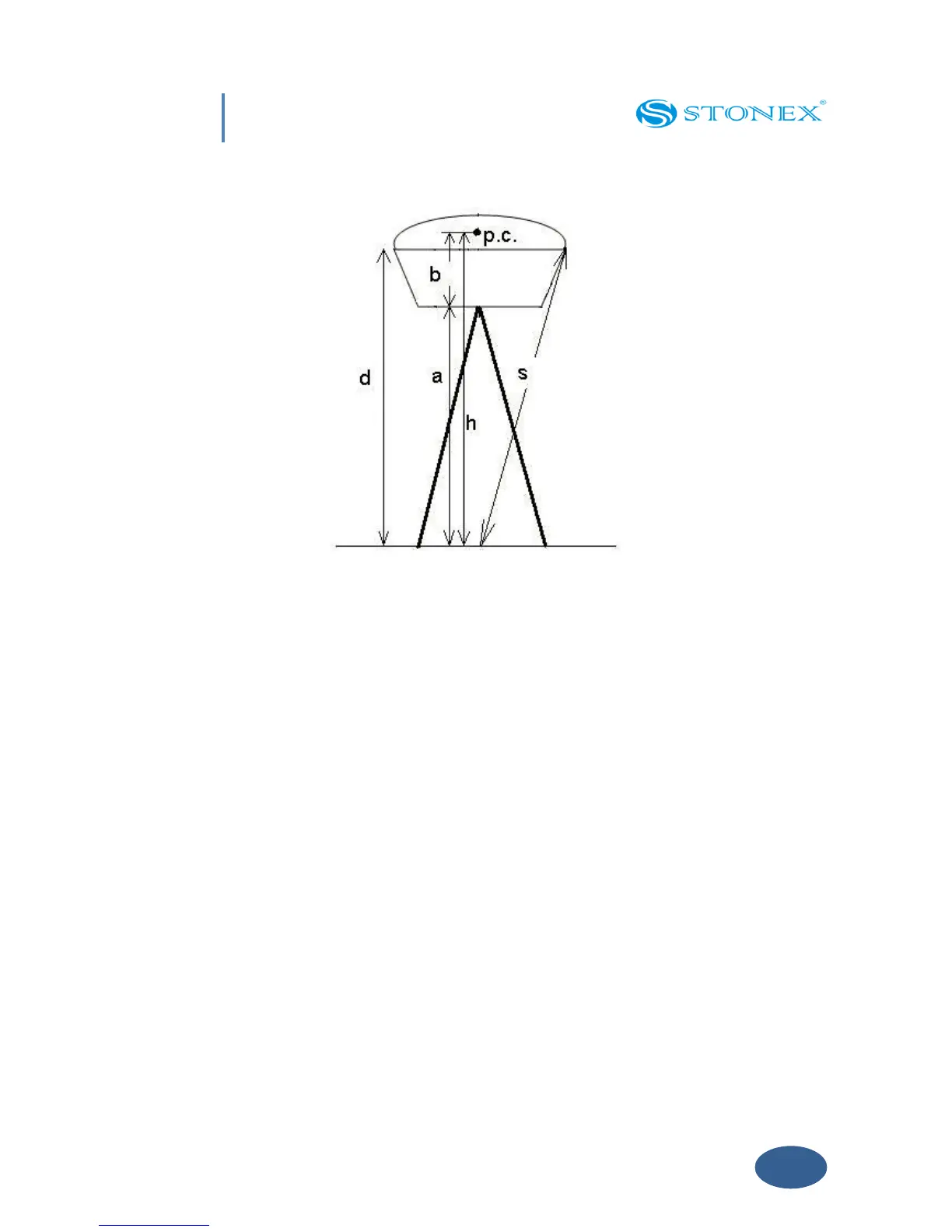

Fig. 4.5 - Different measures of the antenna height
1. In rover and base mode you have to insert the correct antenna height according to RTK
software. In STONEX
®
SurvCE , for example, the distances “a” and “s” are permitted: software
will add the distance “b” to “a” (or convert “s”) to obtain “h”. For other software please read the
specific user guide.
2. In static mode you have to write the correct antenna height in .DAT or RINEX file. If you are
using STONEX
®
GPS Processor you have to specify the correct antenna height before processing
.DAT data or exporting it into RINEX format. The same if you are using STONEX
®
Assistant for
converting .DAT into RINEX. Please read the specific manual of STONEX
®
GPS Processor, it
should be noted that however the slant height “s” corresponds to the definition “Line of Edge of
antenna”, “a” to “Bottom of antenna” and “d” is equal to “Bottom of antenna mount”.
