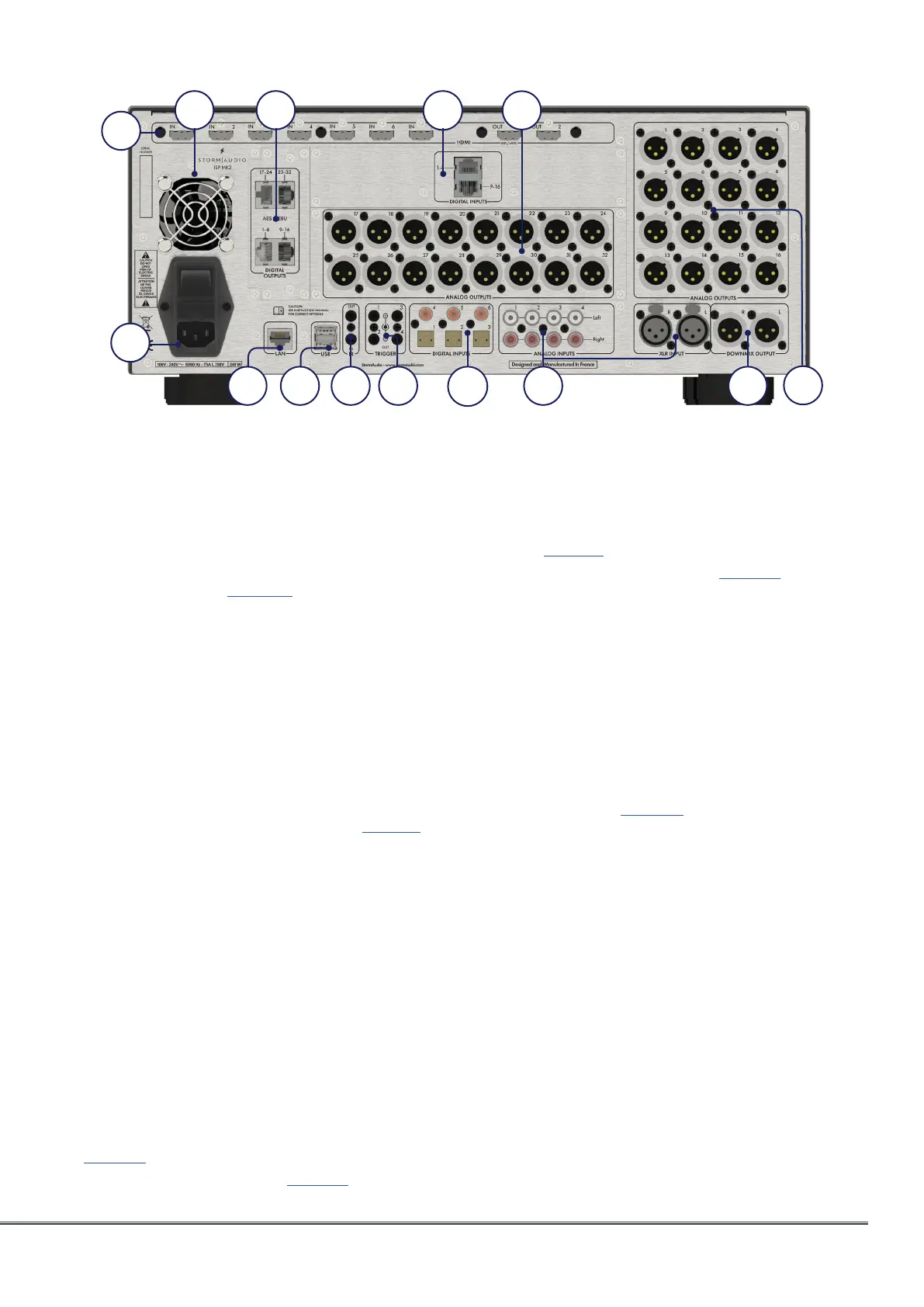

ISP Immersive Sound Processor
5
11. IR
IR input and output are provided via 3.5mm
jacks for optional control via IR remote.
12. Trigger Out
Four separate trigger outputs are provided to
control power of certain connected devices.
See “Triggers” on page 34 for configuration
information.
13. Digital Inputs
Three digital coax and 3 TOSLINK optical
digital inputs are provided for connection of
legacy digital sources.
14. Analog Inputs
Eight RCA inputs and one XLR balanced input
are provided and can be used as following
depending on the Inputs definition page 12:
4x stereo pairs,
1x 7.1 input,
3x stereo pairs with XLR input,
1x 5.1 input with XLR input.
When connected as a 7.1 input, the channel
assignment is as follows clockwise from top
left: LF, CF, LS, LB, RB, RS, SUB, RF.
15. Downmix Output
A stereo pair of XLR outputs is provided as
a dedicated 2 channel downmix output.
These outputs produce a stereo downmix
of whatever audio is playing in the selected
theater. To configure, see “Parameters” on
page 30. Downmix may be enabled for select
presets. See “Presets” on page 32.
16. Analog Output
Sixteen XLR analog audio outputs are
provided by default and fully assignable to
theaters or zones. See instructions starting
with “Building a Theater - Defining Channels”
on page 14. Outputs may also be remapped.
See “Output Mapping” on page 23. Pin 2 hot.
17. Option Analog Output
One optional module is available to allow for
up to 16ch additional analog audio outputs,
offering total 32ch XLR outputs to the ISP.
18. Optional Digital Input
One optional module is available to allow for
up to 16ch of AES/EBU audio streams to be
provided through 2x RJ45 connectors. See
“Settings” on page 30.
19. Optional Digital Output
Two optional modules are available to
support digital audio interface. One module
with 32ch digital outputs in AES/EBU format
over 4x RJ45 connector and one module
supporting the Audio Video Bridging (AVB)
Audio over IP transmission over 1x RJ45
connector.
20. Rear Panel Fan
From time to time, the ISP may automatically
turn on the fan to draw cool air through the
ISP and out the back. Do not obstruct the fan
or any airflow vents on the chassis.
9 10 12
13
18
14 15
16
11
7
8
17
20 19
