Preparation
Instructions for use • VITOMEAGLE • TVA900_EN_V1.0_05-2023_IFU_CE-MDR 15
5 Preparation
5.1 Unpacking the product
1. Carefully remove the product and accessories from the packaging.
2. Check the delivery for missing items and possible damage.
3. In the case of damage, hidden defects, and short deliveries, document their nature and extent
and contact the manufacturer or supplier immediately.
4. Keep packaging for further transport.
5.2 Reprocessing the product
Reprocess the product in line with the reprocessing instructions before using it.
5.3 Assembling the IMAGE1 PILOT
The product is designed for use indoors, particularly in operating rooms and similar surgical or
clinical establishments.
The product is operated with the IMAGE1 PILOT (TC014).
1. Fasten the IMAGE1PILOT to the operating table using a KARLSTORZ articulated stand.
2. Position the IMAGE1PILOT in such a way that the control unit can be reached with ease.
3. Fasten the holding arm to the operating table and place in position.
4. Open the KSLOCK quick release coupling (female) on the articulated stand by turning it in the
“OPEN” direction.

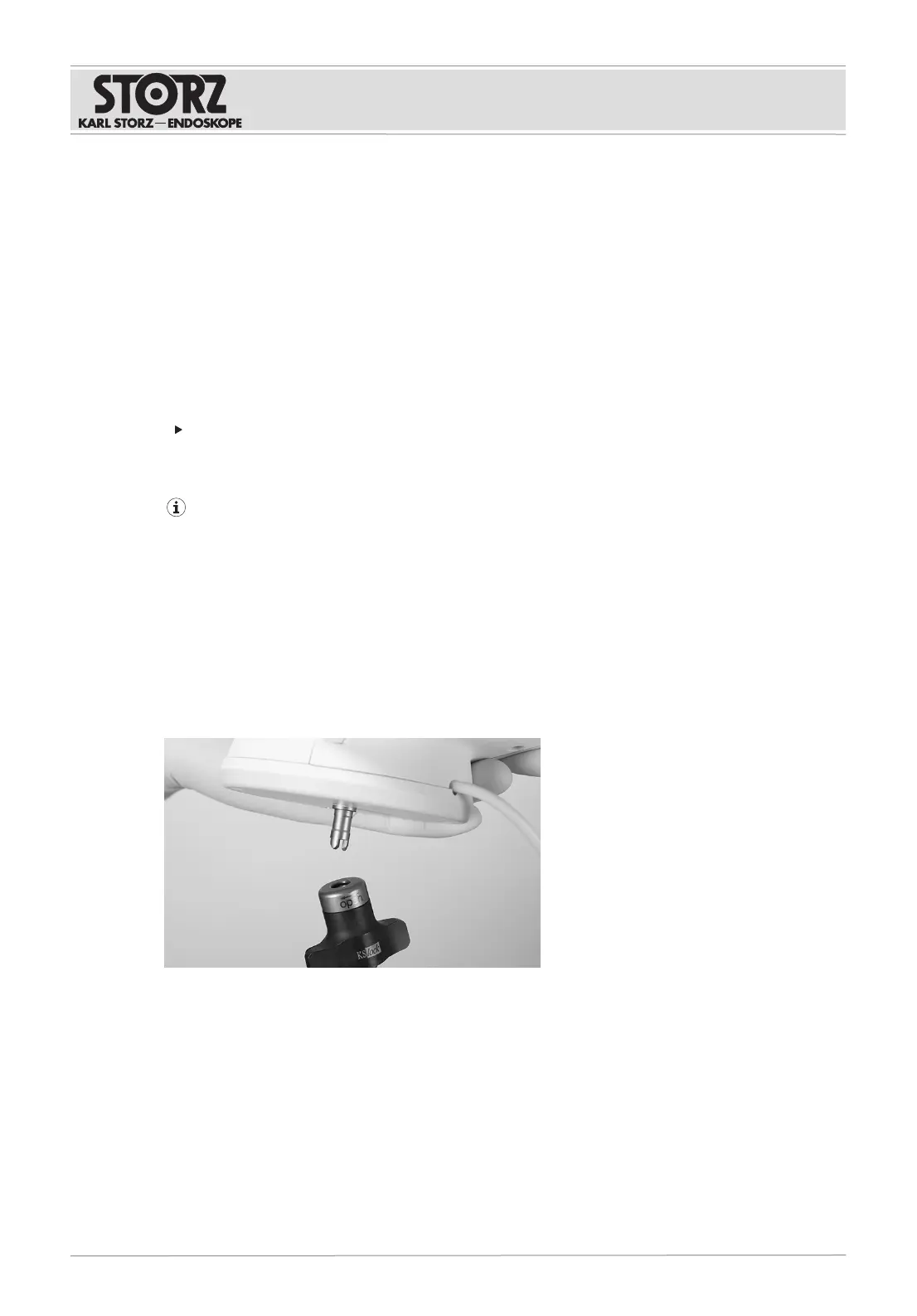

5. Insert the KSLOCK quick release coupling (male) on the bottom of the IMAGE1PILOT until it
audibly clicks into place.
