Application
Instructions for use • VITOMEAGLE • TVA900_EN_V1.0_05-2023_IFU_CE-MDR 28

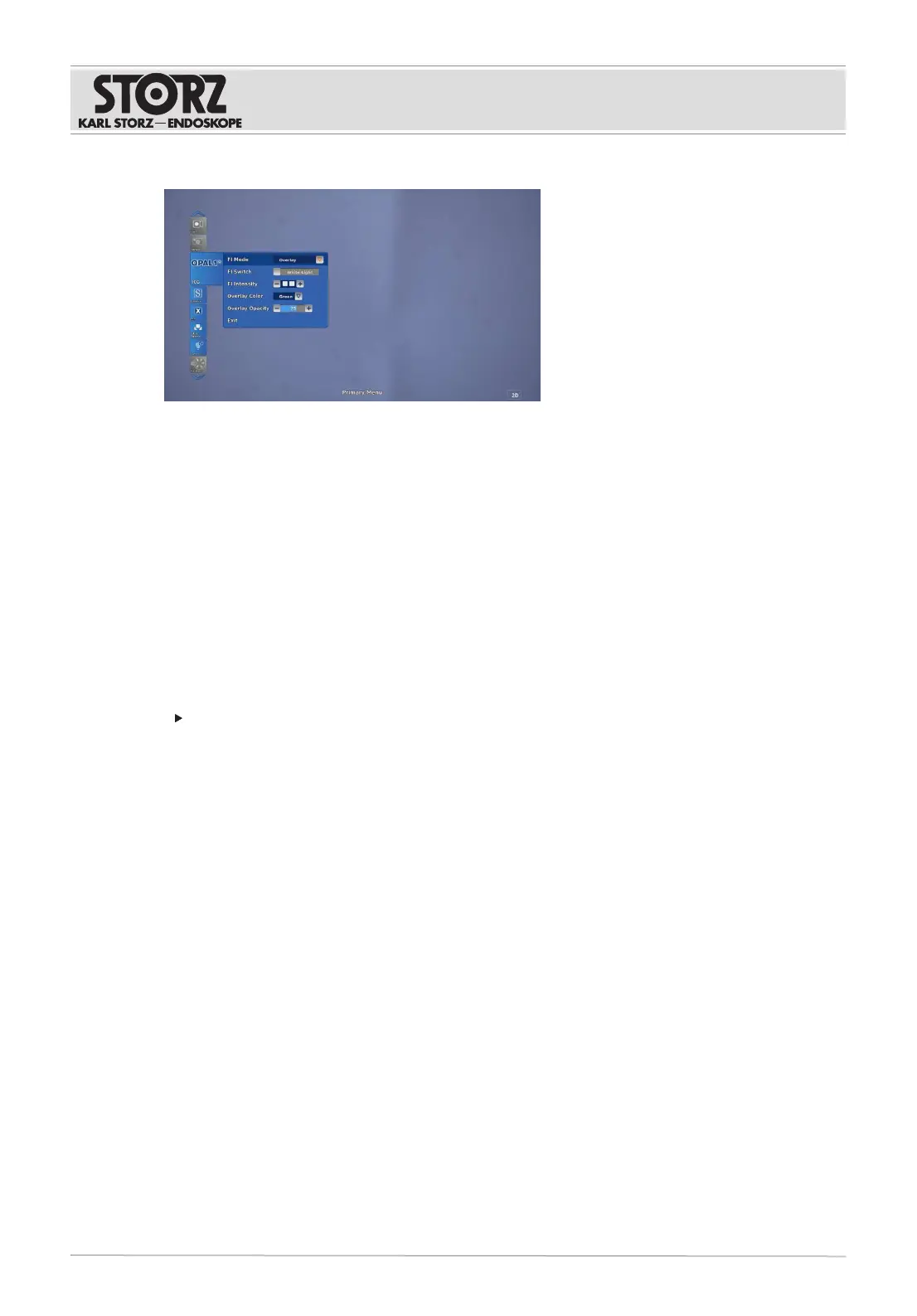

2. Select the OPAL1 button.
3. Select the Fl Mode button and the required mode.
4. Select the Fl Switch button and activate ICG.
5. To set the intensity, select the Fl Intensity button.
6. If Overlay is active, select the Overlay Color button and the required color.
7. If Overlay is active, select the Overlay Opacity button and the required opacity.
6.8 PIP-Swap function
The PiP Swap function can be assigned to a programmable button on the IMAGE1PILOT or
VITOMEAGLE. Where more than one camera LINK module is connected to the IMAGE1 platform, the
imaging camera LINK module can be switched using the PiP Swap function.
Only one fluorescent device and one light source are supported during endoscopically assisted
microsurgery (EAM).
Press the PiP Swap function button to switch the image from the primary source to the
secondary source.
