4. Loosenthetwoscrewssecuringthesuctiontubeontheprintblock.

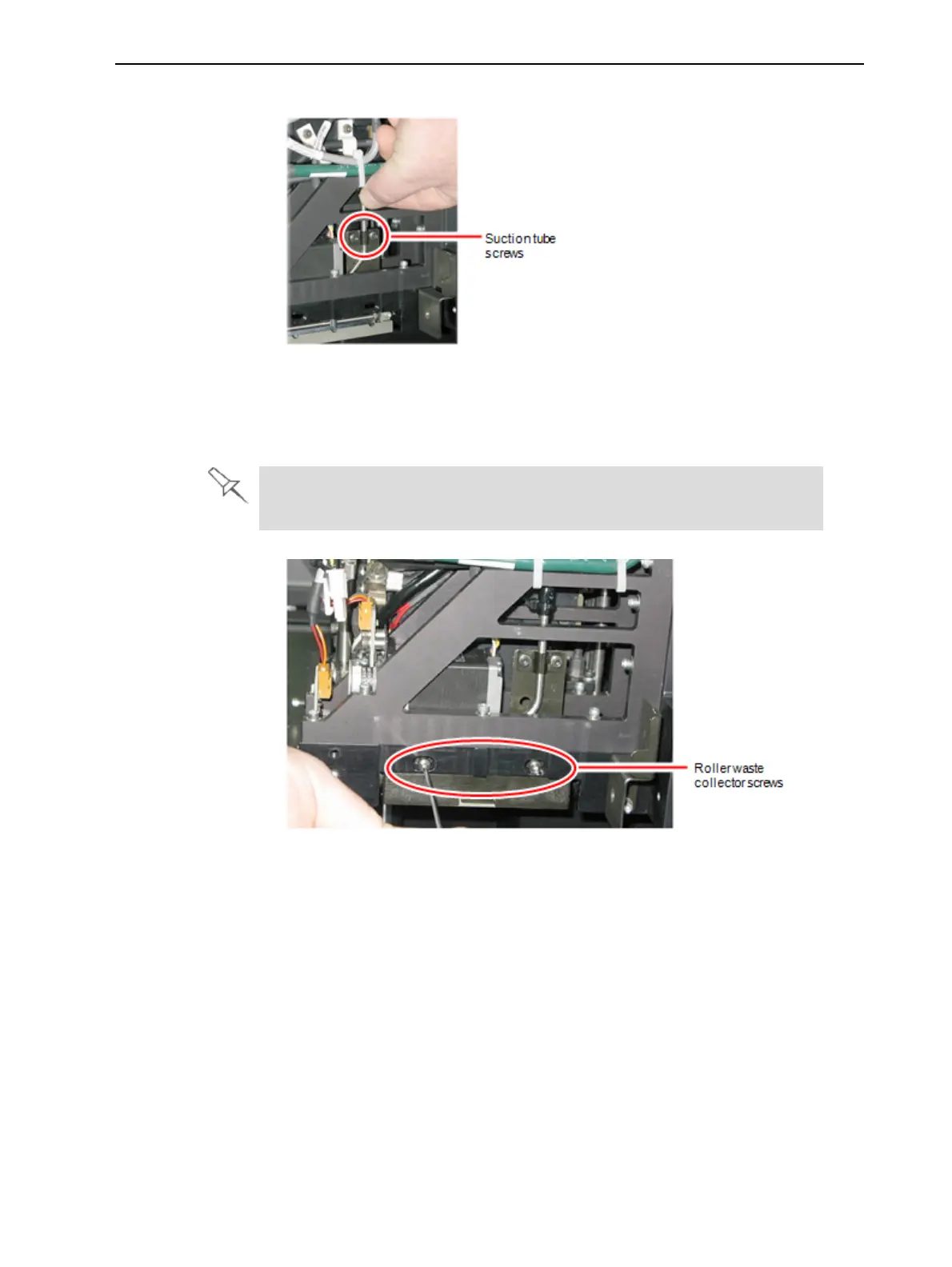

Figure6-37Liftingthesuctiontube
5. Liftthesuctiontubetosecureitinaraisedposition.
6. Removethetwoscrewssecuringthecoveringoftherollerwastecollector
andremoveit.
Beverycarefultosavethecoveringscrews.Thesearespecialscrews;if
theyarelost,youneedtoorderreplacements.
Figure6-38Removingtherollerwastecollectorcovering
7. Removethecoveringbypullingitout,andthenlowerit.
