Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-38

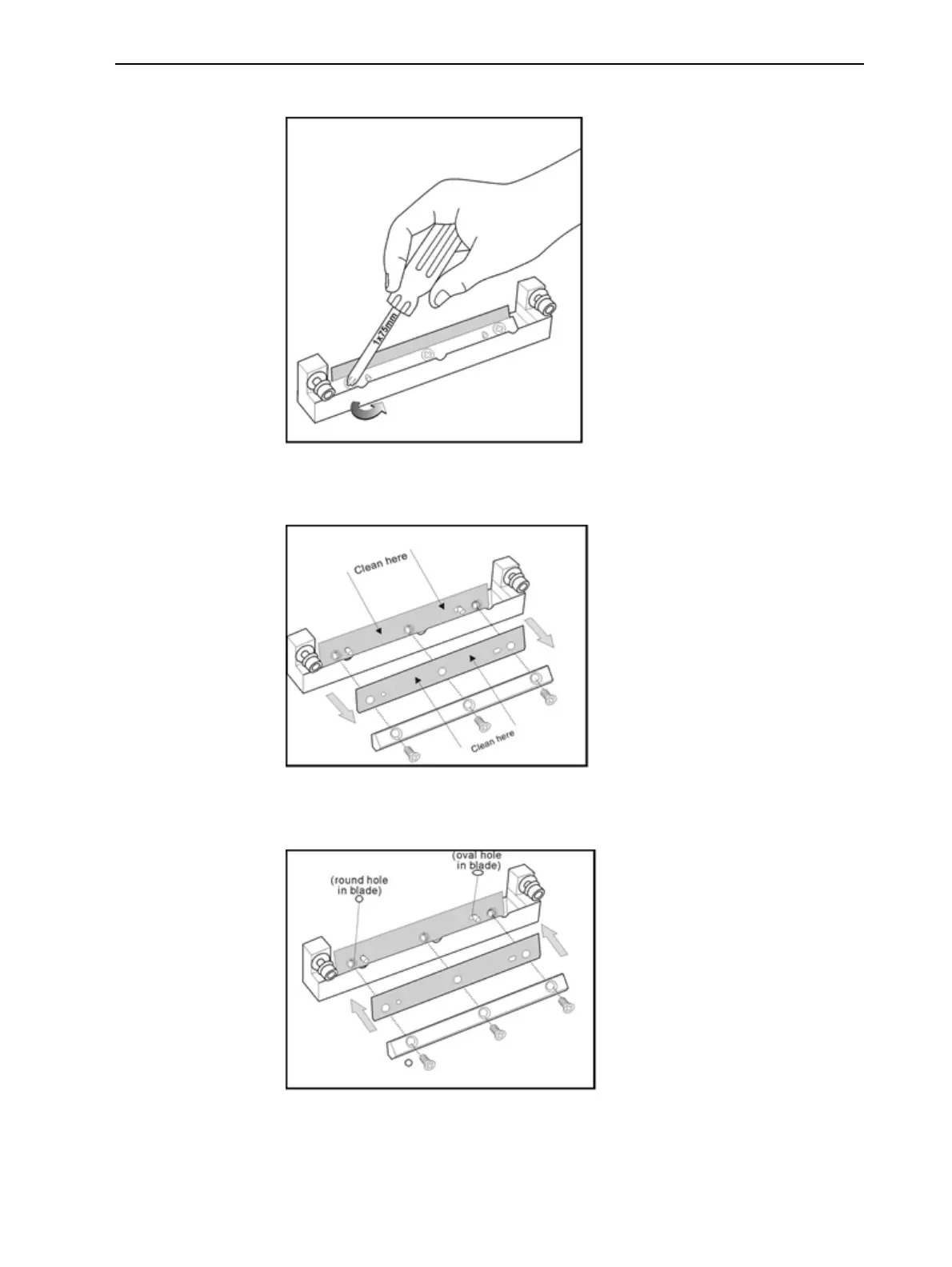

4. Removethescrewsthatsecuretherollerscraperassembly.
Figure6-43Removingtherollerscraperscrews
5. Removethescraperbladeanddiscardit.
Figure6-44Removingtheoldrollerscraperblade
6. Placethenewscraperbladeontothepinsintheholder,asshown.
Figure6-45Insertingthenewrollerscraperblade
