Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-46
9. Whenthefollowingscreenappears,tapeasheetofpinkpapertothe
surfaceleftofthebuildtray,closethecoverandclickNext.

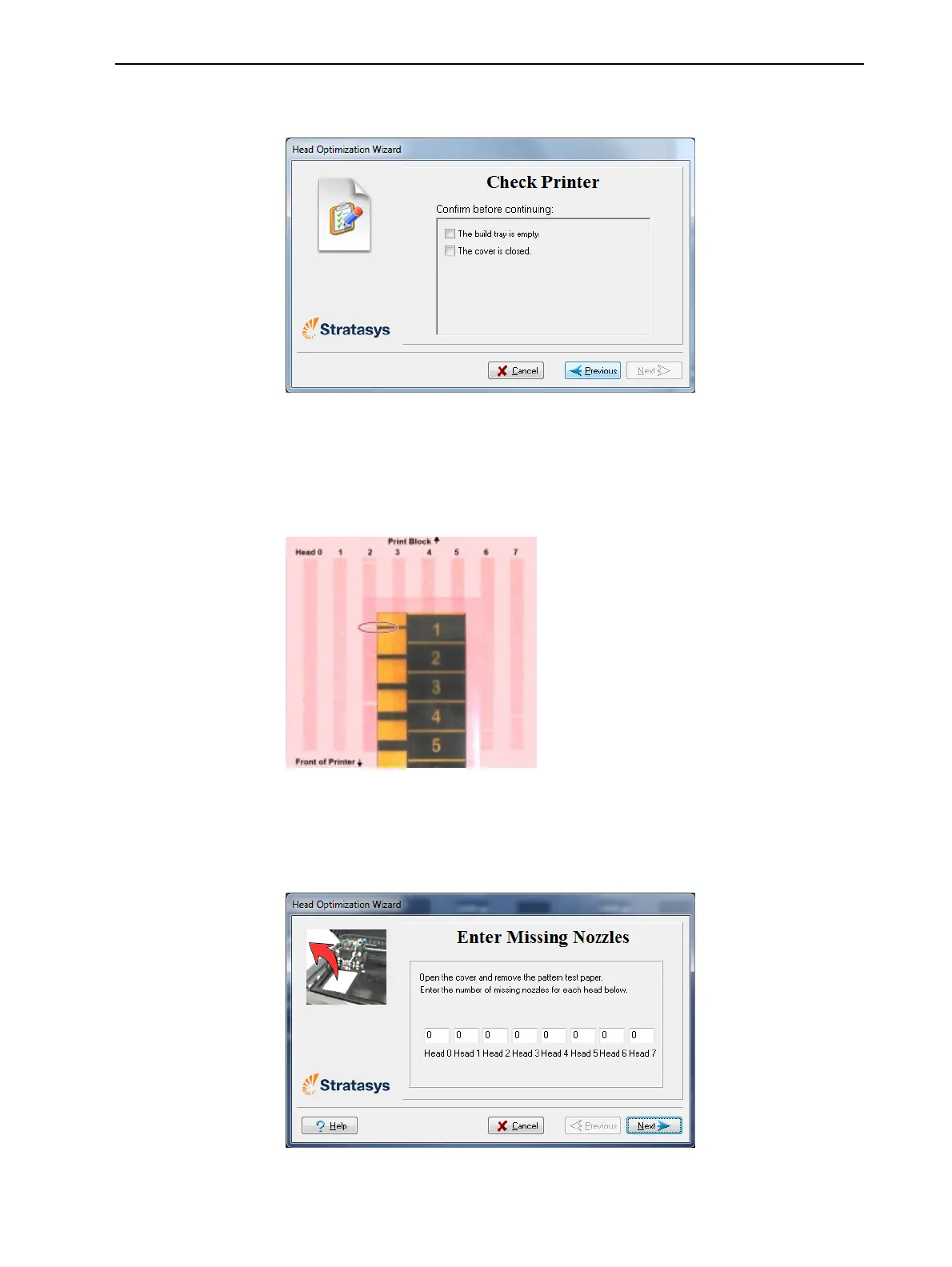

Figure6-58Preparationsconfirmation
TheprinterprintsaframeonthebuildtrayandthenprintsthePattern
Test.
10.WhenthePatternTestisprinted,carefullyinspectit,usingtheMissing
NozzlesRulertoseeiftherearemissinglines.
Figure6-59InspectingthePatternTest
Eachmissinglinerepresentsafaultynozzleintheprinthead.
11.Inthefollowingwizardscreen,enterthenumberofmissingnozzlesfor
eachprintheadandclickNext.
Figure6-60Enter Missing Nozzlesscreen
