Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-58

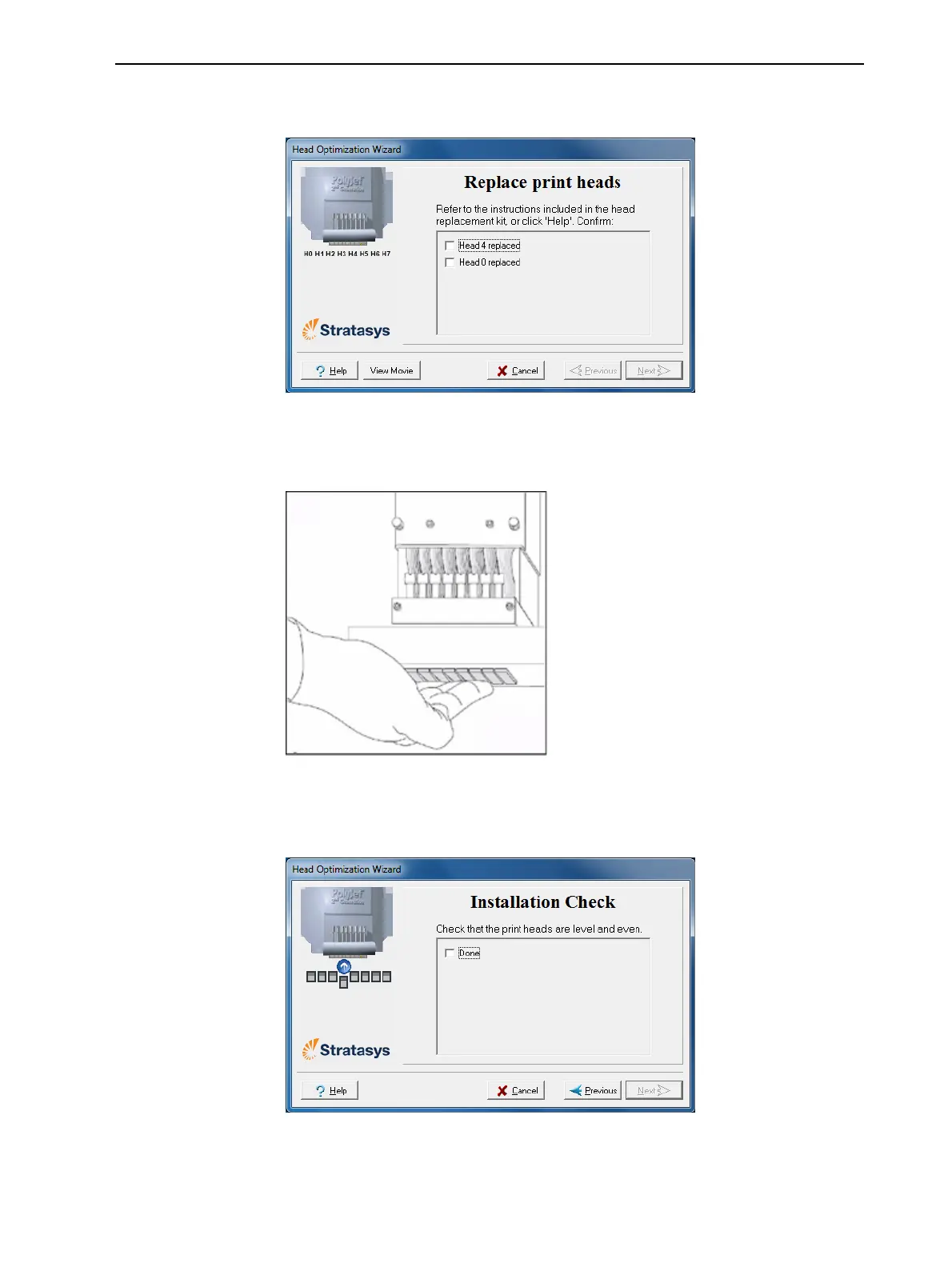

20.IntheReplace print heads screen,selectthecheckboxtoconfirmthat
youhavereplacedthehead(s),andclickNext.
Figure6-80Headreplacementconfirmation
21.Withyourfingers,makesurethatthenewheadislevelandevenwiththe
otherheads.

Figure6-81Checkingthelevelofthenewhead
22.Confirmthattheheadsarelevelbyselectingthecheckboxinthe
followingwizardscreen,andclickNext.

Figure6-82Installation-checkscreen
