Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-75
ThewizardoperatestheUVlampsandchecksiftheirpoweriswithinthe
acceptablerangeforeachprintingmode.
Note: Themodecurrentlybeingcheckedappearsinthelower-leftcornerof
theprinterinterface.

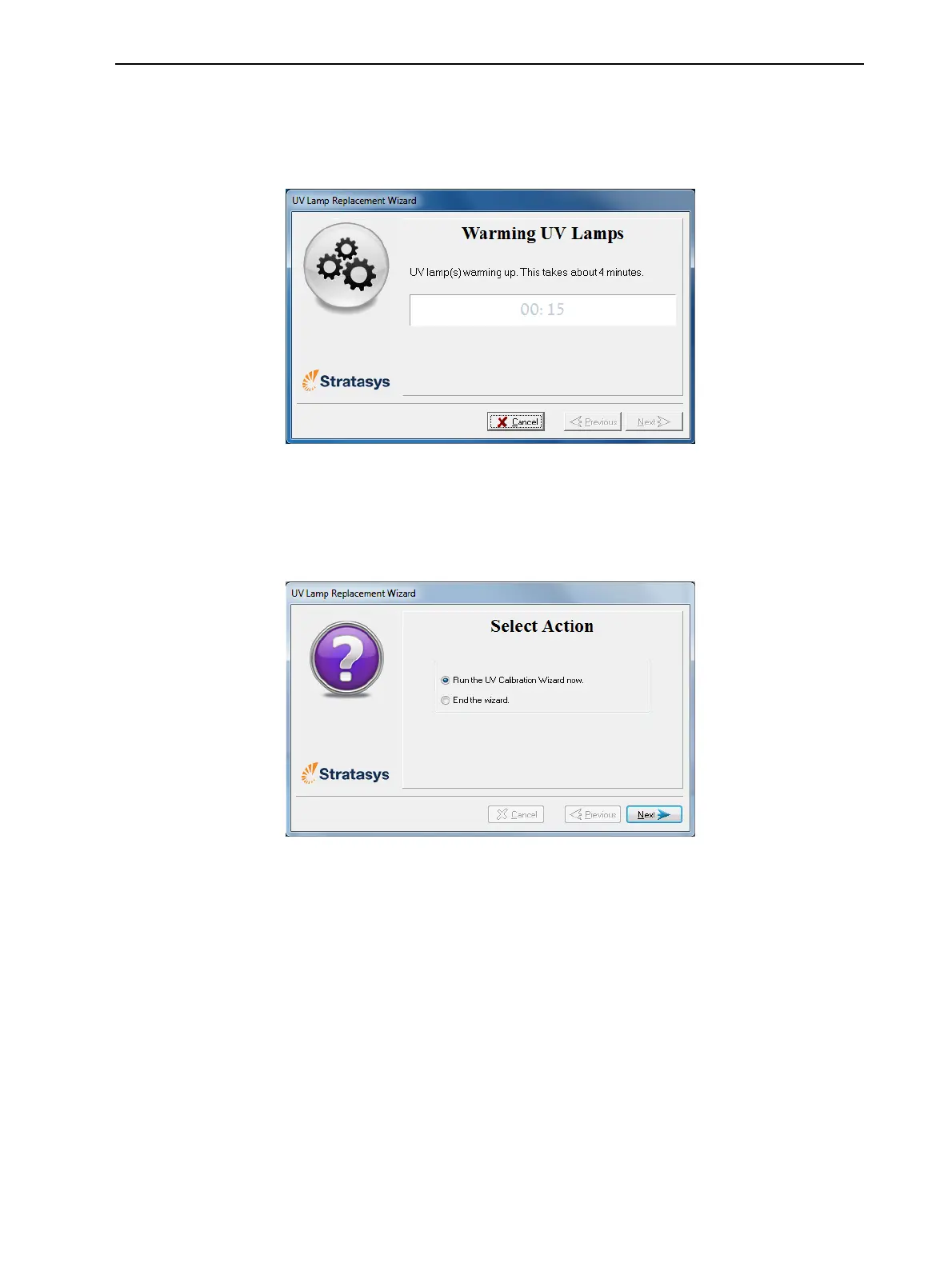

Figure6-115StatusscreenduringUVlampcheck
AfterreplacingaUVlamp,itisrecommendedthatyoucalibrateitspower
forthevariousprintingmodes.Thenextscreenallowsyoutocontinueto
theUVCalibrationwizard"TestingandCalibratingtheUVLamps"on
page1).
Figure6-116Wizardcontinuationscreen
