Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-10
Objet Studio
Commands
Menu
Clickingthe iconintheupper-leftcorneropenstheObjetStudio
Commandsmenu.Thismenudisplaysbasicapplicationcommandsand
options.

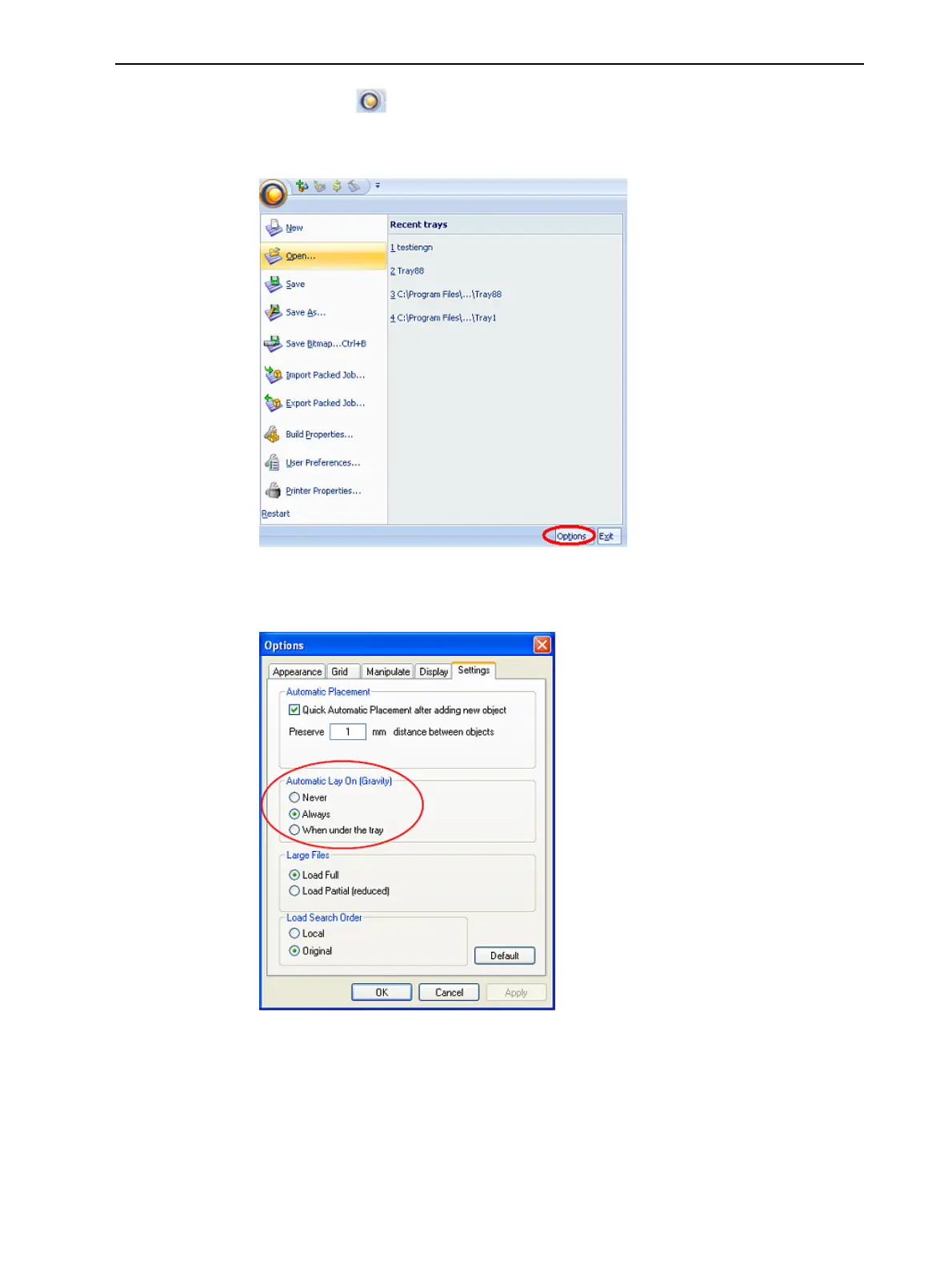

Figure5-7ObjetStudioCommandsmenu
The OptionsbuttonopensadialogboxforcustomizingObjetStudio.
Figure5-8Optionsdialogbox
Model Tree
Pane
TheModel Treepaneliststheobjectsplacedonthebuildtrayinaparent-
childhierarchy.Bydefault,thepane“floats”—thatis,youcanmoveitto
anotherpositiononthescreenandresizeit.Alternatively,youcanfixits
positionattheleftoftheapplicationwindow,andevenhideit.
