Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-14
independentparts.TheeffectsofselectingtheAssemblycheckbox—in
boththemodeltreeandthebuildtraydisplay—areshowninthefollowing
figures.

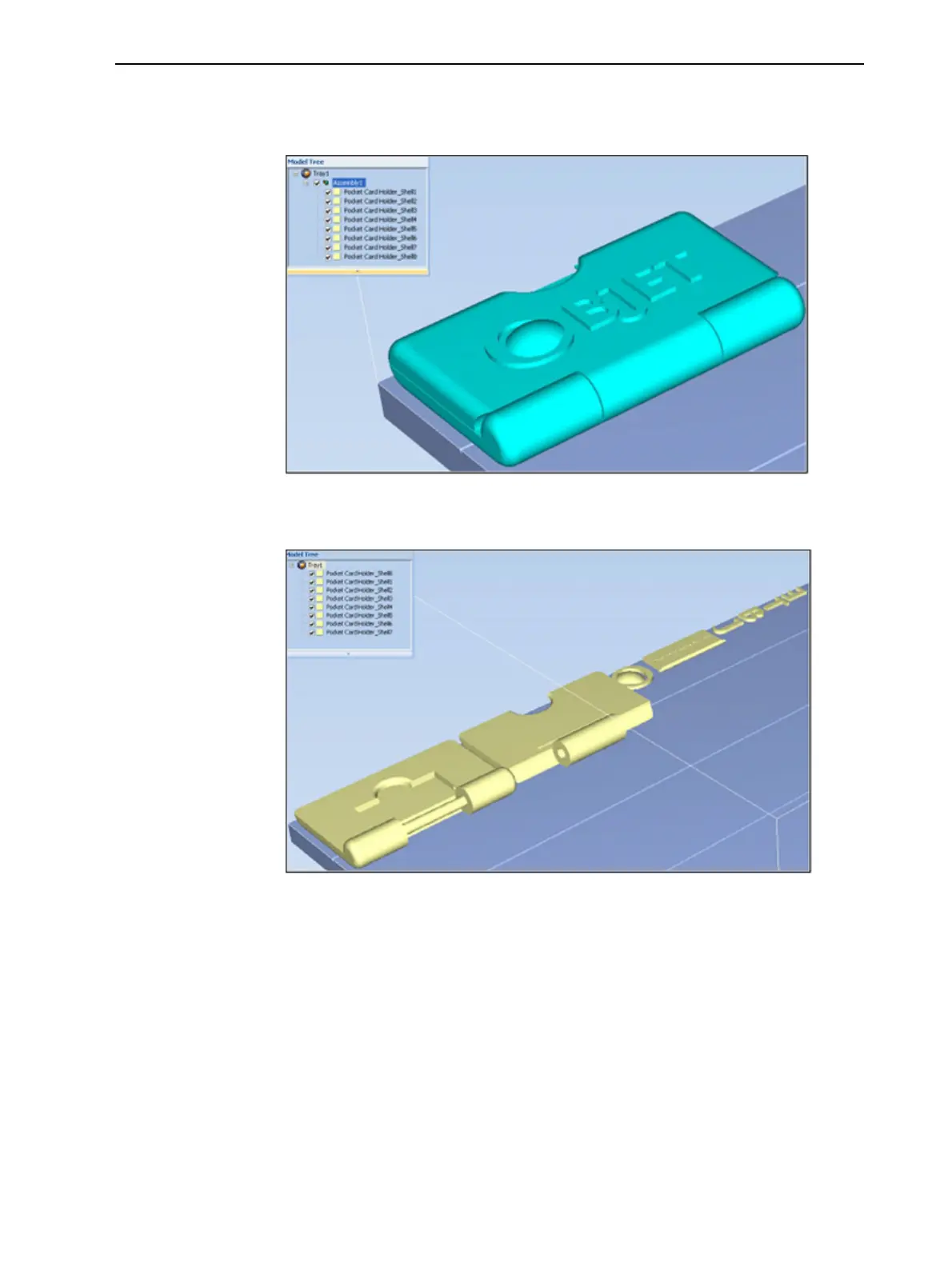

Figure5-11Assemblycheckboxselected—stlfilesareplacedasan
assembly
Figure5-12Assemblycheckboxnotselected—stlfilesareplacedas
parts
TheModel Settingsribbonisdisplayedwhenobjectsareplacedonthe
buildtray.
5. Selectanyofthefollowingoptions,asrequired:
❒ Units—Millimetersorinchesfortheobject’sunitsofmeasure.
The3Dfilecontainstheobject'sproportions,butnotitsunitsof
measure.Therefore,makesuretocorrectlyselecteithermillimetersor
incheswheninsertinganobject.Otherwise,thesizeoftheobjecton
thebuildtraywillbeeithermuchtoolargeormuchtoosmall.To
changethemeasurementunitsofobjectsalreadyplacedonthetray,
see"MeasurementUnits"onpage5-38.
