Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-46
Display Options
Viewing
Objects
FromtheViewmenu,youcanchangethewayobjectsaredisplayed.The
defaultmethodfordisplayingmodelsonthebuildtrayisassolid(“shaded”)
objects.

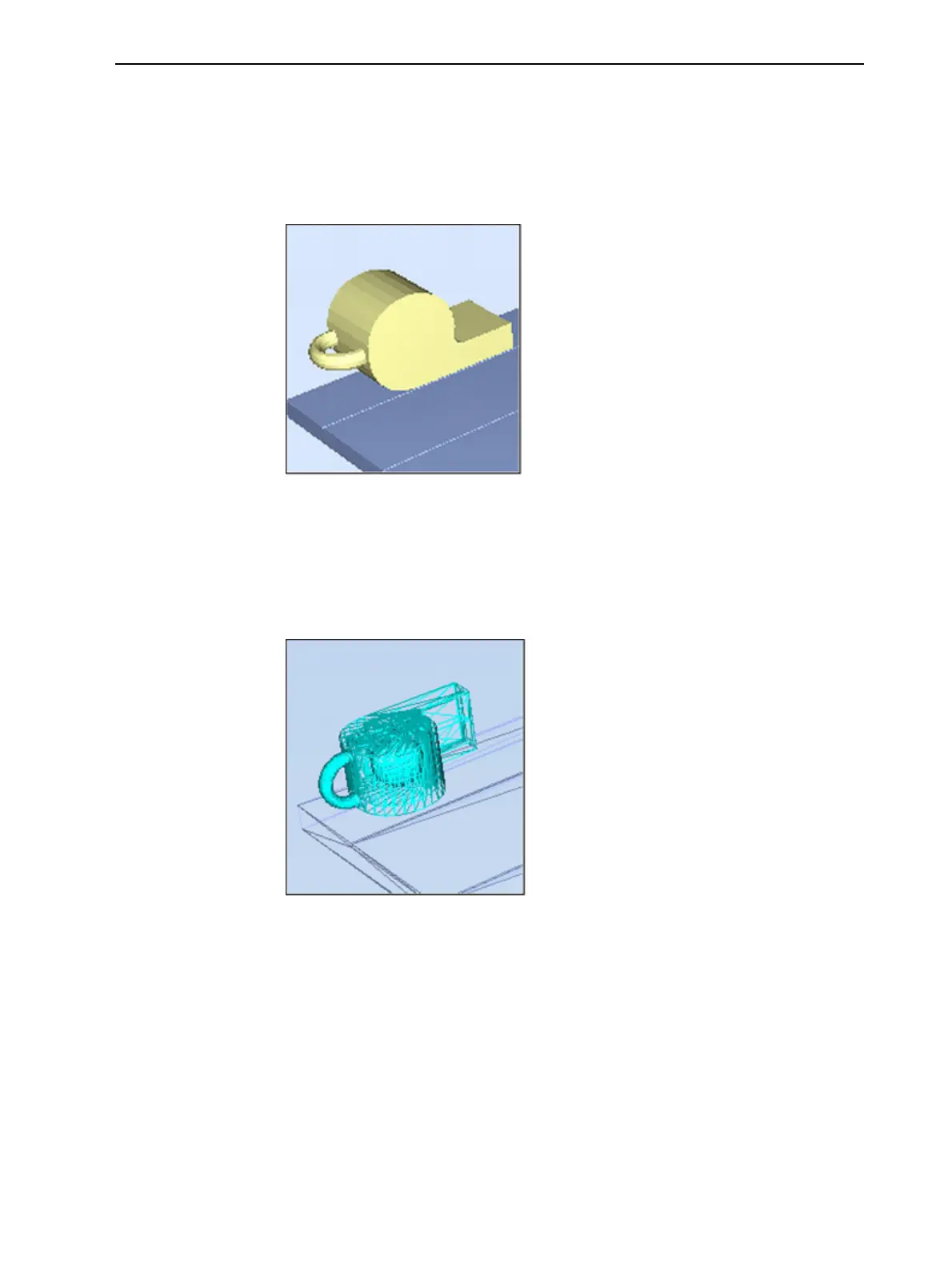

Figure5-52TrayandmodeldisplayedinShadedview
TheotherdisplayoptionsareWireFrameandPoints.
TodisplaythebuildtrayinWireFrameview:
➢ FromtheViewmenu,selectWireFrame.
Figure5-53TrayandmodeldisplayedinWireFrameview
Toreverttotheshadedview:
➢ FromtheViewmenu,selectShaded.
