Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-45
Toseparateassembliesintoindividualobjects(stlfiles):
1. Selecttheassembly(eitheronthebuildtrayorinthemodeltree).
2. FromtheObjectmenu,selectUngroup.
Inthemodeltree,theelementsarenotpartsofanassembly.

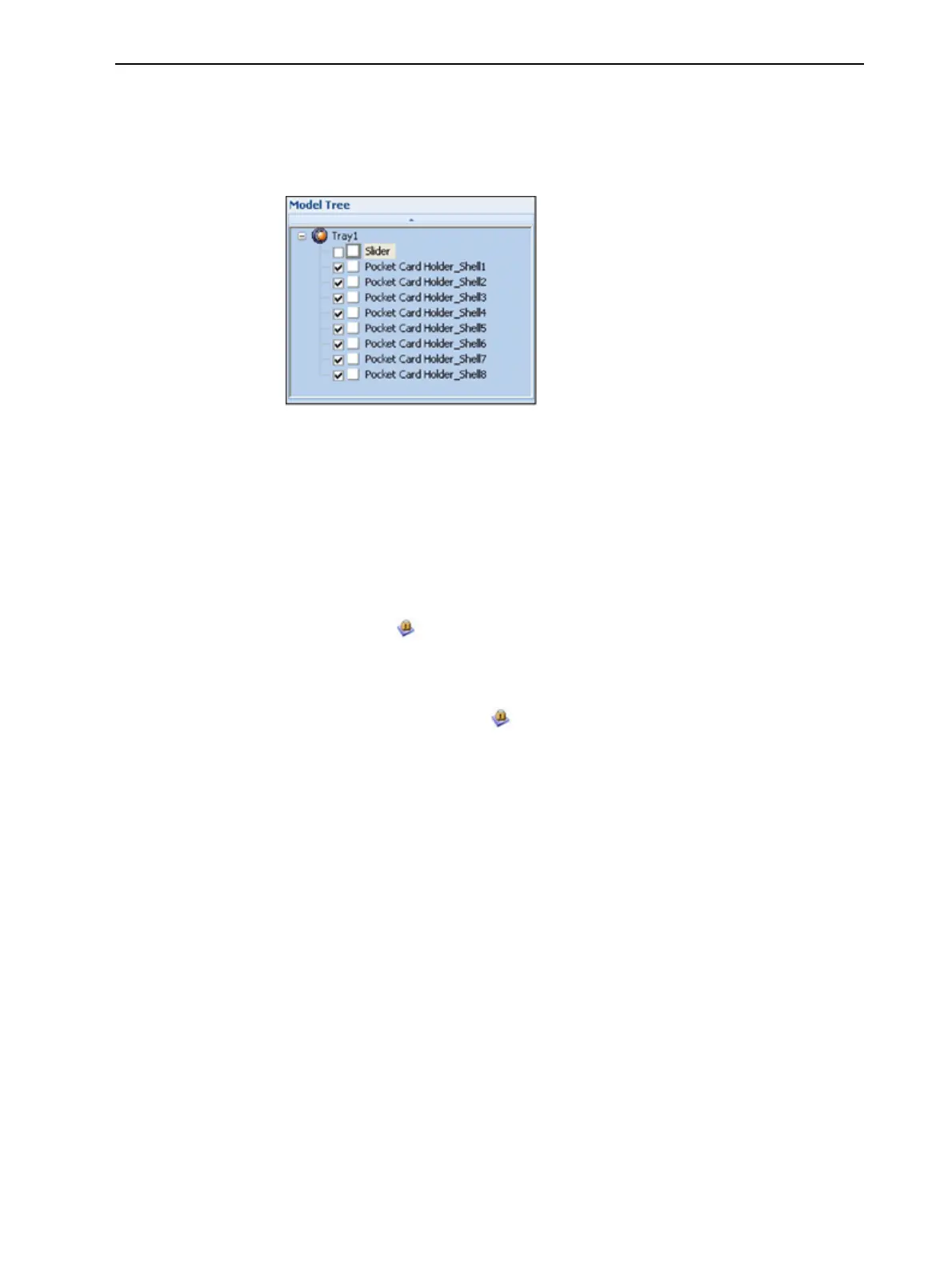

Figure5-51Separateobjectsinthemodeltree
Freezing Model
Orientation
Ifyoumanipulateanobjectonthebuildtray,youcanfreezeitsorientationso
thatitdoesnotchangewhenyoupositionitautomatically(see"Automatic
Positioning"onpage5-32).
Tofreezeanobject:
1. Selectanobjectonthebuildtray.
2. OntheModel Settings ribbon,intheManipulategroup,orontheModel
Toolbar,click .
Tounfreezeanobject:
➢ Selecttheobjectandclick (tode-selectit).
