Strobel 441-1 - Needle Setting; Height Adjustment of the Needle (Fig. 13)

23 MA_441-1-2_A1_180830_en
4.10
The setting dimension for the needle bar can be found in the table in point "
Needle setting
2.5
Abridged version of adjustment manual".
4.10.1
Using this special construction, the height of the needle can be adjusted. This
device proves to be quite useful when using different needle thicknesses. The
height of the needle can be adjusted by turning the eccentric (6), which features
a groove, that is located on the front side of the needle bar head. Make sure
that the needle of any thickness passes over the feed cup with a gap of about
0.1 mm in the area between the point and the eye of the needle. After
loosening the screw (5) of the needle setting plate (4) and then adjusting the
height of the needle, the screw (5) has to be tightened again.

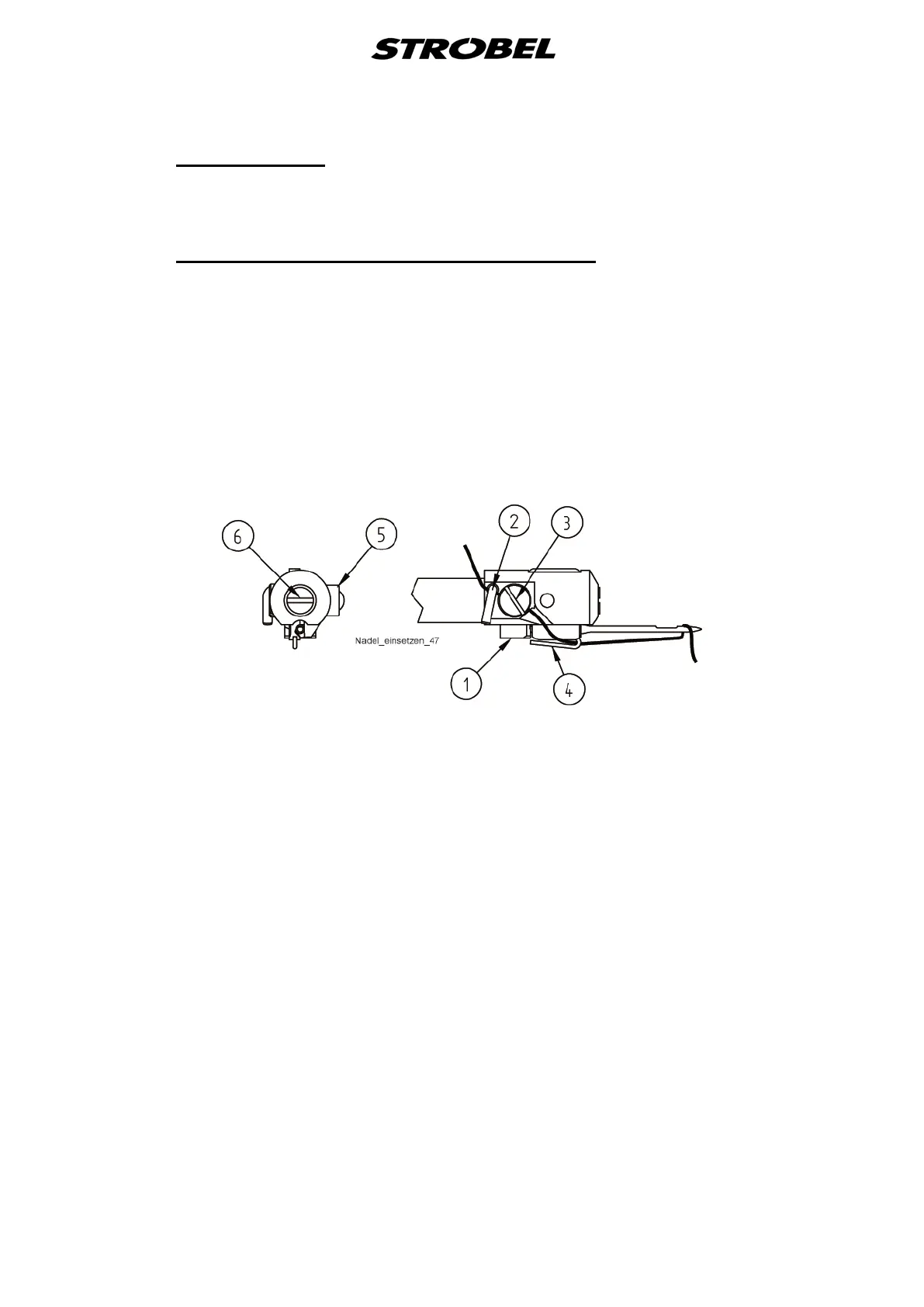

Height adjustment of the needle (Fig. 13)
Fig. 13
