5.1
Notes on repair and adjustments
In addition to the transport and front cups attached to the normal version,
optional transport and front cups are offered according to the various materials
to be processed and requirements with suitable gearing and edge heights; they
can be freely combined with each other.
Feed cup assembly
5.2
If the feed cup in the machine should be exchanged with other geared feed
cups, then proceed first as follows:
Replacing the feed cup
1. Remove material guide (1) - 2x screw (2). (Fig. 22)
2. Pull out needle (1), cylinder head screw (2), needle clamping plate (3),
pressure spring (4) and needle setting plate (5). (Fig. 23)
3. Screw out the flat-head screws (6) of the feed cup attachment; take feed
cup off upwards. (Fig. 14)
4. The assembly of the exchanged feed cup is done in reverse order.

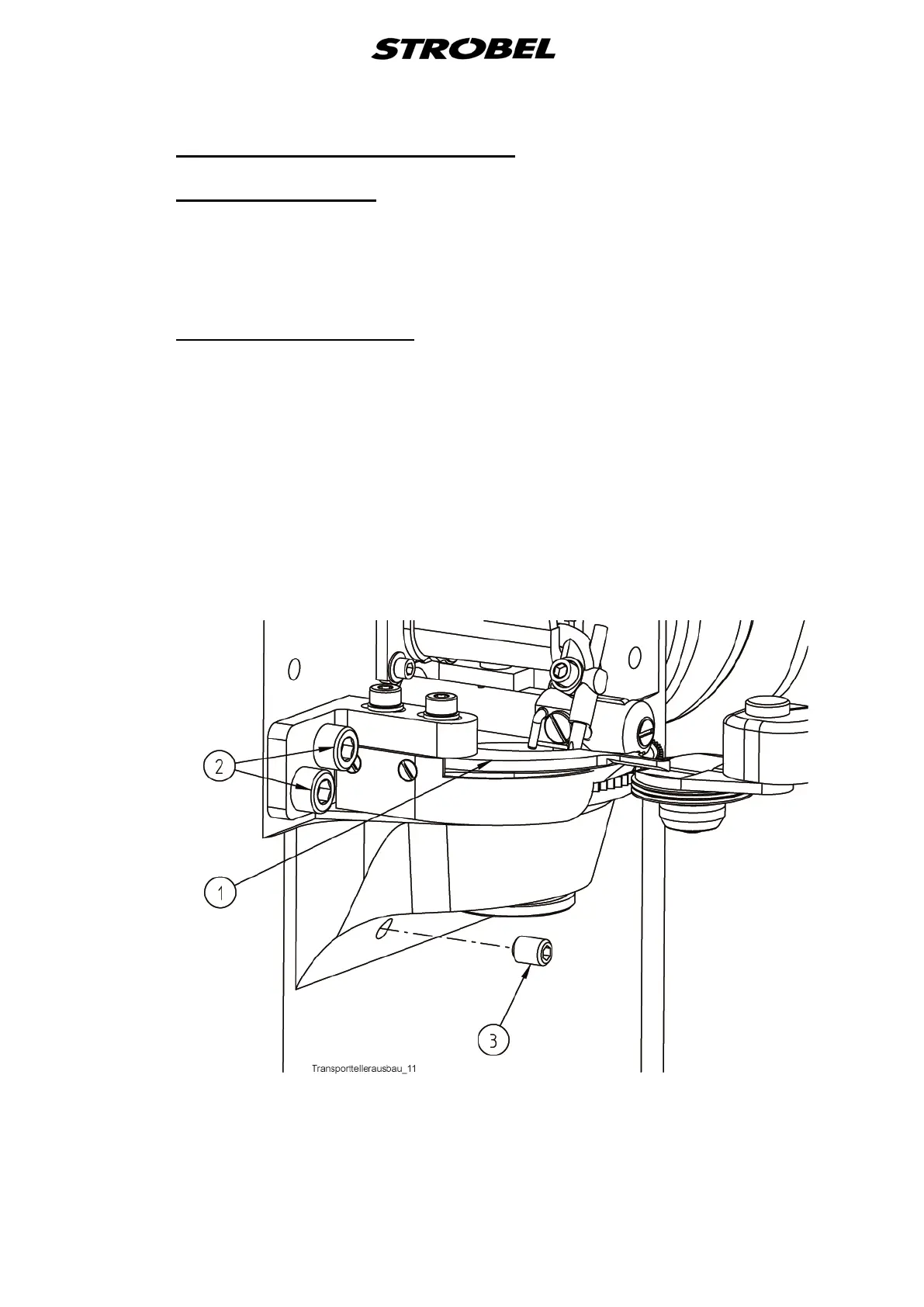

Fig. 22
