48 MA_441-1-2_A1_180830_en
5.3
(See also operating instructions point "4.1.1.1 Processing with gathering
device")
Setting and installation instruction for the
Strobel gathering device

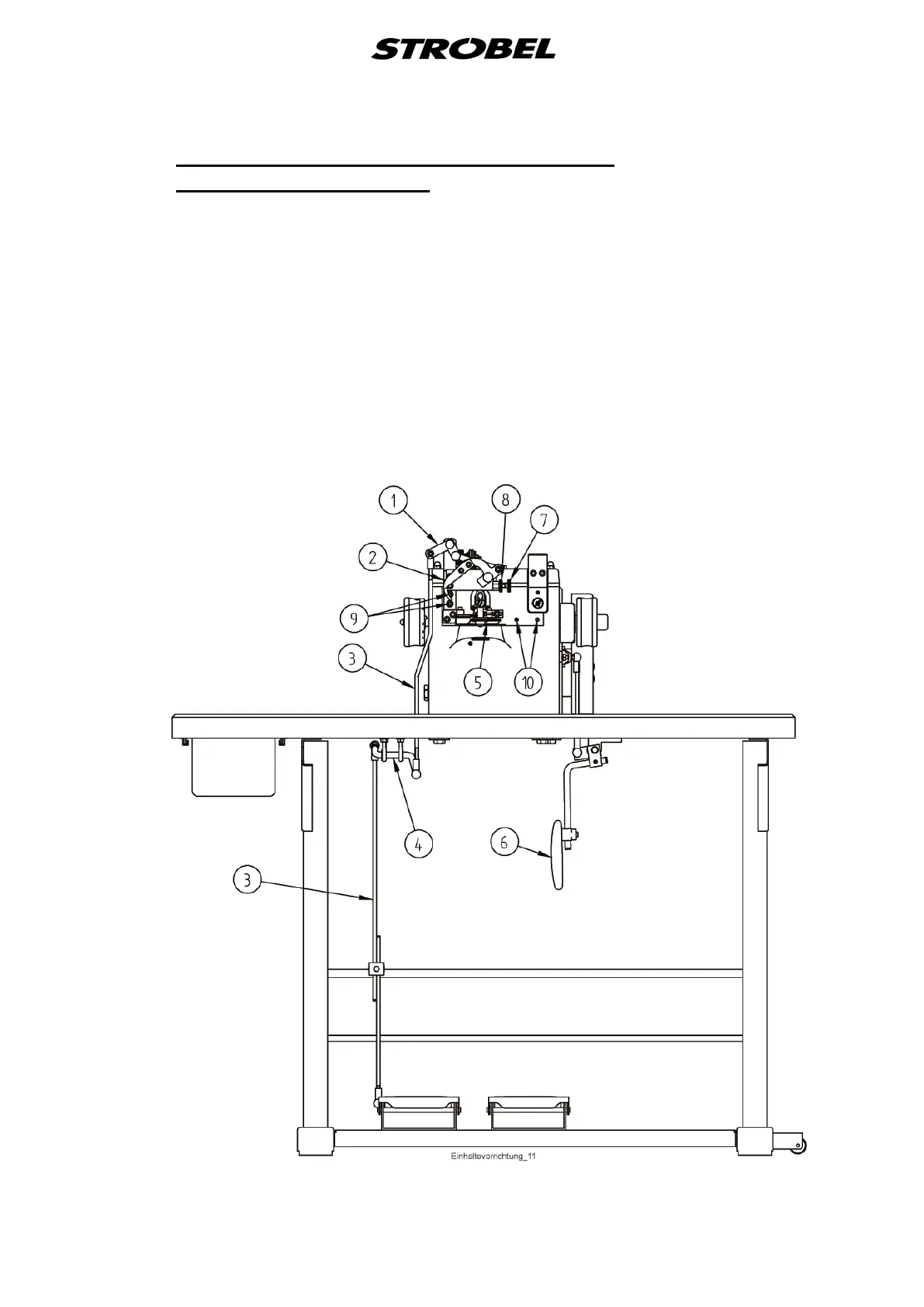

The gathering device EV (1) (Fig. 24) is attached to the machine housing with
two screws (9). There are two threads made in the housing for that.
When mounting the EV, make sure that after swivelling down the guide (2)
between the feed cups it comes to a stop about 1 mm under the plate edge and
about 5 – 6 mm to the right of the needle.
For a subsequent mounting of the EV, a ∅24 borehole needs to be made in the
tabletop for the rods (3) (see tabletop drawing in the operating instructions).
Fig. 24
