Strobel VEB100 Series - Adjusting the Cloth Retainer (Fig. 9)

23 MA_VEB100-2-4-5_A5-3_230123_en.doc

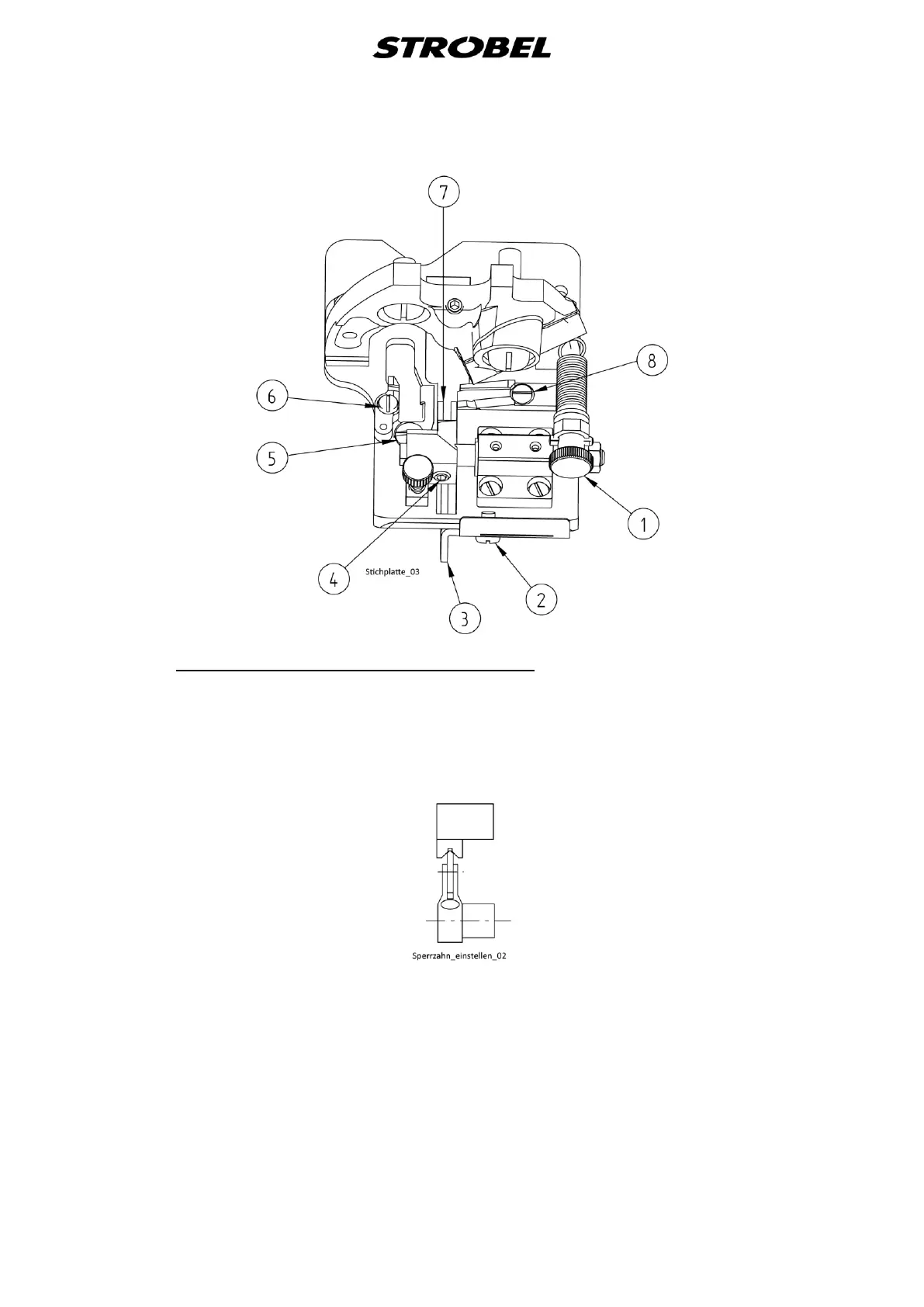

Fig. 8
3.1.5 Adjusting the cloth retainer (Fig. 9)
After replacing the stitch plate, check whether the cloth retainer (7) Fig. 8 lies centrally
on the plunger. This is particularly important for roof-shaped plungers/cloth retainers
to ensure that the material is optimally held during sewing.
Fig. 9
