3.7 Presser

A T T E N T I O N !

Switch off the machine electrically!

There are different plunger shapes - round and roof-shaped - available for the 103

series to guarantee the best quality for each sewing process.

Exception: Cl. VEB100-4.

3.7.1 Replacing the presser shaft (Fig. 17)

- Remove cloth support arm extension.

- Remove cover 112.0062.

- Release clamp screw (1) at lever (6).

- Release set collar (5) and pull out the plunger shaft.

Remounting in the reverse sequence.

Readjust the left feed plate (12N) (26 N Cl. VEB100-4).

Set the plunger shaft free of any play.

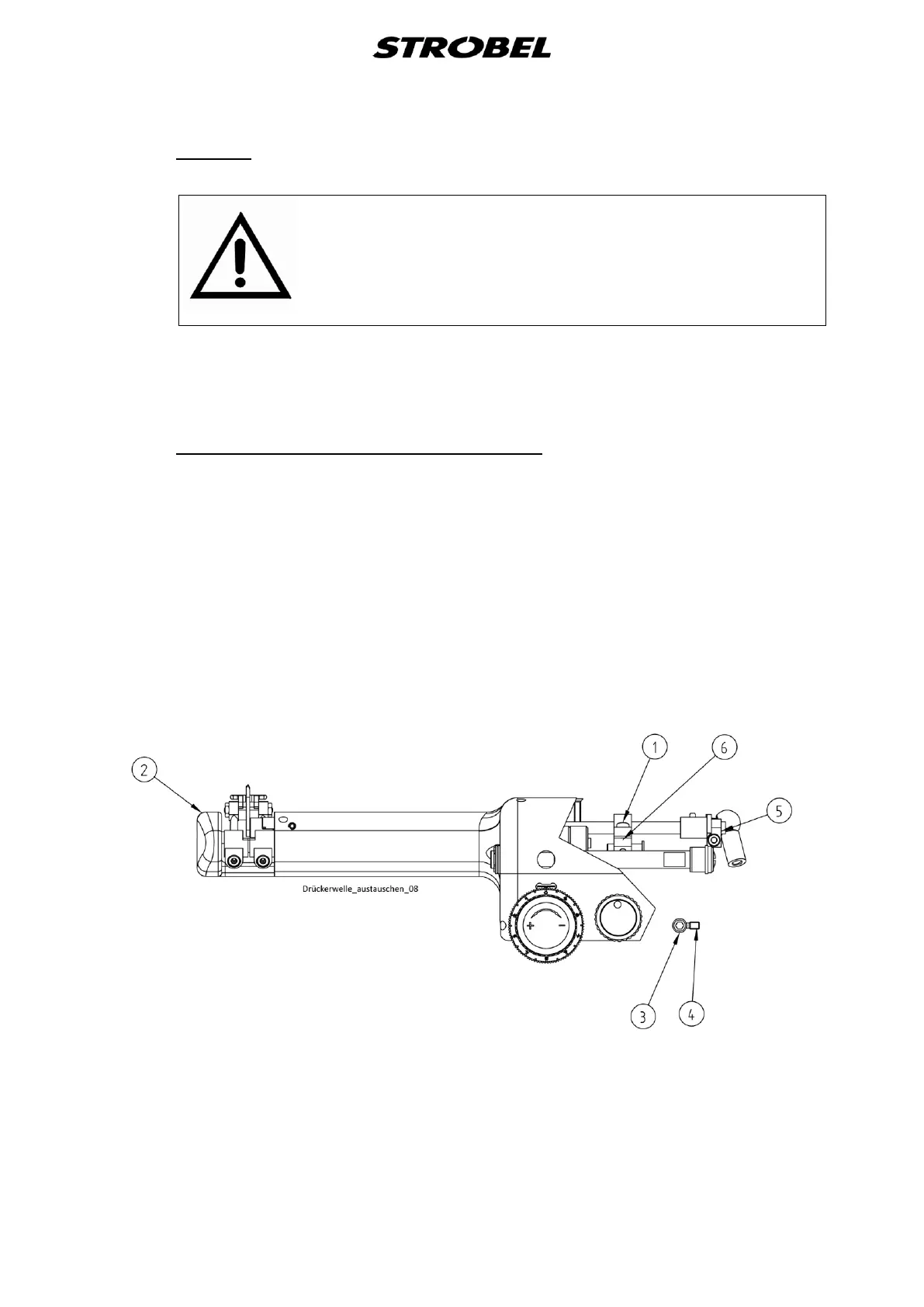

Fig. 17
