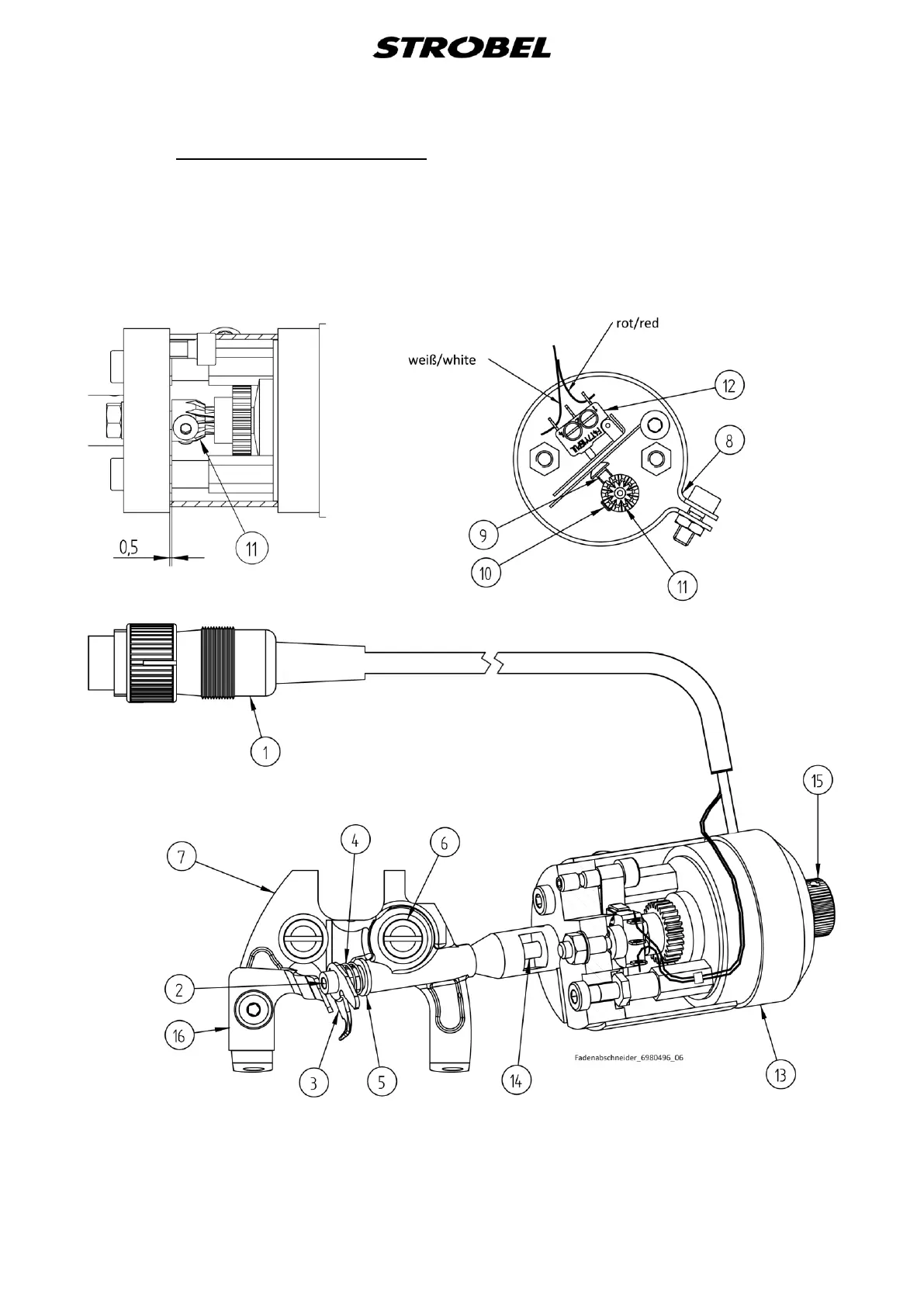

3.9 Thread trimmer (Fig. 22)
The blade of the thread trimmer is activated by a rotary magnet, to which an electric
release control system (microswitch) is connected. This prevents the machine from
starting when the blade is no longer in its inital position. Thus the release control
system prevents a possible collision between blade and looper.
Fig. 22
